Ball Joint - Front A-arm, 11mm

Ball Joint - Front A-arm, 11mm
  • Ball Joint - Front A-arm, 11mm
  • Ball Joint - Front A-arm, 11mm
  • Ball Joint - Front A-arm, 11mm
Product Number:
70A6220
Availability:
In Stock
Price:
$34.99 CAD


  Description

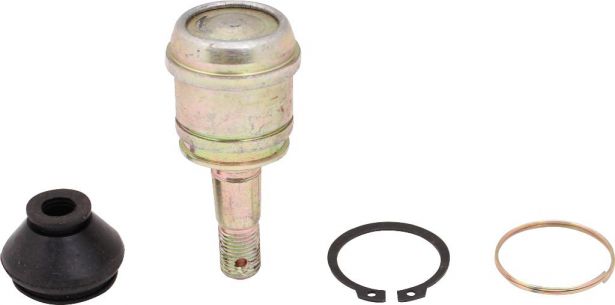

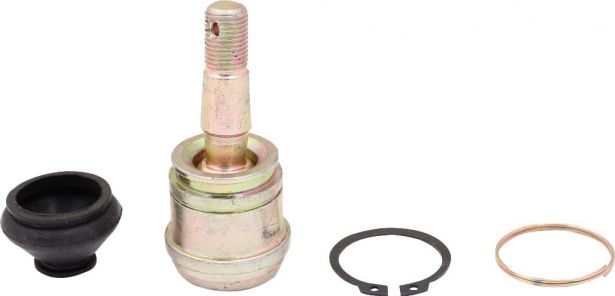

This ball joint is most commonly used for (but not limited to) the front A-arms on 50cc to 300cc ATVs, primarily 110cc, 125cc, 150cc and 250cc ATVs. Threaded Post approximately 11mm (approximate maximum outer thread diameter is 11.8mm and approximate minimum inside thread diameter is 10.8) with an 8cm total length. The core cylinder unit is approximately 32.5 mm in diameter (excluding the lip).
Ball Joint - Front A-arm, 11mm
Ball Joint - Front A-arm, 11mm
Ball Joint - Front A-arm, 11mm

These categories serve as labels for sorting products. See our FAQ for more details.

Parts

Tie Rods / Ball Joints

This part is not guaranteed to work with these machines. See our FAQ for more details.
