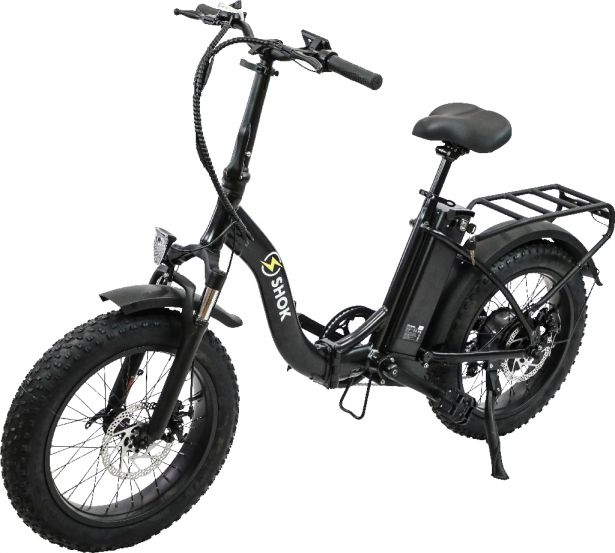

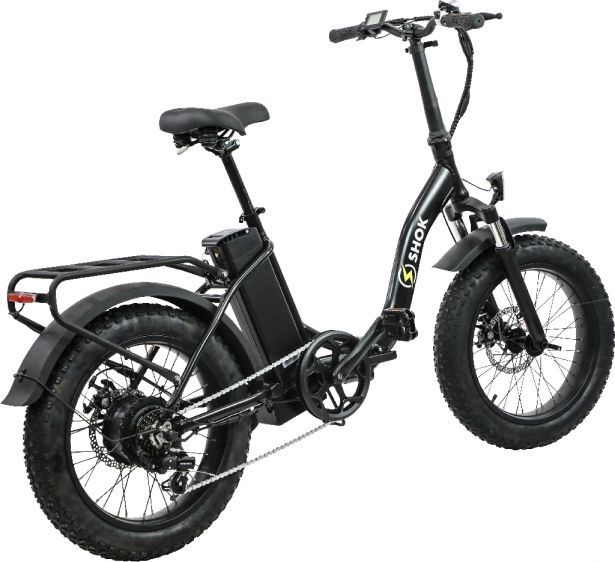

SHOK Pulsar - Folding Fat Tire Step Through Ebike 48V, 500W, 10.4Ah, 500Wh

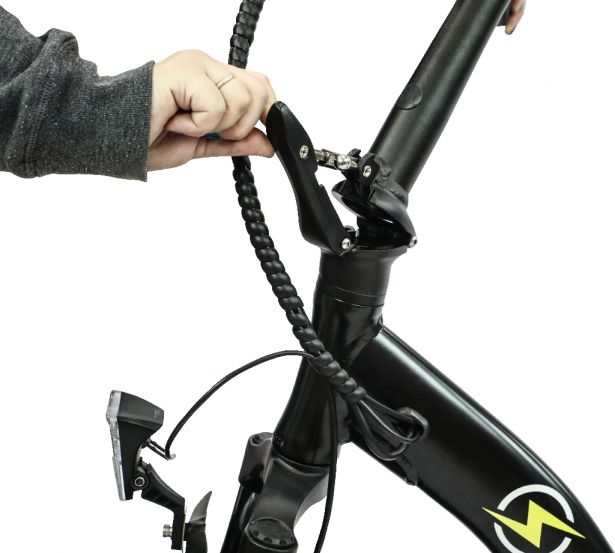

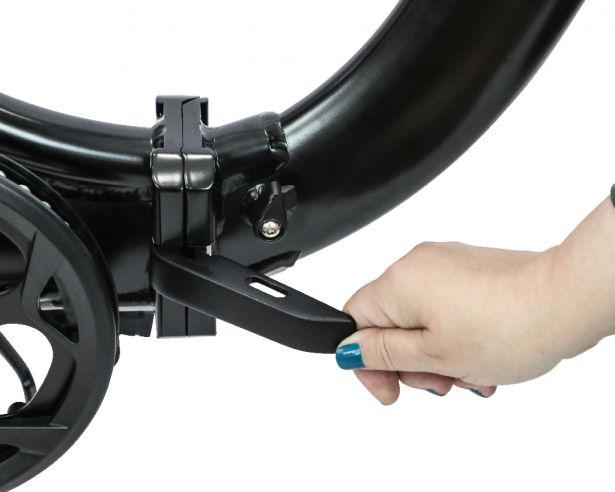

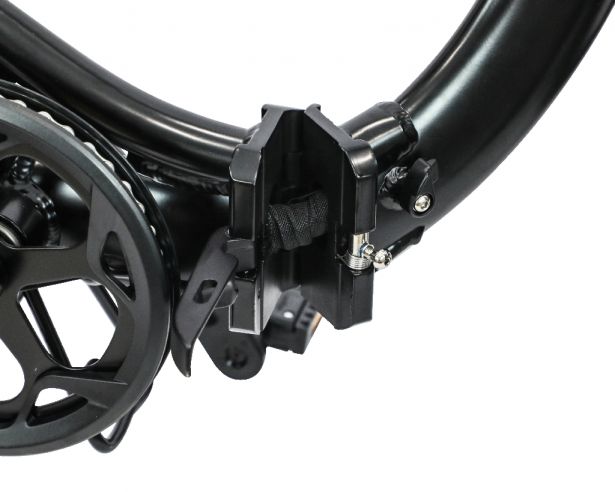

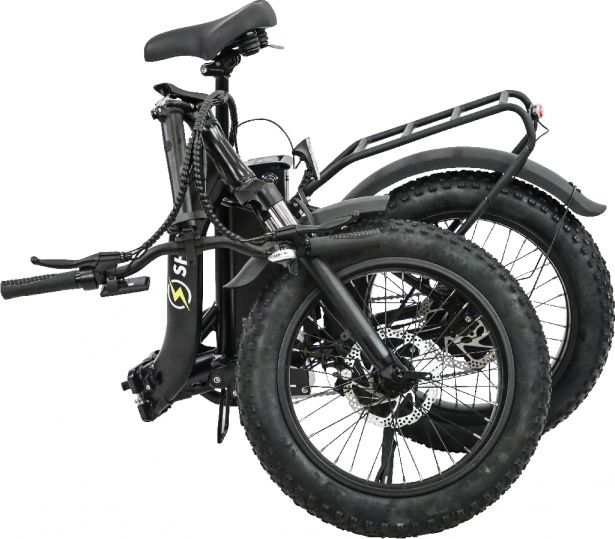

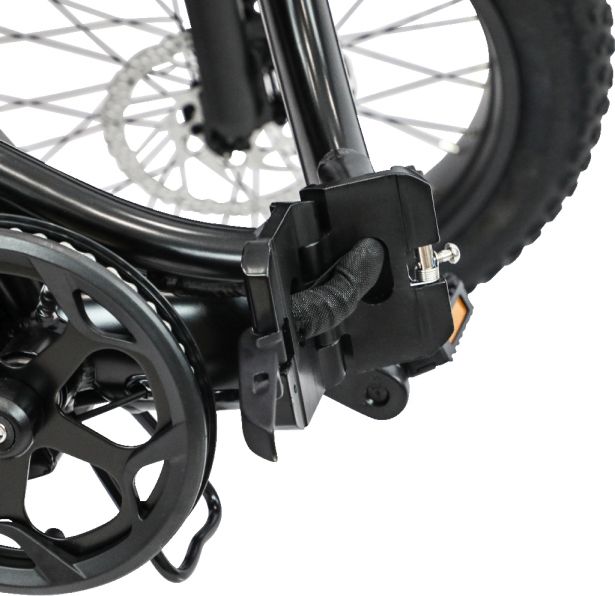

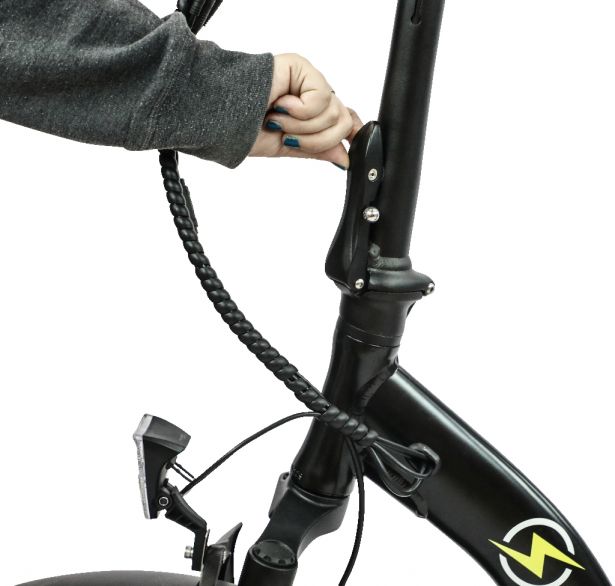

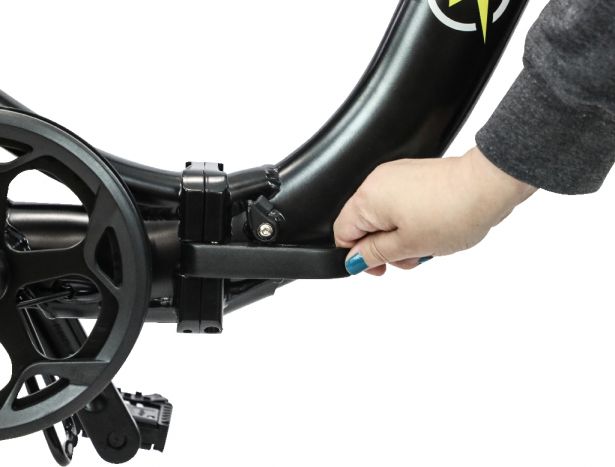

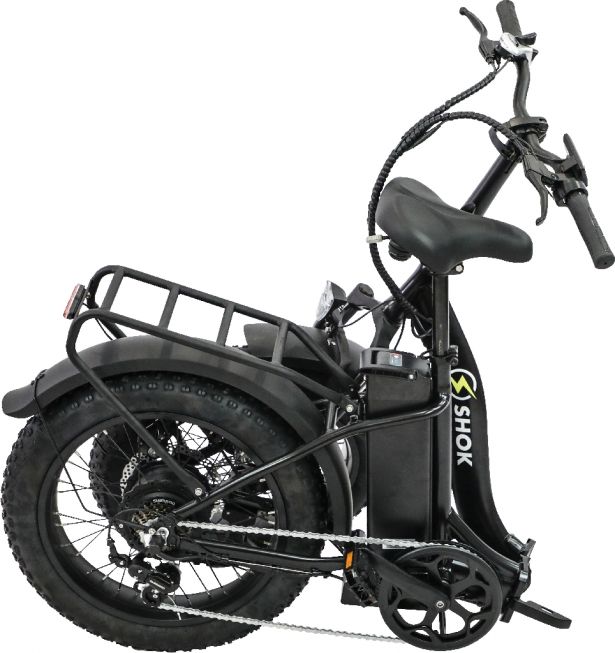

Introducing the SHOK Pulsar Folding 20" Fat Tire Step Through eBike, a versatile powerhouse built for all-terrain adventures and seamless urban commutes. Crafted around a step-through aluminum frame, the Pulsar ensures effortless accessibility and comfort, whether cruising through city streets or exploring rugged trails. Its innovative folding design allows for easy storage and transport, fitting neatly into car trunks or tight storage spaces.

Key Features:

• Powerful Motor and Advanced Battery: Featuring a robust 500W rear hub motor delivering 85N.m of torque, the SHOK Pulsar effortlessly conquers challenging terrain. Carefully balanced with weight distribution for enhanced stability on and off roads.
• Advanced Riding Technology: Enjoy flexible riding options with 5 levels of Pedal Assist, seamlessly integrating motor power during pedaling or using the thumb throttle for instant acceleration.
• Comfort and Handling: Designed with rider comfort in mind, the SHOK Pulsar includes a step-through aluminum frame for easy mounting and dismounting, accommodating riders of all heights. An advanced front suspension system absorbs shocks and vibrations, while its 20x4.0 fat tires provide exceptional grip and stability across varied terrains.
• Premium Build Quality: Crafted from lightweight yet durable aluminum alloy, the SHOK Pulsar's frame is built to endure the rigors of off-road adventures while maintaining agility and maneuverability.
• Integrated LCD Display: Monitor essential ride metrics such as speed, distance, battery level, and assist level with ease using the sleek LCD display conveniently mounted on the handlebars. Effortlessly adjust between pedal-assist modes to tailor your ride experience.
• Responsive Disc Brakes: Equipped with reliable front and rear disc brakes, the SHOK Pulsar ensures precise braking performance in all weather conditions, offering safety and control during descents.
• Enhanced Safety and Visibility: Ride confidently with a front light featuring automatic light sensing, enhancing visibility during low-light conditions and ensuring safe navigation.
• Gear System: Featuring Shimano 7-speed gears for precise gear shifting and optimal control, adapting seamlessly to varying landscapes and riding preferences.
• Enhanced Comfort and Ergonomics: The ergonomically designed seat and handlebar grips provide superior comfort for extended rides, while the adjustable seat height caters to riders of different statures.
• Versatile Design: Whether commuting, trail exploring, or embarking on weekend adventures, the SHOK Pulsar excels in diverse environments, making it the ultimate choice for riders seeking versatility and performance.

Technical Specifications:

Electrical

• Motor & Rear Wheel Assembly: 48V, 500W electric motor with hall sensor / motor armature sensor. High torque 20x4.0 profile fat motor with 175mm drop out
• Charger 48V (54.6V output), 2A (2000mA), DC2.1 port, Lithium Ion, UL/ULC Certified
• Controller: 48V, 20A, intelligent vector sine wave
• Electric Thumb Throttle Unit: 22mm/0.87in, Wuxing 130X universal 12-72V (12V, 24V, 36V, 48V, 60V, 72V), waterproof rated

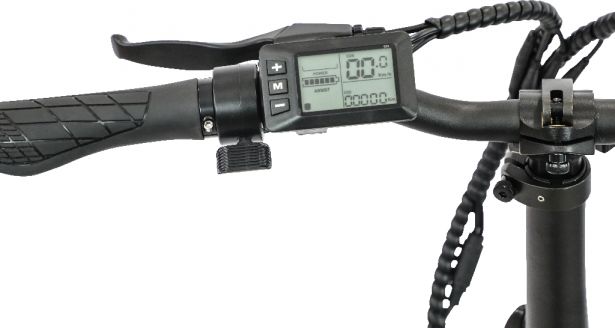

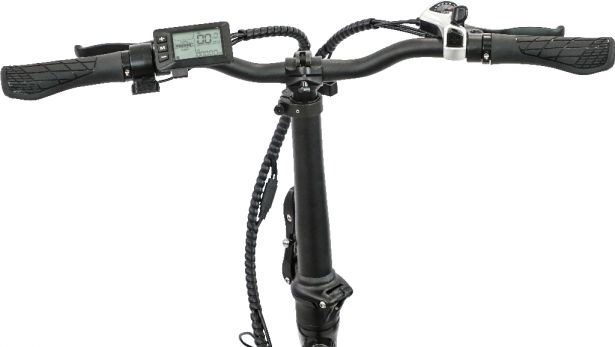

• LCD display / instrument panel: Left mount design, EN06 Profile. Size 48.1mm x 82.1mm x 12.5mm with approximately 2.0 inch screen. Supported UART communication type. Multiple functions - Speed/Distance/Power/Time Display/Headlight, On-Off/Walk, Mode/Settings. Wide working temperature range -20C to +60C. IP65 waterproof rating and CE/ROHS certified. 24V, 36V, 48V and 60V compatible.
• Battery Management System (BMS), 48V, 30A, continuous, for lithium ion battery

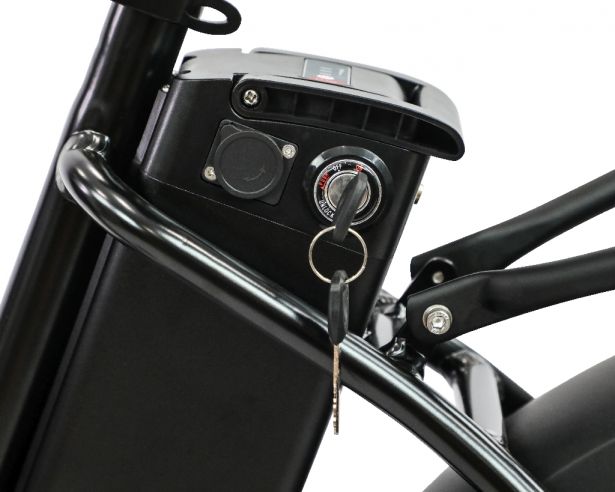

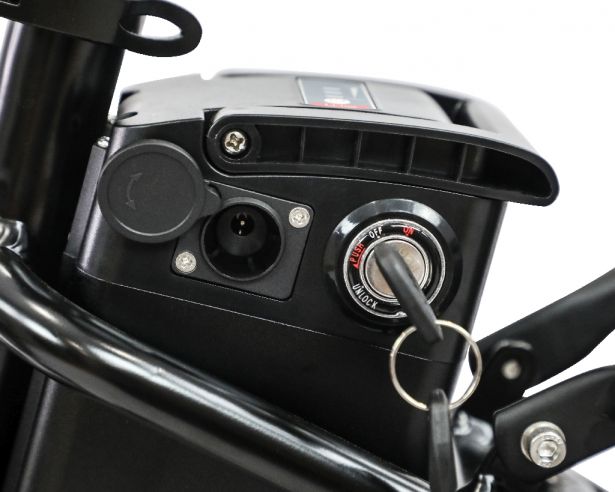

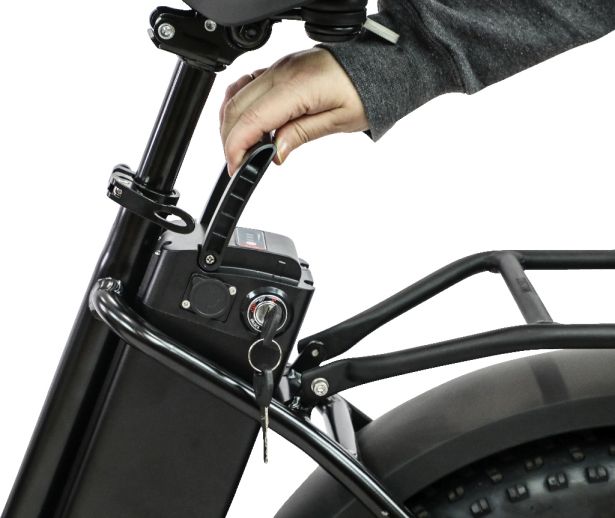

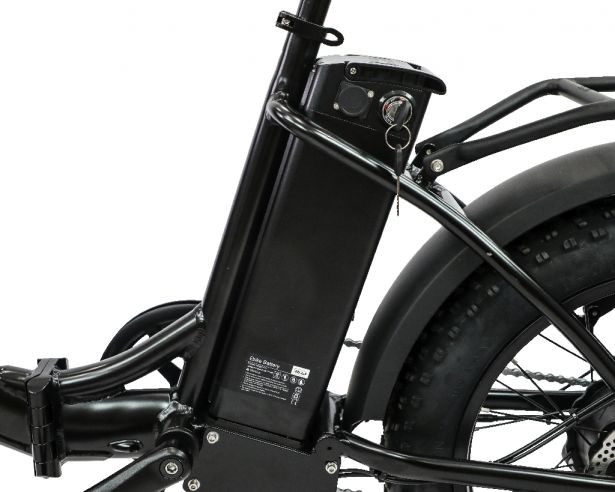

• Battery: Lithium Ion 48V, 10.4Ah, 500Wh battery, DC2.1 port profile.
• Front LED light / Headlight (Head Light): Site-Lite brand, HL1900 model
• Pedal assist sensor (PAS): Step frequency speed sensor, 150mm length
• Bus cable: 1T5 bus cable, 1200mm base cable with 4 way split. Total length from split is 100mm for display, 120mm for front brakes, 120mm for rear brakes, and 250mm for throttle



Mechanical

• Bottom Bracket: Steel threaded bottom bracket cartridge, Neco brand, B911 profile, 100mm core length with 164mm total length
• Freewheel: Shimano 7-speed multiple freewheel sprocket, 7 gear. AMFTZ5007428 (AMF-TZ5007428), MF-TZ500-7

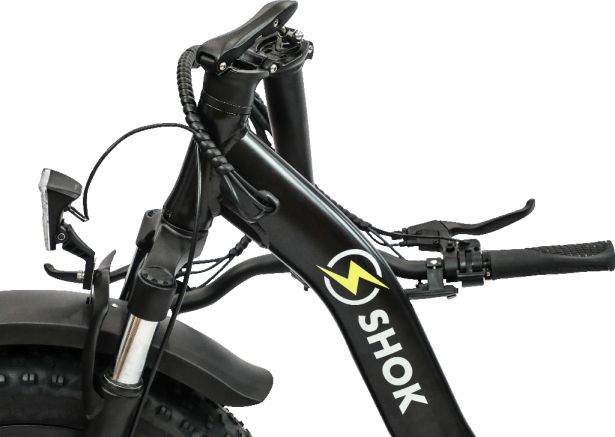

• Handlebars: Promax 6061 aluminum alloy, HB-T305 640L profile, 640mm length
• Handlebar Stem: Steering column tube, PROMAX brand, Al-Alloy 6061, FH05W profile
• Chain: KMC brand bicycle chain, Z7RB profile, 120 link, rust-proof
• Crankset: Chainset / chainwheel, PROWHEEL brand, PRO-548PP-3 48T x 165mm profile. Forged Aluminum AL-6061-T6 gears. Sand black finish
• Derailleur: Bicycle gear rear derailleur / shifter. Shimano brand, Tourney series, RD-FT35 profile, 7-speed derailleur

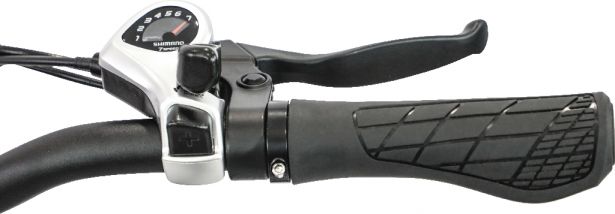

• Shifter: Rear gear set shifter, Shimano brand, SL-TX50-7R, right, 7-speed profile
• Gear shift cable: Rear shift cable, 1860mm total length, consisting of 1580mm section from shift lever to rear frame mount and 280mm section from frame mount to rear shifter
• Seat Post: Seat support stem/tube. Promax 6061 aluminum alloy, SP-114 profile, 27.2mm x 350mm
• Seat: Black leather, SR A054UE0 profile
• Seat Clamp: Seat post locking bracket, SZ-05 + QR-11B profile, 31.8mm clip diameter with M6 bolt at 55mm length

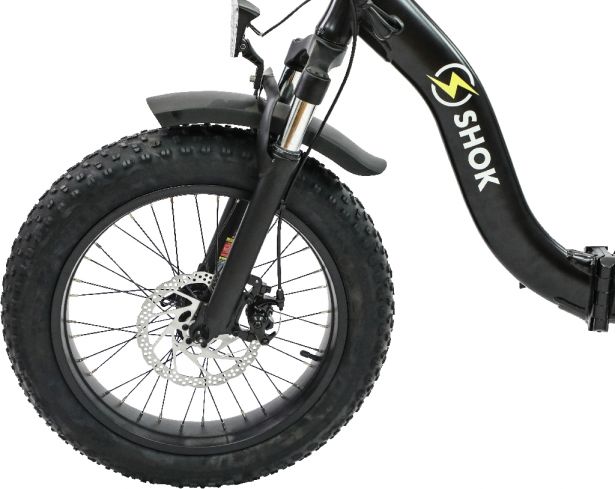

• Front fork suspension: Aluminum alloy 6061 mechanical shock absorbers, MOZO T-40 153L profile, 153mm length
• Headset bearings: Steering column bearing assembly, H185B profile (1-1/8 28.6mm x 44mm - 30mm x 44mm), height 11.5mm
• Hand brake lever / handlebar mounted brake handle: PC/ABS and aluminum Alloy, KB-039 profile, IP54/IP65 waterproof rating

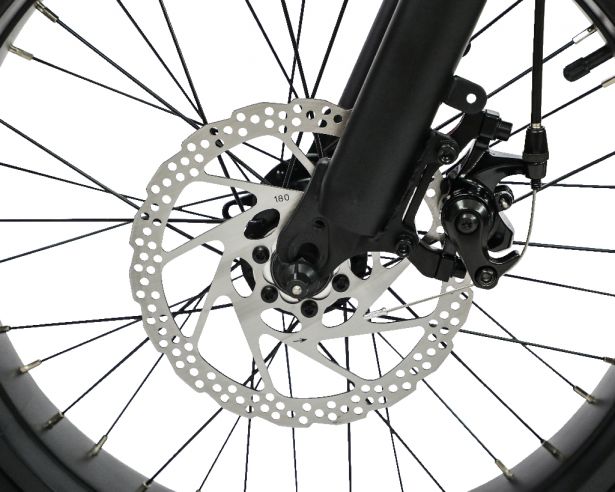

• Brake disc (disk): 180mm diameter
• Rear brake cable: 1950mm
• Front brake cable: 1000mm
• Kick stand (kickstand): 220mm-280mm XH355 profile
• Front Fender: Front mudguard wheel cover, plasticized P100 profile with fender brace
• Rear Fender: Rear mudguard wheel cover, plasticized P100 profile with fender brace
• Pedals: Aluminum alloy WELLGO brand foot pedals, F178 profile
• Hand Grips: Silicone handlebar grip set, ZN-037 profile
• Tires: All-season, all-weather, all-terrain Innova brand 20x4.0, , E-bike / Fat Bike / Fat Tire / Bicycle (Mountain Bike) tires
• Innertubes: Innova brand 20x4 E-bike / Fat Bike / Fat Tire / Bicycle (Mountain Bike) inner tubes (innertubes)

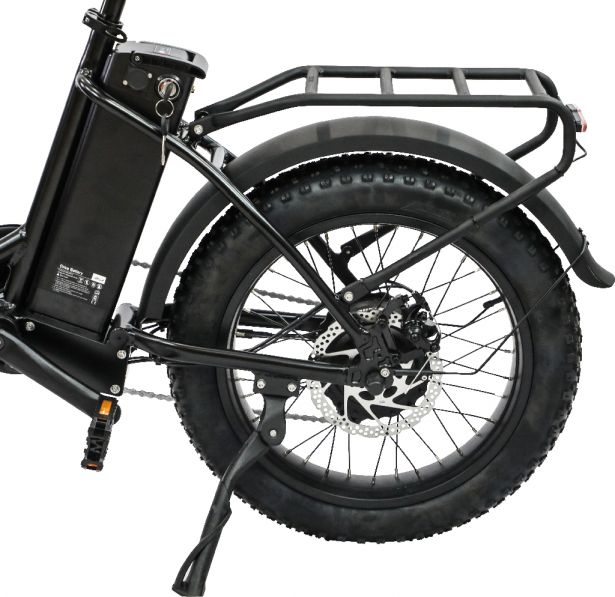

• Included: Rear Aluminum Alloy Carrie / Rack

Model Parameters

• Max Load Capacity: 250 lbs (136 kg)
• Max Speed: Up to 20 mph (32 km/h)
• Range: Up to 40 miles (64 km) per charge, depending on terrain and rider weight
• Charging Time: 4-6 hours

Why Choose the SHOK Pulsar eBike?

The SHOK Pulsar stands out as the ideal choice for riders seeking effortless accessibility and versatility. With its step-through aluminum frame and convenient folding capability, this eBike offers unparalleled ease of use, perfect for urban commuting and off-road adventures alike. Equipped with robust fat tires, it effortlessly transitions between various terrains, ensuring stability and traction wherever you ride. The solid structure includes a large profile rear rack for added utility, accommodating all your essentials on the go.

Get Ready to Ride!

Featuring renowned brand name parts and reliable support, the SHOK Pulsar combines clever design with lightweight construction, catering to a wide range of users and situations. Whether you're limited on space, hitting the road, or exploring remote campsites with your RV, the SHOK Pulsar is your dependable companion for every journey. Visit your local dealer to order yours today and embark on your next adventure with confidence!
