Cylinder Kit - Honda, Rancher, TRX350, 350cc, ATV

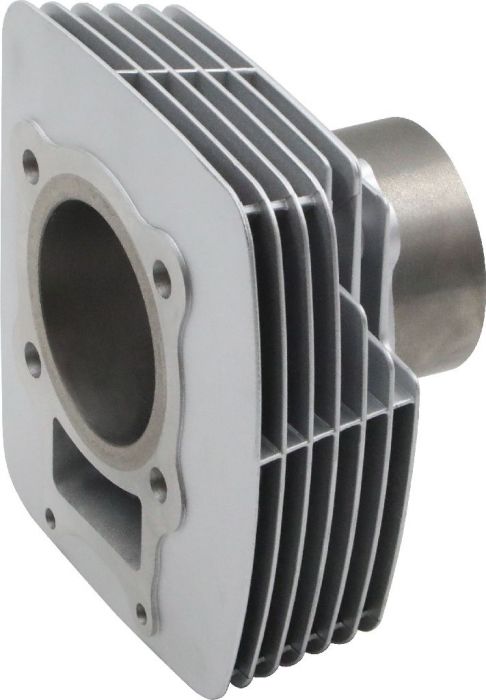

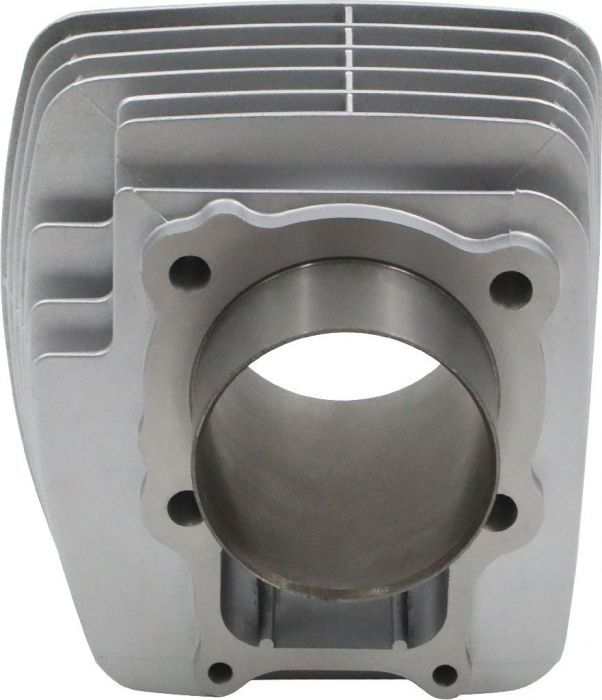

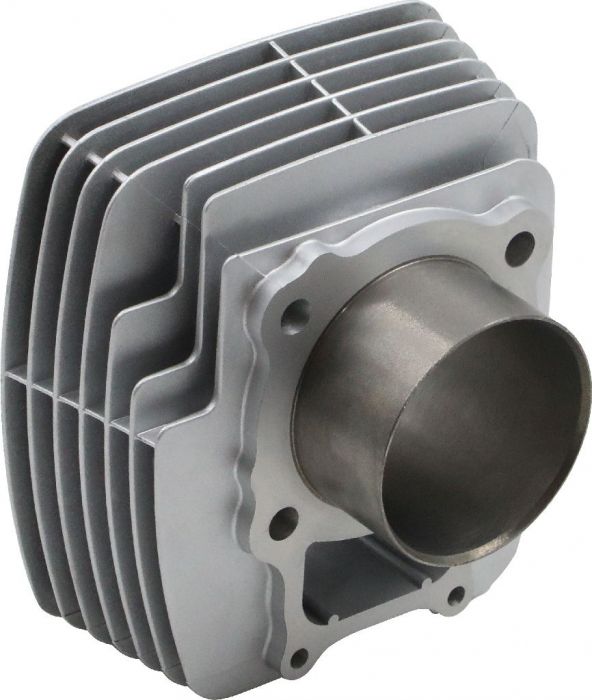

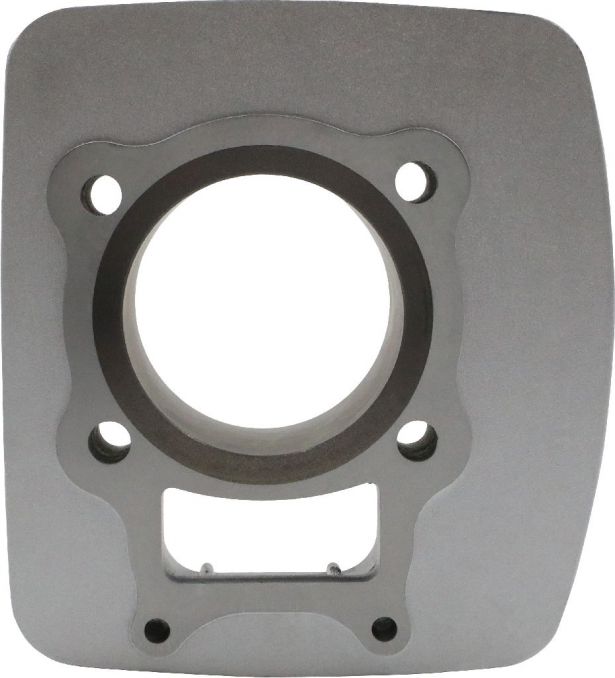

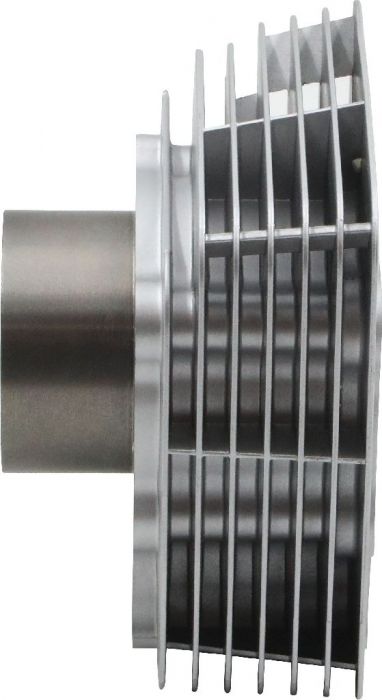

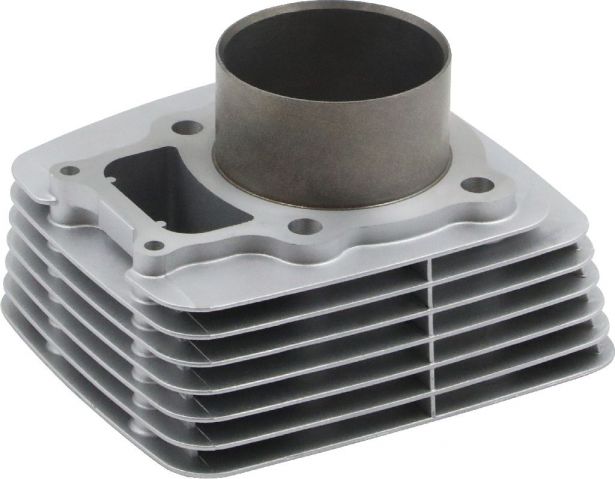

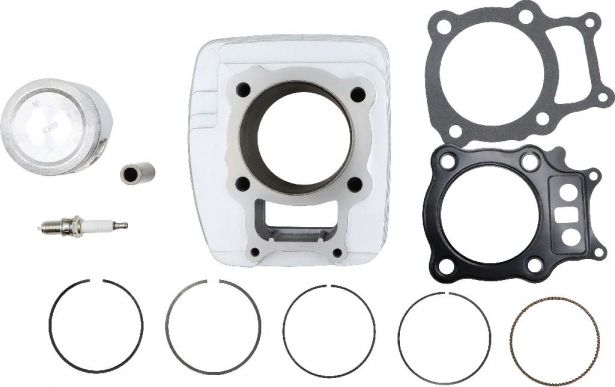

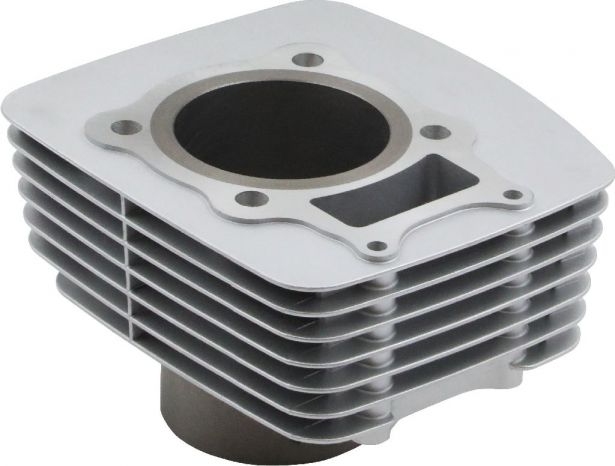

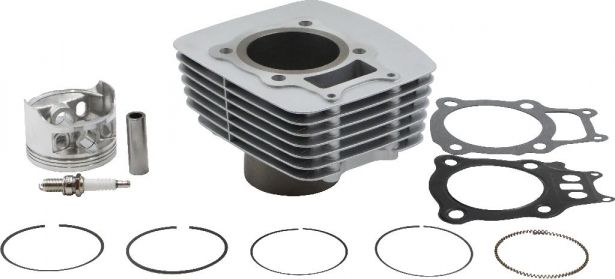

This cylinder kit includes cylinder, piston, piston rings, wrist pin / piston pin, circlips (2), spark plug, head gasket, and base gasket. The various parts are typically found in different diagrams of several part manuals with the cylinder and base gasket in the Cylinder section, the piston ring kit (piston, piston rings, wristpin / piston pin, circlips (2)) in Crankcase – Piston or Crankshaft & Piston, and the cylinder head gasket and spark plug from the Cylinder Head section. Commonly used for but not limited to 350cc engines. It is most popularly known for its use in Honda TRX 350FA Rancher (2000-2006) / TRX 350FM Rancher (2000-2006) / TRX 350TE Rancher (2000-2006) / TRX 350TM Rancher (2000-2006), as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Includes Part Numbers:

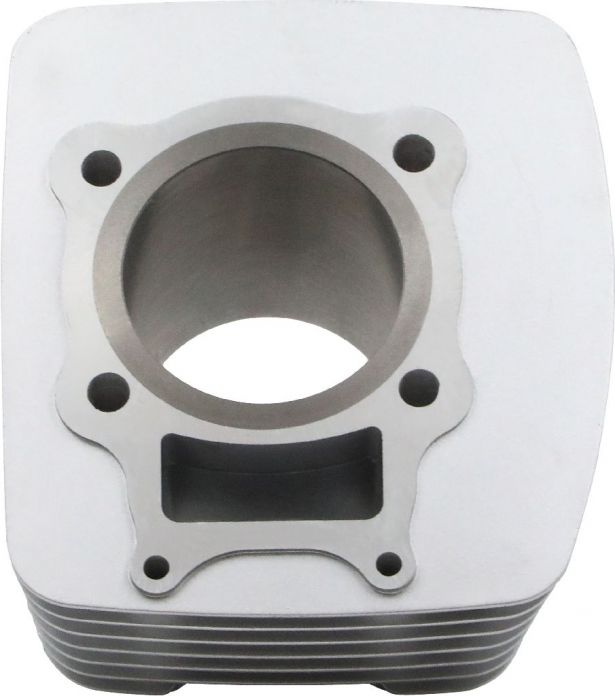

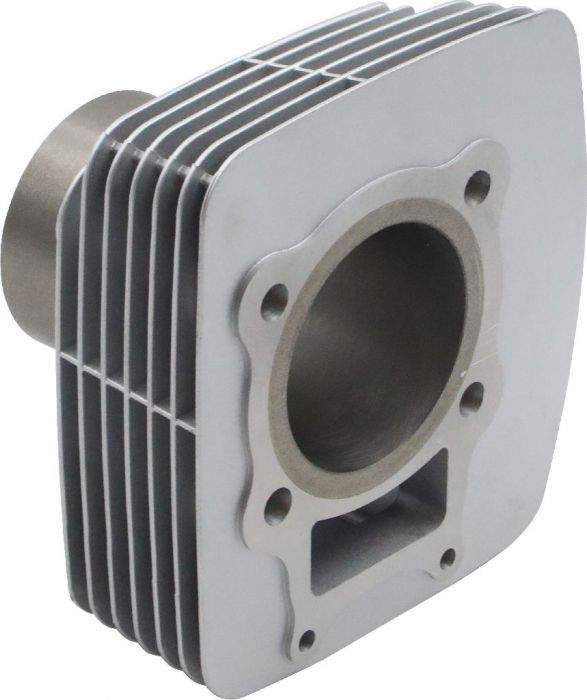

• 12100-HN5-670 “CYLINDER”
• 13010-HN5-671 “RING SET, PISTON (STD)”
• 13101-HN5-670 “PISTON”
• 13111-HC0-000 “PIN, PISTON”
• 13112-HN5-670 “CLIP, PISTON PIN (17MM)
• 12251-HN5-671 ”GASKET, CYLINDER HEAD”
• 98069-57916 “PLUG, SPARK (DPR7EA-9) NGK
• 12191-HN5-670 “GASKET, CYLINDER”

Approximate Dimensions:

• Cylinder Bore and Stroke: 78.50mm x 68.00 mm (3.09” x 2.68”)
• Cylinder Displacement: 329cc
• Cylinder Compression: 8:8:1
