Intake - 34mm, CF Moto, Hammerhead, Chironex, CF188, 500cc, ATV, UTV

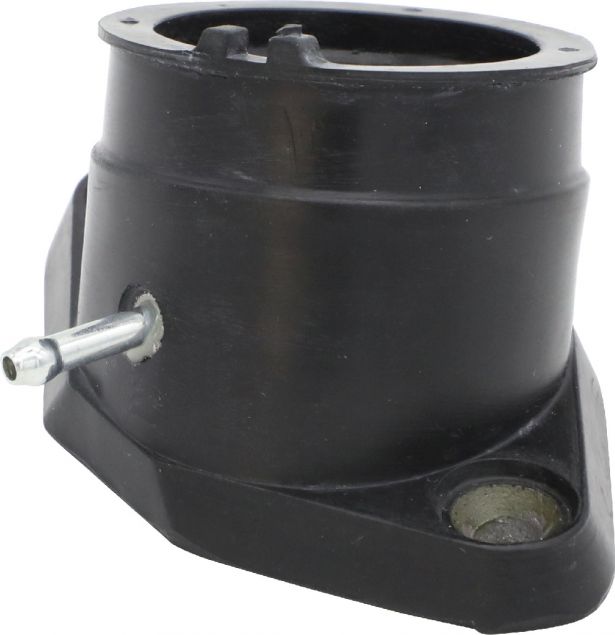

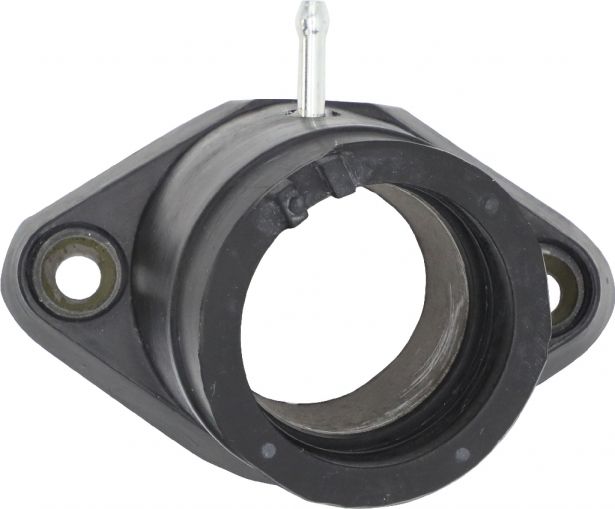

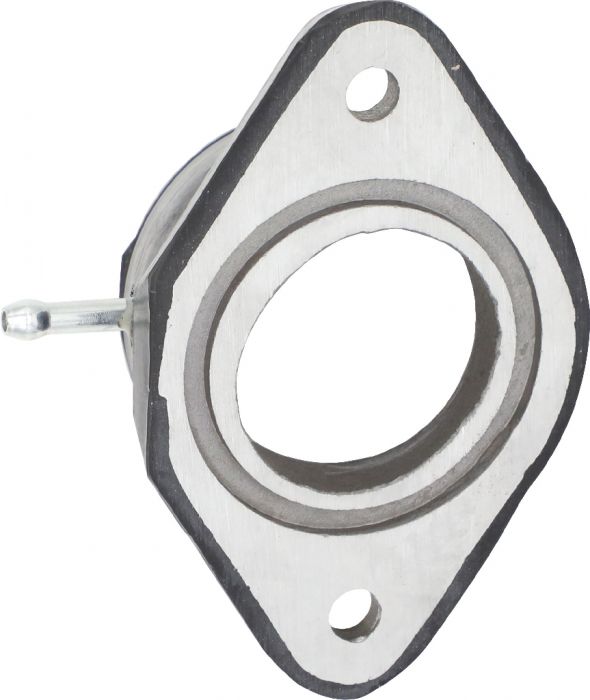

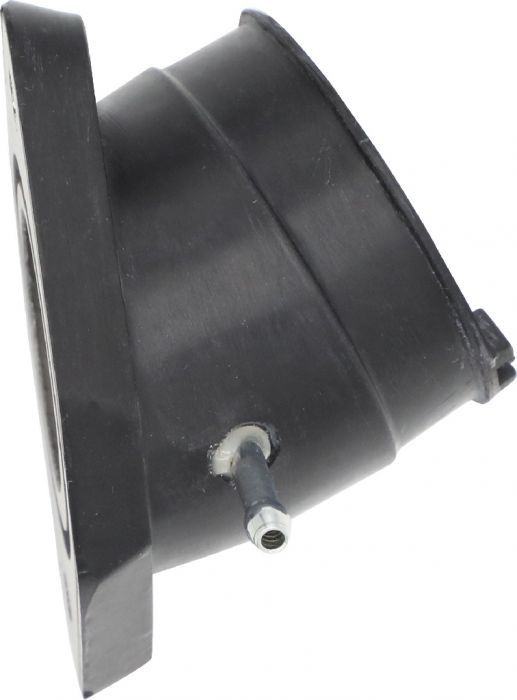

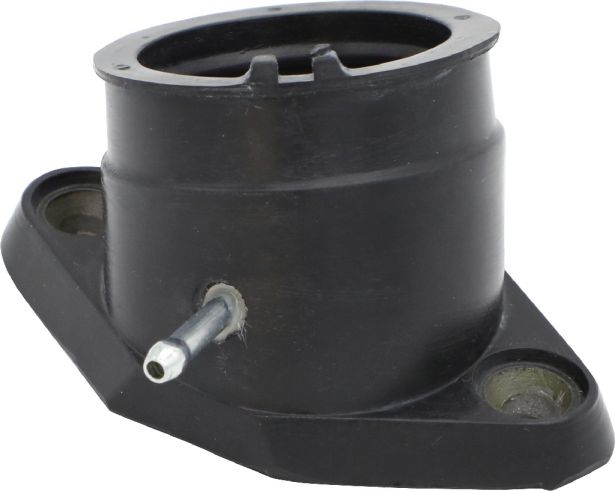

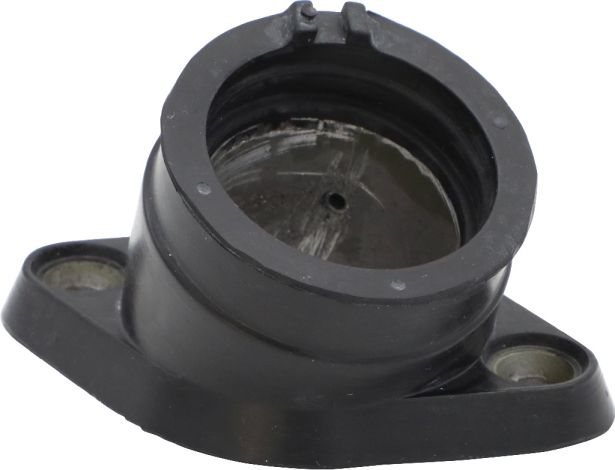

This intake manifold (aka joint carburetor) is typically found in Cylinder Head or Cylinder Head Sub Assembly section of several part manuals. Commonly used for but not limited to CF188 / 500cc engines. It is most popularly known for its use in CF Moto CF188 / CF188-A / CF188-C / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-A CForce X5 / CF500D / CF500-5A X500 / Rancher 500 UForce 500 UTV / Terralander 500 CForce 500 / CF500-5 CF500 X500 SWB / CF500 Atlas / CF500 XL ONE / CForce 500 ONE / CF Moto X5 Classic (CF500-X5) / CF500 & X500 SWB, Diamo Adventure 600, GOES 520 MAX / 520 UTX, Hammerhead Off-Road Titan 500, Powermax Chase 500 & 500XL, Diamo Adventure ATV, Chironex Spartan 500 / Komodo 500, Explorer Atlas 500 / Atlas 500 2x4 COMPACT / Atlas 500 4X4 XL / Atlas 500 4x4 EDITION / Everest 500 4X4 XL ATV / Grumbler 500, Journeyman Gladiator RX510 ATV / Gladiator UTV 530 / Gladiator X5 / X5-A Valex ATV, Quadzilla Terrain 500 / Rl500 Buggy / 500ES Terrain / 500ES LWB / 500ES SWB, and WT Motors Ricambi Alaska WT500 / Ram WT500, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions:

• Outer diameter / Intake Rubber Side: 40mm (1.57”)
• Inner Diameter / Intake Metal Side: 34mm (1.34”)
• Mounting holes (center to center): 70mm (2.78”)

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0180-022900, CF188-022900 “JOINT, CARBURETOR” or “JOINT”
• GOES Part Number: 0180-022900 “JOINT, CARBURETOR”
• WT Motors Part Numbers: “JOINT, CARBURETOR” within the set QN5001075K “KIT JOINT CARBURATOR”, AL50010620 “JOINT, CARBURETOR”
• Chironex Part Number: CF188-022900 “JOINT, CARBURETOR”
• Hammerhead Part Number: CF188-022900 “JOINT, CARBURETOR”
• Explorer Part Number: CF188-022900 “JOINT, CARBURETOR”
• Powermax Part Number: CF188-022900 “JOINT, CARBURETOR”
• Diamo Part Number: 08-038-3614 “JOINT, CARBURETOR”
• Journeyman Part Number: 0180-022900 “JOINT, CARBURETOR”
• Quadzilla Part Number: 0180-022900 “JOINT, CARBURETOR” or CARBURATOR CONNECTING SEAT FULL ASSEMBLY”
