Description

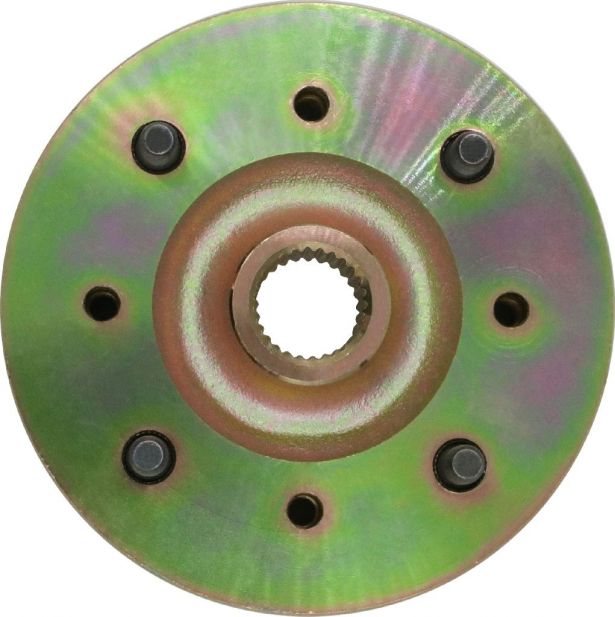

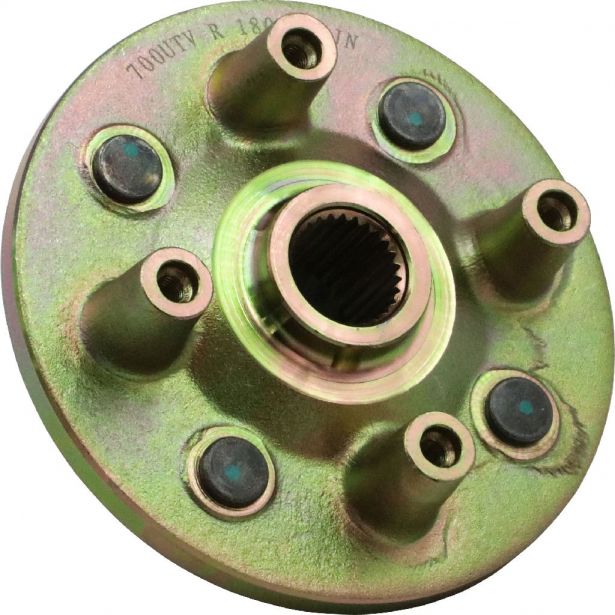

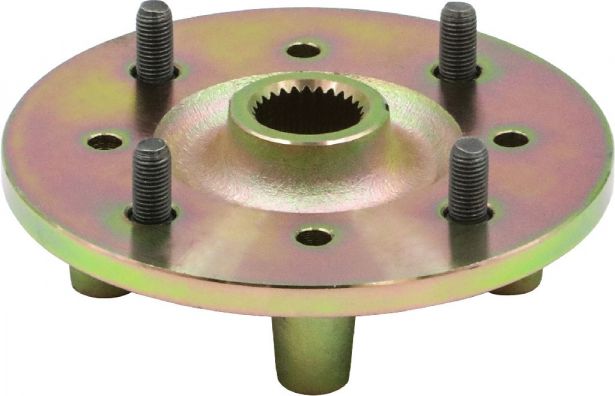

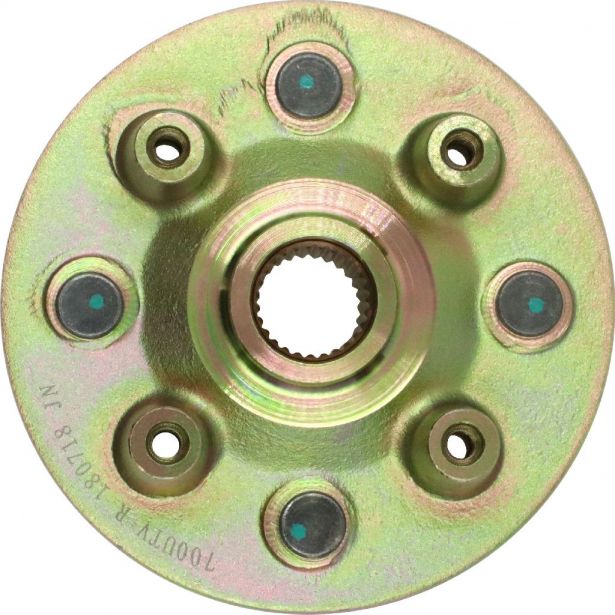

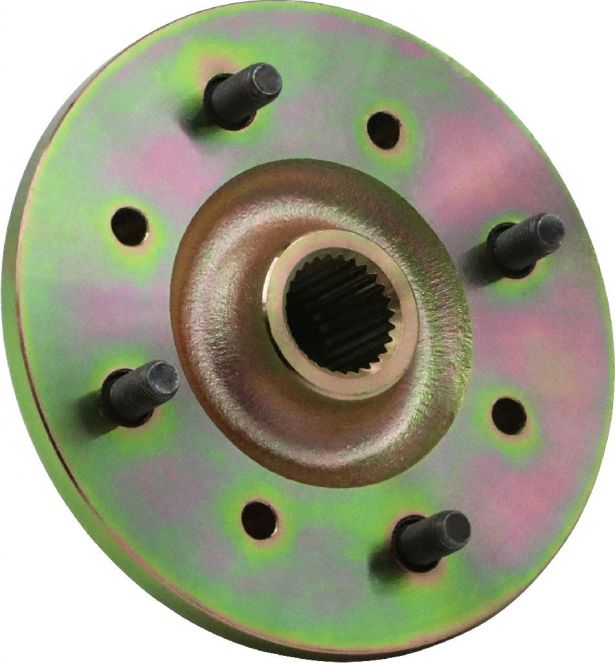

Front axle hub. Commonly used for (but not limited to) 700cc engines, such as the Hisun 700cc 4x4 UTVs, as well as many other clones, rebrands and similar displacement machines.
These machines are commonly manufactured by Chongqing Huansong Industries (Group) Co., Ltd. and distributed by a range of exporters, importers and distributors under such brands as: Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.
Common Hisun model names are primarily listed as variations of "Hisun 700cc UTV" and "Hisun HS700UTV". Common listed Hisun wheel hub part number is 62310-115-0000 and ERP part number is 62310-115-0000. Also applies to some other variations of Hisun models.
Common Nordik model names are primarily listed "Tornado 700cc UTV". Common listed Nordik wheel hub part number is P115N00461100000. Also applies to some other variations of Nordik models.
- Outside Diameter: 154mm
- Bolt Stud Height: 52mm
- Bolt Stud Spacing (centre-centre): 78mm
- Bolt Stud Spacing (centre-centre diagonal): 110mm
- Bolt Stud: M10
- Rotor Mounting Holes: 8mm
- Rotor Mounting Hole Spacing (across): 87mm (centre to centre)
- Rotor Mounting Hole Spacing (side by side): 62mm (centre to centre)
- Axle Shaft Diameter: 27.4mm
- 62310-115-0000
