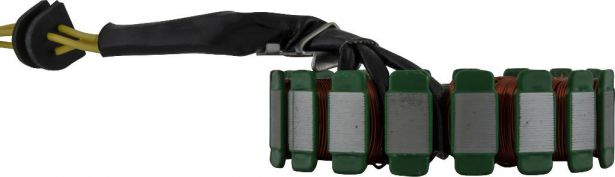

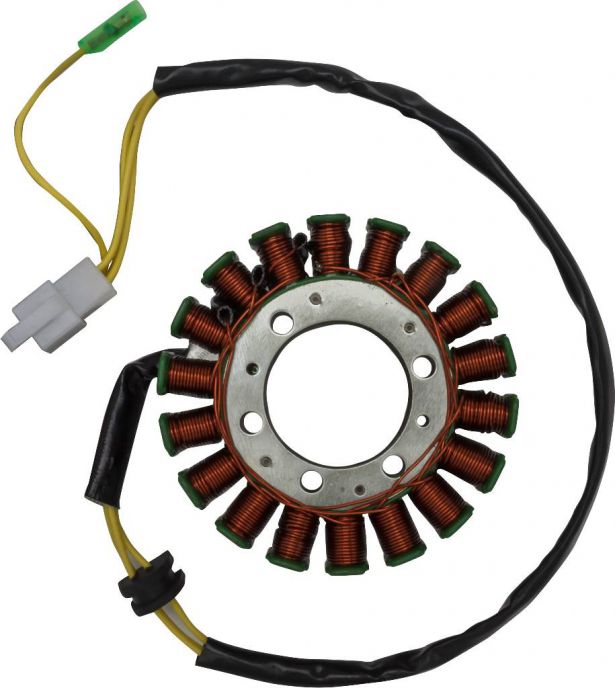

Stator - Magneto Coil, 18 Coils, 3 Wires, Honda, CF Moto, Hammerhead, Baja, 172MM, GY6, 250cc

This stator / magneto coil, 18G (18 coils, 3-wire) is typically found in Crankshaft Assy & Piston / Flywheels / Magngeo Comp. / Magnetor Assy / Stator and Flywheel / Generator section in several part manuals. Commonly used for but not limited to 3 phase liquid cooled CN250 / CF250 / GY6-250 / 250cc engines. It is most popularly known for its use in Honda Helix / Spazio / Fusion CN250, CF Moto 172MM / 172MM-A / 172MM-B / 172MM-C / V3 / V5 / CF250T-5A, Baja Reaction 250 / BR250 / Dune 250 / DN250, Hammerhead 250ss / GT250 / GTS250 / Twister UM250IIR, Tank Sports Touring DE (TK250T-2) 250, Lance Powersports Duke Touring 250, Roketa Bali 250 / GK-06 / GK-13 (KTX-250W)(L5G) / GK-19 (KTB-250W)(L5C), Joyner 250 / Sand Viper 250cc / Viper JNSZ250DN / Viper 250 (SZ250DI) / Dirt Devil 250 (SZ250DS) / Dirt Devil (SZ250DL), SunL SLGK-250-2A / SL250-2 / XF250-2A / XF250-2AR, Jonway Master 250cc, Diamo Wolverine XF250-2A-2AR, QLink Legacy 250 / Sapero 250 / Commuter 250, Kinroad 250cc XT250GK-2 / XT250GK-7, NST, BMS, Blades XTX 250, Dazon Raider 250, and Gio Bikes 250GT as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate dimensions:

• Outside Diameter: 103mm (4.06”)
• Centre Hole Diameter: 42.1mm (1.66”)
• Bolt Hole: 6.4mm (0.25”)

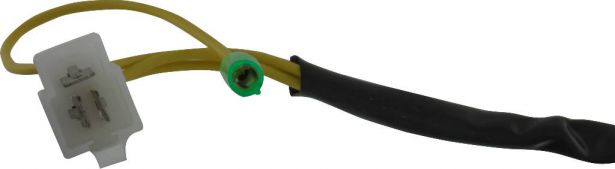

• Harness Length: 530mm (20.87”)
• Number of Coils: 18

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0110-032000, 172MM-032000 “COIL ASSEMBLY, STARTER”
• Baja Reaction 250 (2-seat) Part Number: BR250-395 “STATOR”
• Baja Dune 250 Part Number: DN250-560 “STATOR”
• Joyner Sand Viper 250cc Part Number: 172MM-032000 “STATOR UNIT” or “COIL ASSEMBLY, STARTER” or “STATOR UNIT”
• Joyner Dirt Devil 250cc Part Number: SZ15200008 “STATOR, ASSY”
• Hammerhead 250 Part Number: 172MM-032000 “STATOR”
• Kinroad 250 Part Number: 31120-SCC0-0000 “STATOR COMP”
• Roketa GK-06 Part Number: GK-06-250-3-47 “STATOR”
• Roketa GK-13 Part Number: GK-13-250-03-24-10 “STATOR”
• Roketa GK-19 Part Number: GK-19-250-03-66 “STATOR”
• Generic OEM Part / Jonway Part Number: YYSLL2501302 “MAGNETO COIL, (STATOR)”
• SunL and Diamo Part Number: XF172MM-1051200” “STATOR, COMP.”
• JM Star Part Number: YYSLL2501302 “MAGNETO COIL, (STATOR)”

Associated Parts:

• 30A9524 Flywheel (Magneto Cylinder)
• 30A9425 Stator Pick Up / Flywheel Pick-Up Sensor
