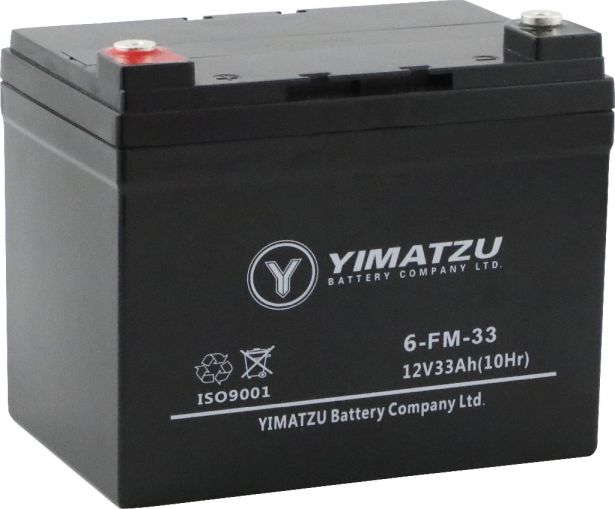

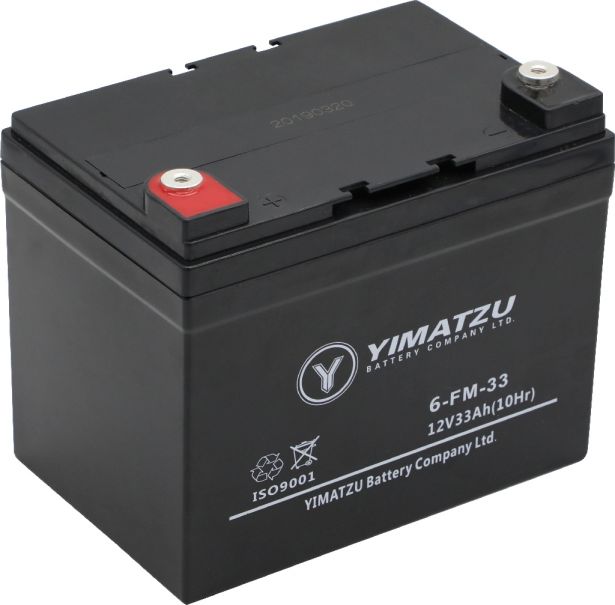

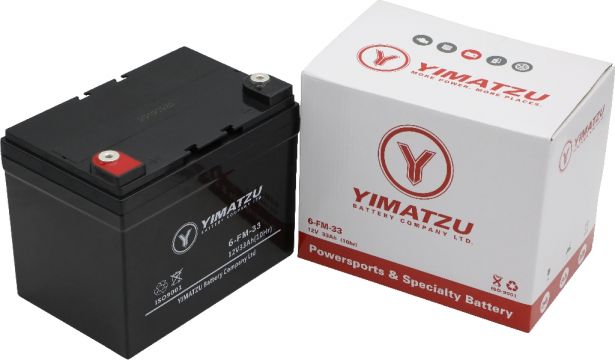

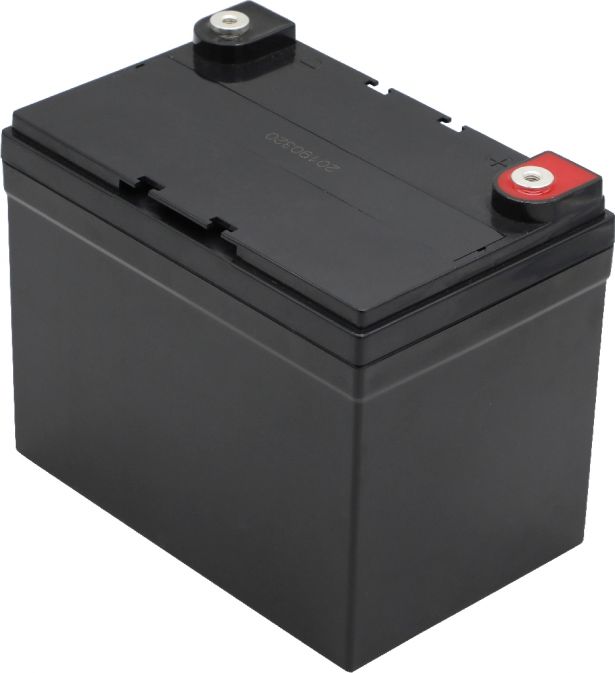

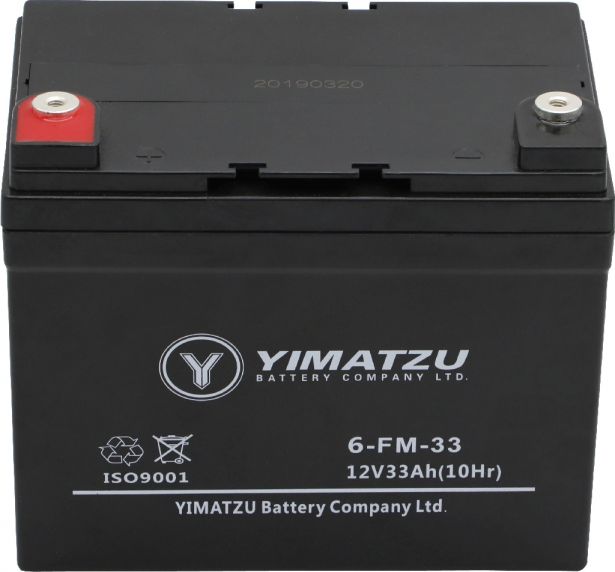

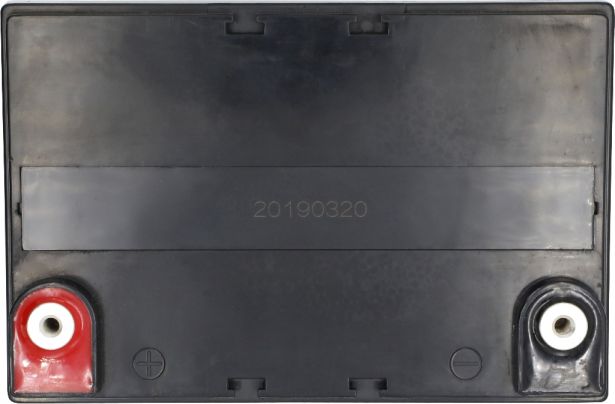

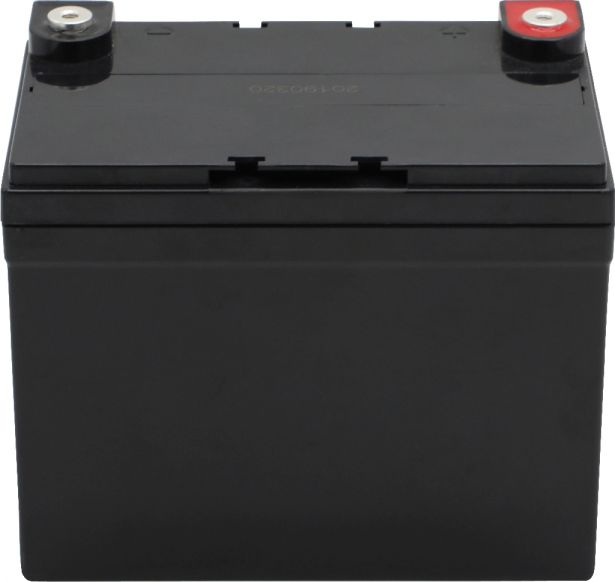

Battery - EV12330 / 6-DZM-33 / 6-FM-33, Gel AGM, 12V 33AH, Yimatzu Brand
This is a Yimatzu brand 6-DZM-33 (aka 6-FM-33) series Sealed Lead Acid (SLA), AGM class, GEL class, 12V, 33ah battery. This is the highest grade of DZM series battery which Yimatzu produces and continues to rank as the top performing DZM series battery in the North American marketplace.
Yimatzu GEL technology provides a safer battery with superior deep cycle characteristics; increased cycle length and battery life-span. Yimatzu GEL impact and vibration dampening properties also increase battery durability while providing superior resistance to temperature fluctuations/extremes.
Yimatzu AGM (Absorbent Glass Mat) technology further introduces the advantage of suspending the electrolyte within an internal glass mat structure, significantly reducing risk of vapour leak and additionally increasing both total life span as well as the range of each individual cycle.
It is the combination of these two technology types along with industry leading manufacturing systems which allow Yimatzu to produce a superior battery at lower cost.
This 6-DZM-33 battery type is very common within the powersport, transportation and toy industries. Often (though not exclusively) used for on-road scooters/mopeds, mobility scooters/electric wheelchairs, as well as a wide assortment of electric ATVs, dirt bikes and other powersports, mobility or toy products in 12 volt intervals (12V, 24V, 36V, 48V, 60V, 72V, 84V and 96V primarily).
- Length: 19.2cm
- Width: 13cm
- Height: 16.8cm
- Terminals (centre to centre): 15.5cm
