Brake Rotor - 6 Bolt 170mm 45mm Brake Disc, 400cc, Hisun, UTV

Brake Rotor - 6 Bolt 170mm 45mm Brake Disc, 400cc, Hisun, UTV

Product Number:
90A2043
Availability:
In Stock
Price:
$54.39 USD


  Description

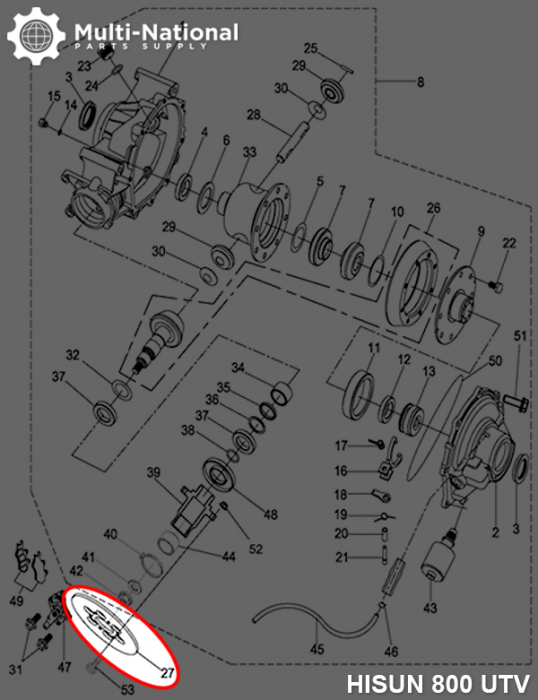

Disc brake rotor. Made from hardened, corrosion resistant steel. Commonly used for (but not limited to) 400cc engines, such as the Hisun 400cc UTVs, as well as many other clones, rebrands and similar displacement machines.

These machines are commonly manufactured by Chongqing Huansong Industries (Group) Co., Ltd. and distributed by a range of exporters, importers and distributors under such brands as: Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.

Common Hisun model names are primarily listed as variations of "Hisun 400cc UTV" and "Hisun HS400UTV. Common listed Hisun brake rotor part number is 41201-115-0000 and ERP part number is 41201-115-0000. Also applies to some other variations of Hisun models.

Common Nordik model names are primarily listed "Tornado 400cc UTV". Common listed Nordik brake rotor part number is 41201-115-0000 and ERP part number is 41201-115-0000. Also applies to some other variations of Nordik models.

Common Powermax model names are primarily listed as "Powermax Renegade 400 UTV". Common listed Powermax brake rotor part number is 41201-115-0000 and ERP part number is 41201-115-0000. Also applies to some other variations of Powermax models.

  • Manufacturer PN: 41201-115-0000
Approximate dimensions:
  • Outer Diameter: 170mm
  • Centre Hole: 45mm
  • Thickness: 5mm
  • Mounting Holes: 7.4mm
  • Mounting Hole Spacing (across): 70mm (centre to centre)
  • Mounting Hole Spacing (side by side): 35mm (centre to centre)
