Magneto Cylinder - Hisun, 400-700cc, ATV/UTV

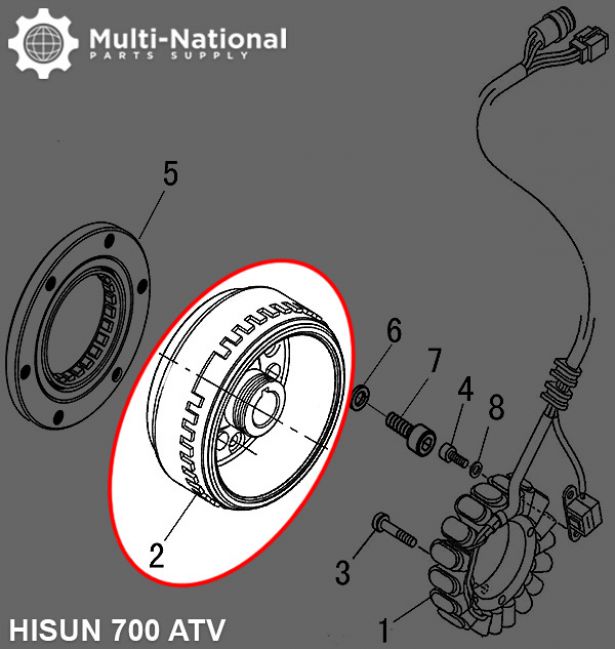

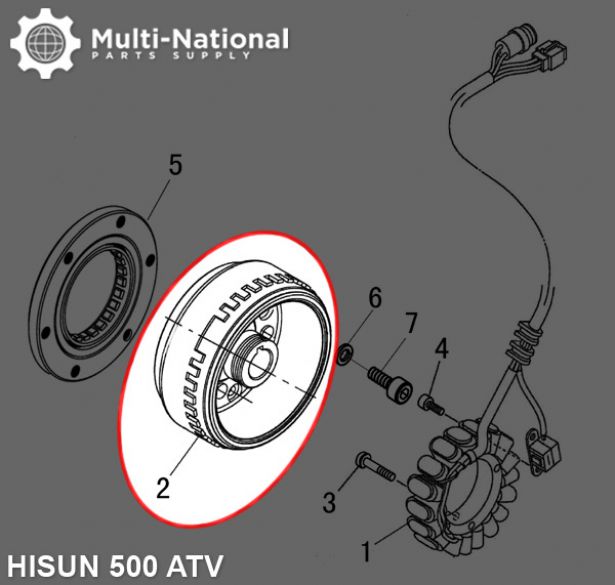

Magneto cylinder (stator housing). Commonly used for (but not limited to) 400cc, 500cc and 700cc engines, such as the Hisun 500cc and Hisun 700cc 4x4 ATVs and Hisun 400cc UTVs, as well as many other clones, rebrands and similar displacement machines.

These machines are commonly manufactured by Chongqing Huansong Industries (Group) Co., Ltd. and distributed by a range of exporters, importers and distributors under such brands as: Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.

Common Hisun model names are primarily listed as variations of "Hisun 500cc ATV", "Hisun HS500ATV", "HSUN HS500 E-mark EFI", "Hisun 700cc ATV", "Hisun HS700ATV", "HSUN HS700 E-mark EFI", "Hisun 400cc UTV" and "Hisun HS400UTV. Common listed Hisun magneto cylinder part number is 31110-004C-0000 and ERP part number is 31110-004C-0000. Also applies to some other variations of Hisun models.

Common Nordik model names are primarily listed "Storm 500 EFI ATV", "Storm 700 EFI ATV" and "Tornado 400cc UTV". Common listed Nordik magneto cylinder part number is 31110-004C-0000 and ERP part number is 31110-004C-0000. Also applies to some other variations of Nordik models.

Common Powermax model names are primarily listed as "Powermax Bearclaw 500 ATV", "Powermax Bearclaw 700 ATV" and "Powermax Renegade 400 UTV". Common listed Powermax magneto cylinder part number is 31110-004C-0000 and ERP part number is 31110-004C-0000. Also applies to some other variations of Powermax models.

• Manufacturer PN: 31110-004C-0000

• Inner Diameter (ID): 116.3mm
• Outer Diameter (OD): 143.2mm
• Overall Height: 46.8mm
• Center Hole Mount (Tapered): 24.3/20mm
• Mounting Holes (center - center) (Side by Side): 45mm
• Mounting Holes (center - center) (Across): 90mm
• Mounting Holes: 9mm
