Brake Pads - FA92, FA323, 50cc to 250cc

Brake Pads - FA92, FA323, 50cc to 250cc
  • Brake Pads - FA92, FA323, 50cc to 250cc
  • Brake Pads - FA92, FA323, 50cc to 250cc
Product Number:
90A1004
Availability:
In Stock
Price:
$29.99 CAD


  Description

Most commonly (though not exclusively) used as brake pad set for smaller ATVs in the 50cc to 150cc range (50cc, 80cc, 90cc, 110cc, 125cc and 150cc). These brake pads are often referred to as Yongli YL-F020, EBC FA92 & FA323, and SBS 558 & 125 & 104.

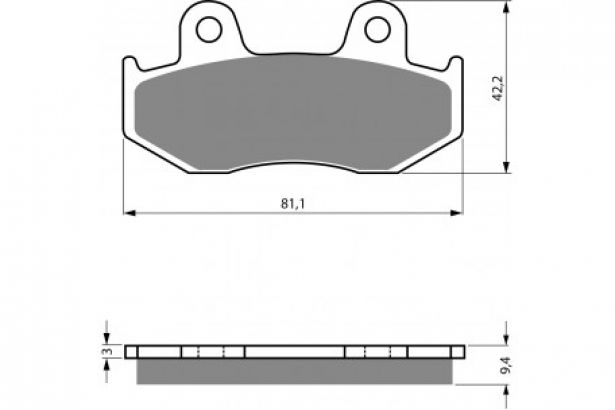

Approximate dimensions:
  • Large Pad:
  • Total Length: 81.1mm
  • Total Width: 41.6mm
  • Alignment Holes: 6.3mm
  • Alignment Hole Spacing: 40mm (center to center)
