Rectifier - Voltage Regulator, Honda TRX125

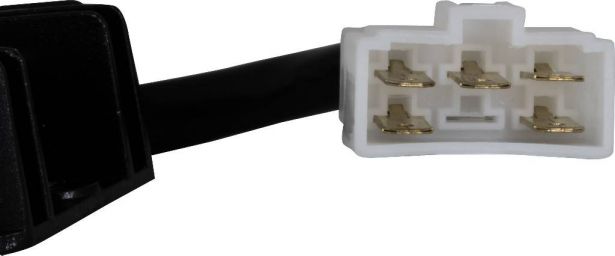

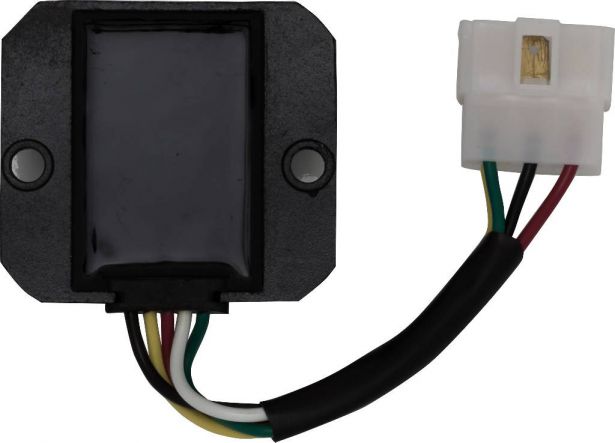

This rectifier (voltage regulator) is typically found in the Electric System section of several part manuals. Commonly used for but not limited to 125cc engines. It is most popularly known for its use in Honda TRX 125 / TRX125 (1985-1986), as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. This rectifier (voltage regulator) has 5 wires and 1 male plug with 5 pins.

Approximate Dimensions:

• Mounting Hole Diameter (center-to-center): 64mm (2.5)
• Voltage: 12V
• Number of Wires: 5
• Number of Male Plug: 1
• Number of Pins: 5
