Stator - Magneto Coil, 18G, 5 Wire, 500-700cc, Hisun

Stator - Magneto Coil, 18G, 5 Wire, 500-700cc, Hisun
  • Stator - Magneto Coil, 18G, 5 Wire, 500-700cc, Hisun
  • Stator - Magneto Coil, 18G, 5 Wire, 500-700cc, Hisun
Product Number:
30A9389
Availability:
In Stock
Price:
$169.99 CAD


  Description

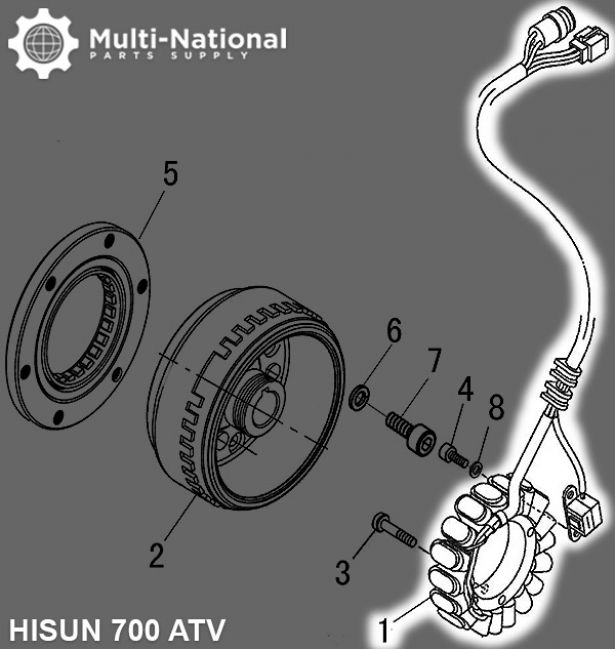

Stator / Magneto coil, 18G, 5 Wire. Commonly used for (but not limited to) 500cc and 700cc engines, such as the Hisun 500cc and Hisun 700cc 4x4 ATVs, as well as many other clones, rebrands and similar displacement machines.

These machines are commonly manufactured by Chongqing Huansong Industries (Group) Co., Ltd. and distributed by a range of exporters, importers and distributors under such brands as: Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.

Common Hisun model names are primarily listed as variations of "Hisun 500cc ATV", "Hisun HS500ATV", "HSUN HS500 E-mark EFI", "Hisun 700cc ATV", "Hisun HS700ATV" and "HSUN HS700 E-mark EFI". Common listed Hisun stator part number is 31120-004-000 and ERP part number is 31120-004-000. Also applies to some other variations of Hisun models.

Common Nordik model names are primarily listed "Storm 500 EFI ATV" and "Storm 700 EFI ATV". Common listed Nordik stator part number is 31120-004-000 and ERP part number is 31120-004-000. Also applies to some other variations of Nordik models.

Common Powermax model names are primarily listed as "Powermax Bearclaw 500 ATV" and "Powermax Bearclaw 700 ATV". Common listed Powermax stator part number is 31120-004-000 and ERP part number is 31120-004-000. Also applies to some other variations of Powermax models.

  • Outside Diameter: 114.7mm
  • Centre Hole Diameter: 54.2mm
  • Mounting Hole (centre-centre): 55.3mm
  • Bolt Hole: 6.5mm
  • Harness Length: 83cm
  • Pickup Wire Length: 10cm
  • Pickup Hole (centre-centre): 35mm
Manufacturer Part Numbers:

  • 31120-004-000
Stator - Magneto Coil, 18G, 5 Wire, 500-700cc, Hisun
Stator - Magneto Coil, 18G, 5 Wire, 500-700cc, Hisun

These categories serve as labels for sorting products. See our FAQ for more details.

Parts

Electrical

This part is not guaranteed to work with these machines. See our FAQ for more details.

Hisun (HSUN)

Nordik Motor

Powermax
