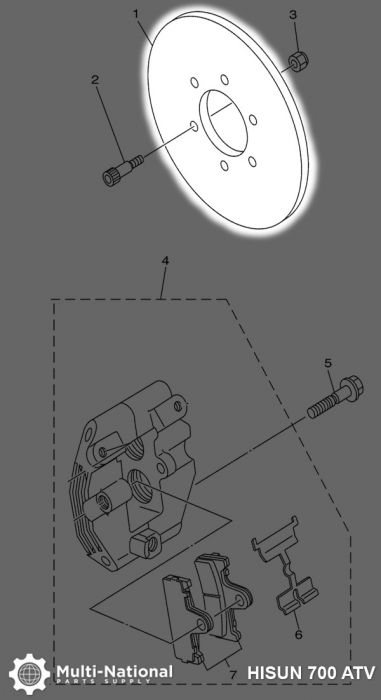

Brake Rotor - 6 Bolt 150mm 45mm Brake Disc, 500-700cc, Hisun

Rear middle disc brake rotor. Made from hardened, corrosion resistant steel. Commonly used for (but not limited to) 500cc and 700cc engines, such as the Hisun 500cc and Hisun 700cc 4x4 ATVs, as well as many other clones, rebrands and similar displacement machines.

These machines are commonly manufactured by Chongqing Huansong Industries (Group) Co., Ltd. and distributed by a range of exporters, importers and distributors under such brands as: Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.

Common Hisun model names are primarily listed as variations of "Hisun 500cc ATV", "Hisun HS500ATV", "HSUN HS500 E-mark EFI", "Hisun 700cc ATV", "Hisun HS700ATV" and "HSUN HS700 E-mark EFI". Common listed Hisun brake rotor part number is 41201-107-0000 and ERP part number is 41201-107-0000. Also applies to some other variations of Hisun models.

Common Nordik model names are primarily listed "Storm 500 EFI ATV" and "Storm 700 EFI ATV". Common listed Nordik brake rotor part number is 41201-107-0000 and ERP part number is 41201-107-0000. Also applies to some other variations of Nordik models.

Common Powermax model names are primarily listed as "Powermax Bearclaw 500 ATV" and "Powermax Bearclaw 700 ATV". Common listed Powermax brake rotor part number is 41201-107-0000 and ERP part number is 41201-107-0000. Also applies to some other variations of Powermax models.

• Manufacturer PN: 41201-107-0000

• Outer Diameter: 150mm
• Centre Hole: 45mm
• Thickness: 8.6mm
• Mounting Holes: 7.6mm
• Mounting Hole Spacing (across): 70mm (centre to centre)
• Mounting Hole Spacing (side by side): 35mm (centre to centre)
