Rim - 12" Steel, ATV Rim, 4 Hole Mount, XY, Xingyue

Rim - 12
  • Rim - 12
  • Rim - 12
  • Rim - 12
  • Rim - 12
  • Rim - 12
  • Rim - 12
  • Rim - 12
  • Rim - 12
Product Number:
40A3152
Availability:
In Stock
Price:
$199.99 CAD


  Description

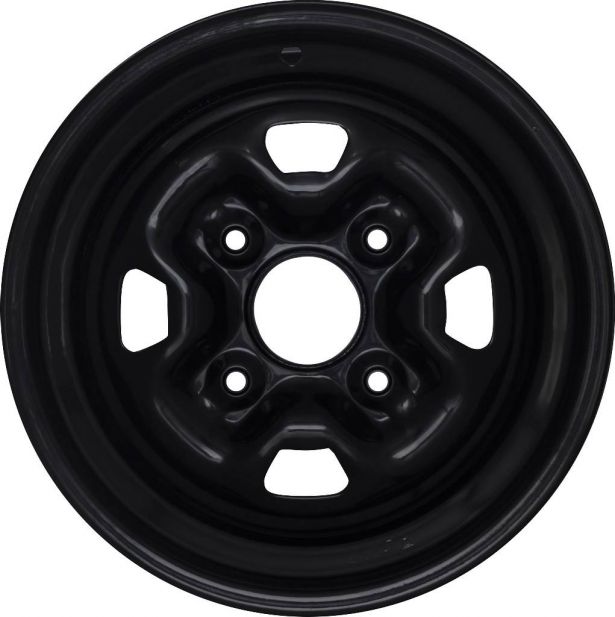

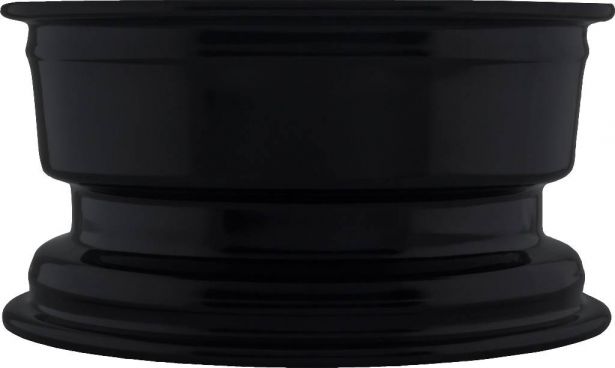

Steel 12" (12X6.0) ATV rim, 4 hole mount. Most commonly applicable to (but not limited to) the front wheel assemblies on 400cc to 800cc UTVs, XUVs and ATVs.
  • Manufactuer PN: 41120-107-0709
  • Maximum Outer Diameter: 33cm (13")
  • Bolt Pattern (center-center) Across: 80mm (3.15")
  • Bolt Pattern (center-center) Diagonal: 115mm (4.53")
  • Inner Mounting Hole: 60mm (2.36")
  • Maximum Width: 173mm (6.81")
  • From Lip Edge to Lip Edge: 154mm (6.06")
Rim - 12
Rim - 12
Rim - 12
Rim - 12
Rim - 12
Rim - 12
Rim - 12
Rim - 12

These categories serve as labels for sorting products. See our FAQ for more details.

Parts

Tires / Rims / Tubes

Rims

This part is not guaranteed to work with these machines. See our FAQ for more details.

Hisun (HSUN)

Nordik Motor

Powermax
