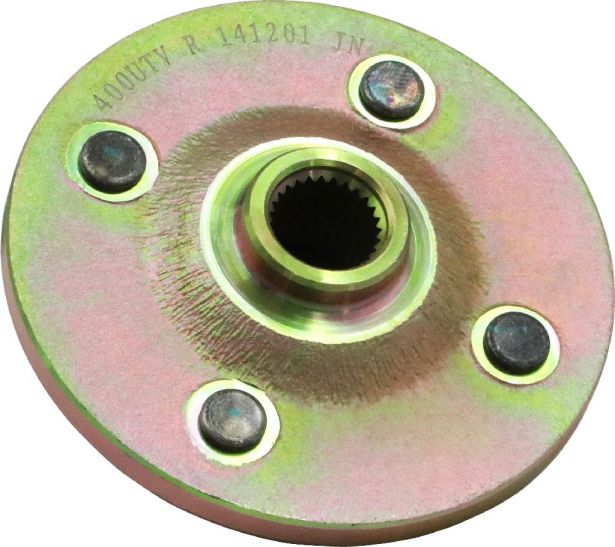

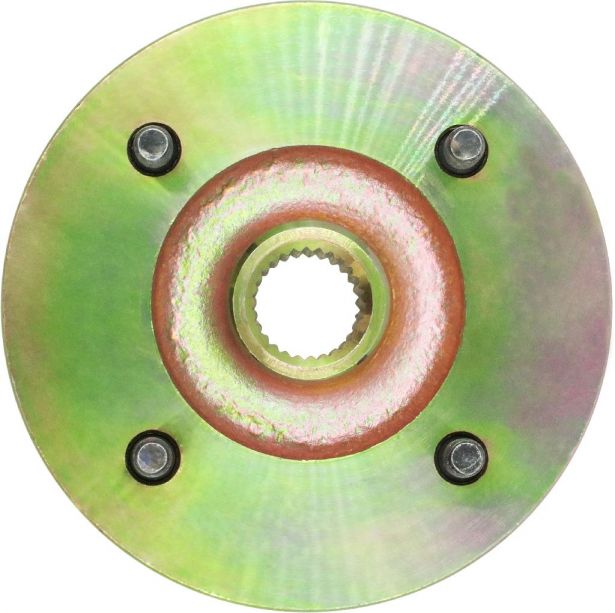

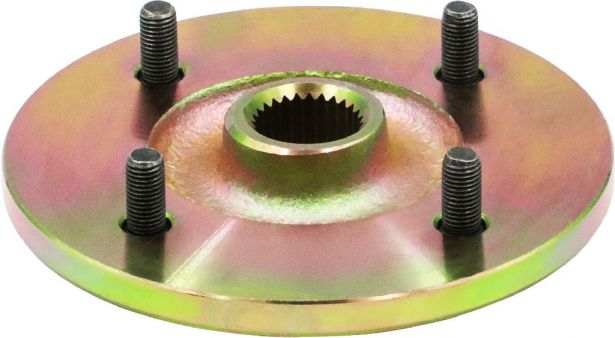

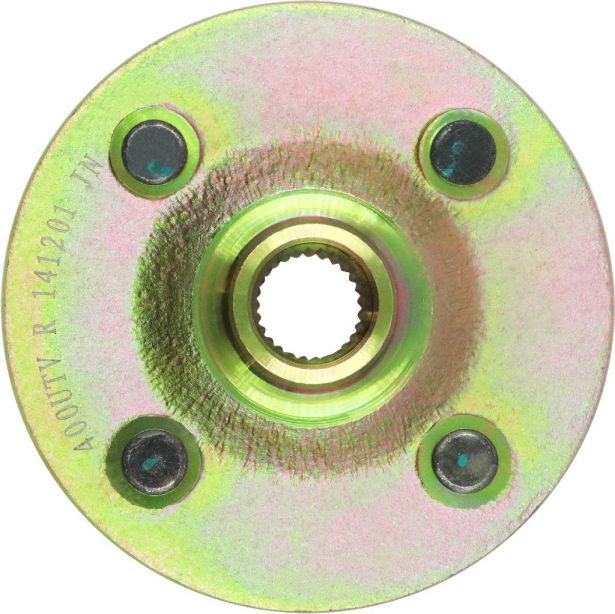

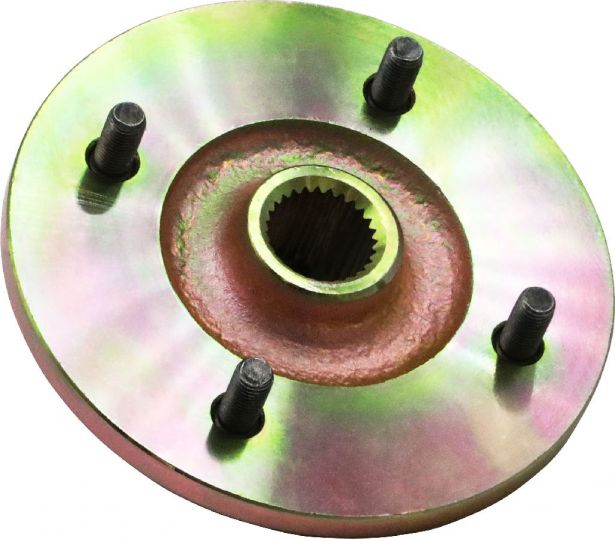

Wheel Hub - Rear, Hisun, UTV, 400cc, 27 Spline

Rear axle hub. Commonly used for (but not limited to) 400cc engines, such as the Hisun 400cc UTVs, as well as many other clones, rebrands and similar displacement machines.

These machines are commonly manufactured by Chongqing Huansong Industries (Group) Co., Ltd. and distributed by a range of exporters, importers and distributors under such brands as: Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.

Common Hisun model names are primarily listed as variations of "Hisun 400cc UTV" and "Hisun HS400UTV. Common listed Hisun wheel hub part number is 62330-115-0000 and ERP part number is 62330-115-0000. Also applies to some other variations of Hisun models.

Common Nordik model names are primarily listed "Tornado 400cc UTV". Common listed Nordik wheel hub part number is 62330-115-0000 and ERP part number is 62330-115-0000. Also applies to some other variations of Nordik models.

Common Powermax model names are primarily listed as "Powermax Renegade 400 UTV". Common listed Powermax wheel hub part number is 62330-115-0000 and ERP part number is 62330-115-0000. Also applies to some other variations of Powermax models.

• Outside Diameter: 154mm
• Bolt Stud Spacing (centre-centre): 78mm
• Bolt Stud Spacing (centre-centre diagonal): 110mm
• Bolt Stud: M10
• Axle Shaft Diameter: 27.4mm

• 62330-115-0000
