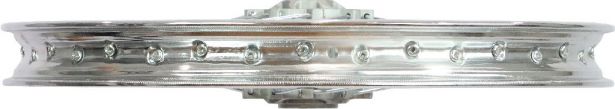

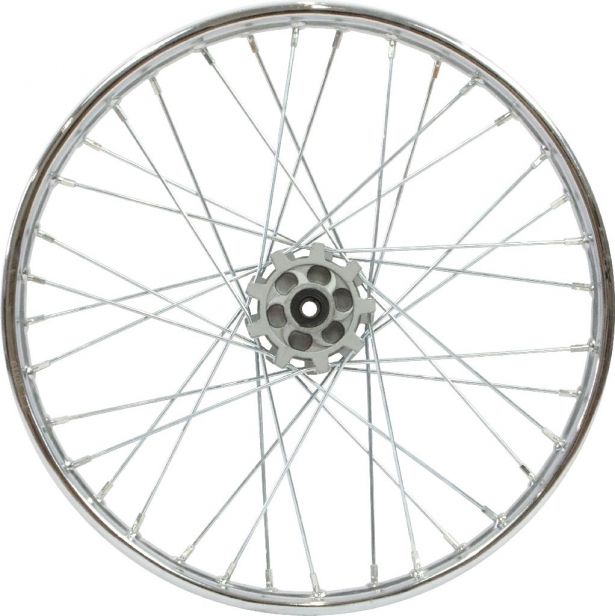

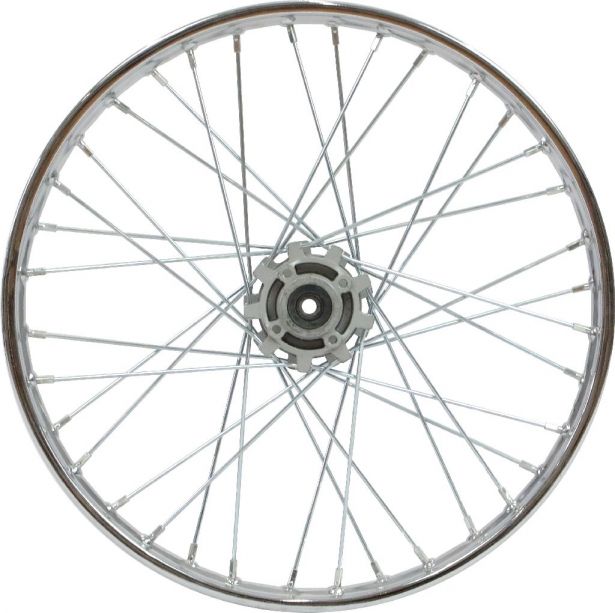

Rim - Front 19" Chrome, Steel Dirt Bike Rim 1.40x19 Disc Brake

Rim - Front 19
  • Rim - Front 19
  • Rim - Front 19
  • Rim - Front 19
  • Rim - Front 19
Product Number:
40D4257CR
Availability:
Out of Stock
Price:
$109.99 CAD


  Description

Front rim, 19" chrome steel. Primarily (though not exclusively) used for dirt bikes/pit bikes in the 90cc to 300cc range. This rim uses a brake disc/rotor. Popularly used with a 70/100-19 (2.50-19) tire.
  • Placement: Front
  • Braking System: Disc
  • Tire Size: 70/100-19 (2.50-19)
  • Axle Mount: 12mm
  • Bolt Hole: 7mm
  • Bolt Mount Across (center to center): 46mm
  • Bolt Mount Diagonal (center to center): 65mm
    Associated Parts:
  • 40D1155 Tire - 70/100-19, 19 Inch, Dirt Bike
  • 90A2070 Brake Rotor - 4 Bolt 190mm 50mm Brake Disc, 50cc to 300cc
  • 90A2065 Brake Rotor - 4 Bolt 190mm 50mm Brake Disc, 50cc to 300cc
