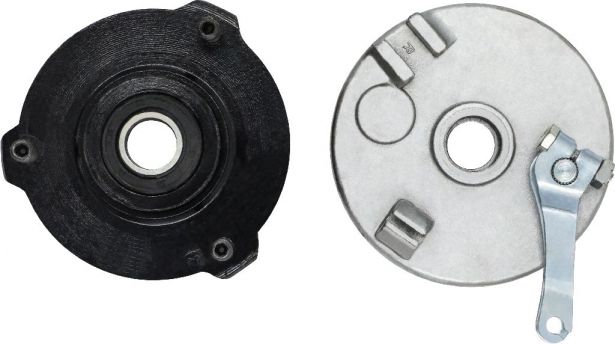

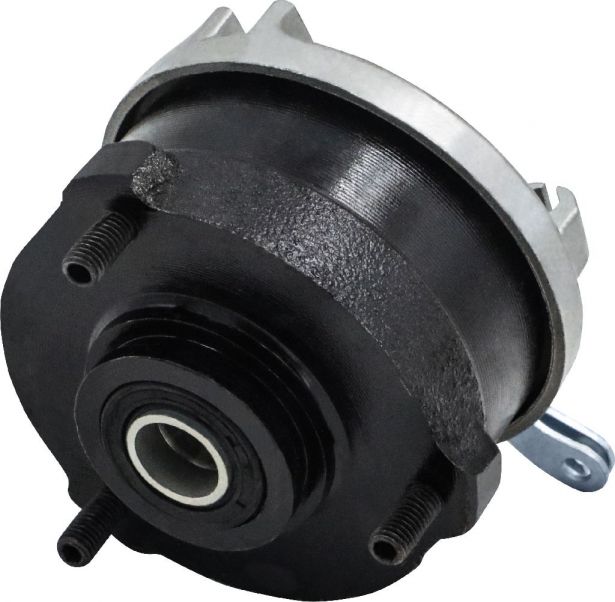

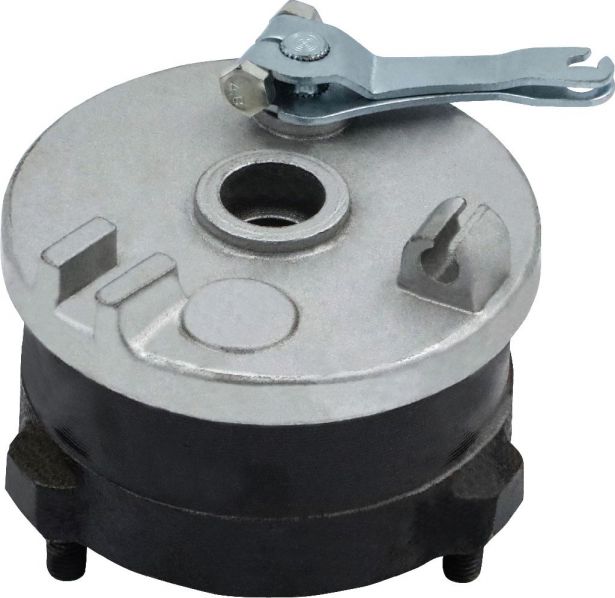

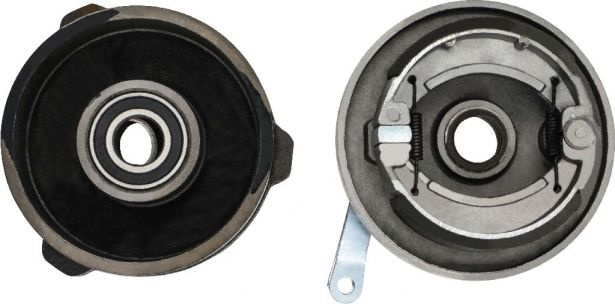

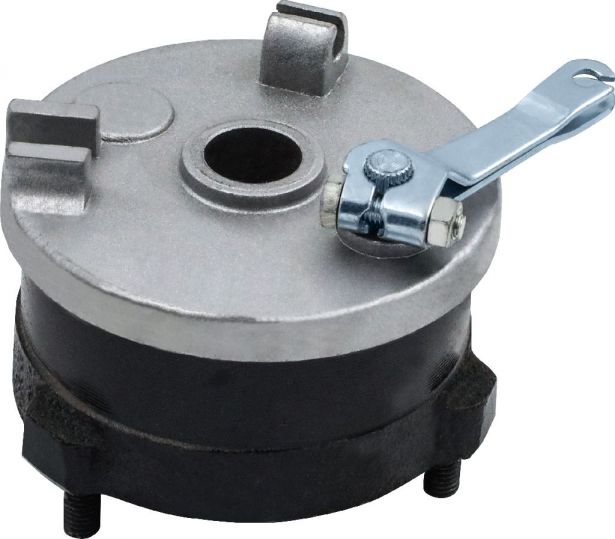

Drum Brake Assembly - 3 Bolt, M8, Right Side

Drum brake assembly, 3 bolt mount, M8, right side. This drum brake is most commonly (though not exclusively) used for 50cc to 300cc ATVs and other powersports products.

Product Specifications

• Placement: Right
• Center Mount: 18mm
• Bolt: M8
• Mount Pattern: 3 Bolt
• Bolt Mount (center to center): 77mm
• Outer Dimensions: 94mm
• Overall Height: 62mm

Associated Parts:

• 90D5030 Brake Shoe
• 20A5566 Seal
• BRG6003-2RS Bearing
