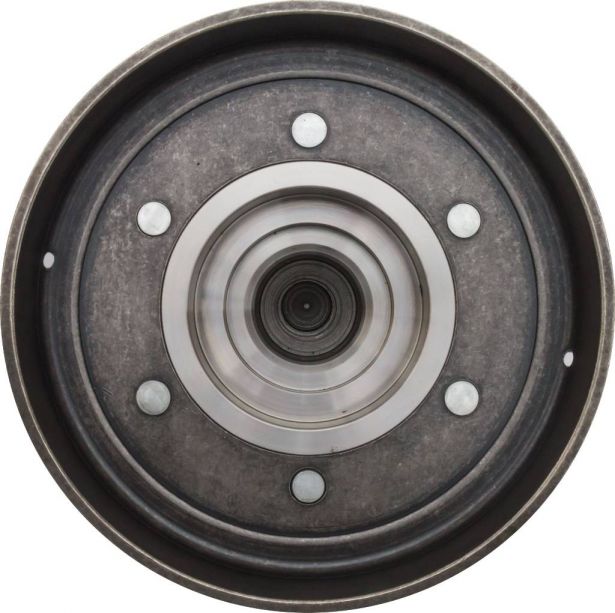

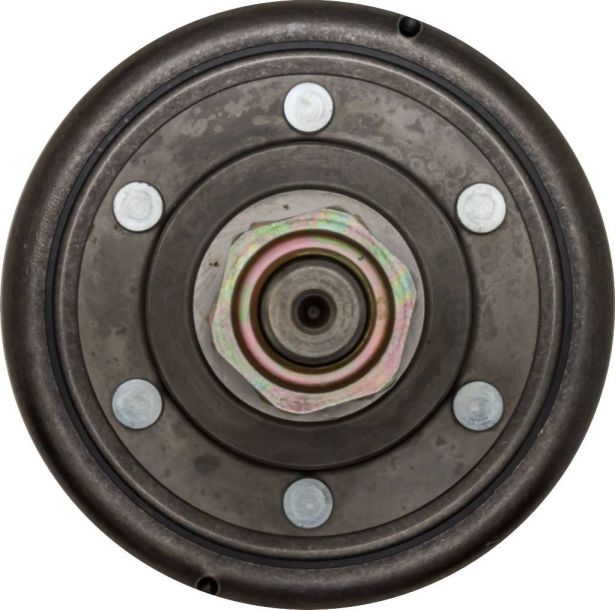

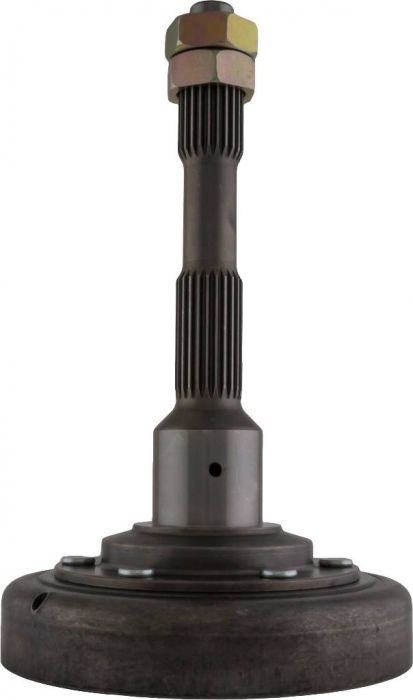

Clutch Housing- Clutch Drum, CF Moto, 23 Splines, 196S, 2V91W, CF188, 500cc, 600cc, 625cc, 800cc

This clutch housing assembly with engine brake, clutch drum with 23 splines is typically found in the Clutch & CVT section of several part manuals. Commonly used for but not limited to 196S / CF188 / 500cc, 600cc, and 625cc engines. It is most popularly known for its use in CF Moto 196S-B / CF500 UTV (Rancher) / CF500 Atlas / CF500 CF188 / CF500 CF188-A / CF500 CForce X5 ATV / CF500 XL ONE / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-5 Rancher / CF500-5A / CF500-5B X500/ CF500-A CForce X5 / CF500-D CForce 500 / CF600 / CF600 196S-B(X6) / CF600 196S-C /CF600-3 ZForce Z6 SSV / CF600-5 Rancher 600 UForce U6 / CF625-2 / CF625-2A / CF625-3 ZForce Z6 SSV / CF625-6 ZForce Z6-EX SSV / CF625-B CForce 625/ CF625-B X600 / CF625-C 196S-B(X6) / CF625-C Terralander 625 X6 ATV / CF625L / CF625L Long EFI / CF625S Short EFI / CF800 ZForce Z8-EX / CF800-2 CForce 800 X8 / CF800-2 X800 / CF800ATR CForce 800 X8 / CF800ATR-2 2V91W CForce 800 X8 / CF800AU-2B CForce 800 X8 / CF800UTR ZForce Z8-EX / CForce 500 ONE / Terracross 625 4X4 / X6 EFI / Z6 EFI / CF500-2 Long EFI / CF500-A Short EFI / Terralander 500 CForce 500 / CF500-A Basic & CF500-A, Chironex Spartan 600 EFI / Spartan 600 XT EFI, Explorer Atlas 500 / Atlas 500 2x4 COMPACT / Atlas 500 4X4 XL / Atlas 500 4x4 EDITION / Bazooka 625 4X4 / Everest 500 4X4 XL / Grumbler 500, GOES 520 MAX / 625UTS / G520 (QUAD) ATV / G520 UTX (Side x Side) / G525 ATV / G525 MAX / 625i / 625i MAX / 625i UTX, Journeyman Gladiator UTV530 / Gladiator X5 / X5-A / Gladiator X6 / X6-A EFI / Gladiator Z6, and Quadzilla RS6 LWB / RS6 SWB / RS6 Terrain / Terrain 500 / Z6 4X4, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Includes Part Numbers:

• 0180-053200 / CF188-053200 "OVERRIDING CLUTCH"
• 0180-053005 / CF188-053005 "OIL SEAL 46x37.5x5.5, END FACE"
• 0180-053100 / CF188-053100 "CLUTCH HOUSING"
• 0180-060003-0010 / CF188-060003 "MAIN DRIVE SHAFT NUT"

Manufacturer Part Numbers:

• CF Moto Part Numbers: 018A-053000, CF188-A-053000 “CLUTCH HOUSING ASSY” MC / WITH ENGINE BRAKE or “CLUTCH HOUSING”
• Chironex Part Number: CF188-A-053000 “CLUTCH HOUSING”
• GOES Part Number: 018A-053000 “CLUTCH HOUSING” or “CLUTCH HOUSING ASSY”
• GOES Part Number: 018A-053000 “CLUTCH HOUSING ASSY” or “CLUTCH HOUSING FULL ASSEMBLY” or “CLUTCH HOUSING”
• Journeyman Part Number: 018A-053000 “CLUTCH HOUSING ASSY” “CLUTCH HOUSING”

Associated Parts:

• 30A3530 Clutch
• 30A3630 Variator Clutch
• 30A4030 Torque Convertor
