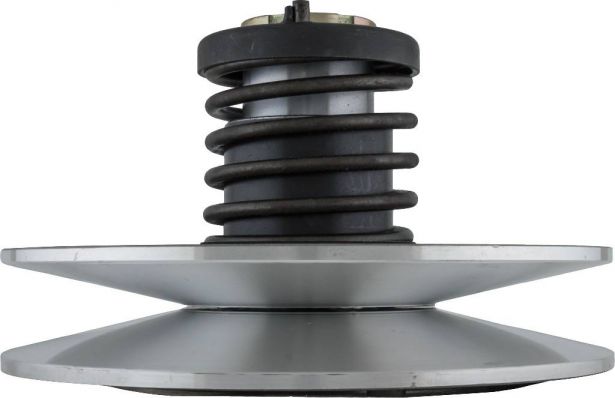

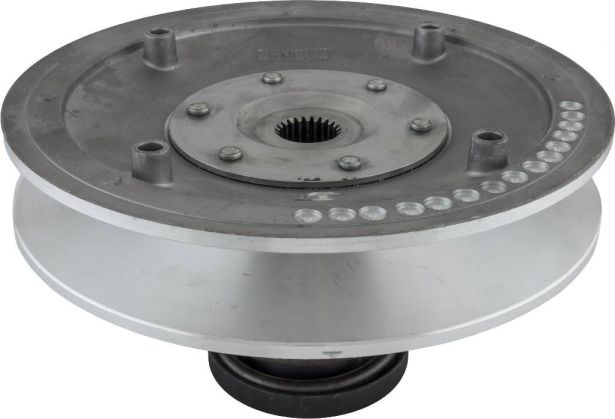

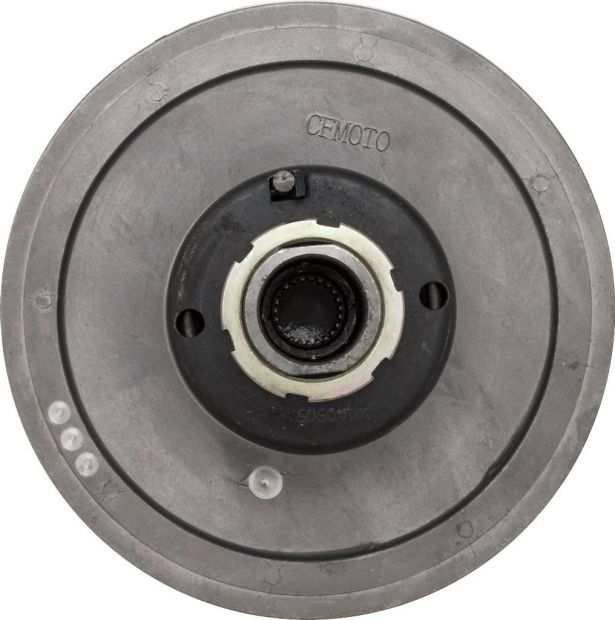

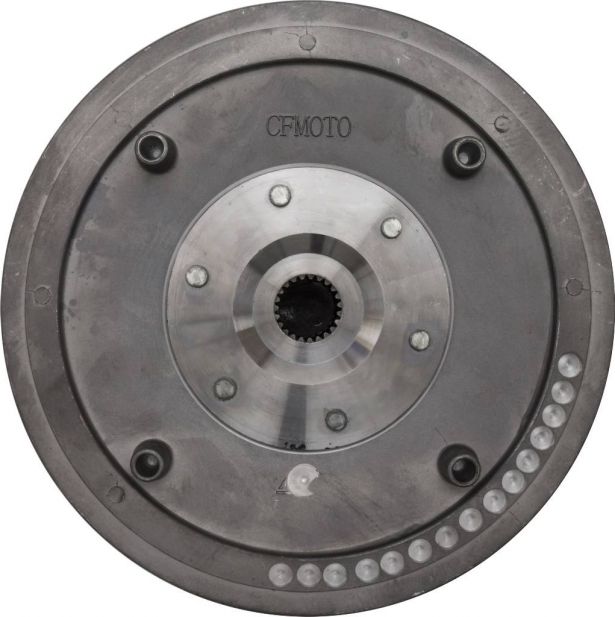

Secondary Clutch - Driven Pulley, Secondary Sheave, 23 Splines, CF Moto, Hammerhead, Chironex, 196S, CF188, 500cc, 600cc, 625cc

Secondary Clutch - Driven Pulley, Secondary Sheave, 23 Splines, CF Moto, Hammerhead, Chironex, 196S, CF188, 500cc, 600cc, 625cc
  • Secondary Clutch - Driven Pulley, Secondary Sheave, 23 Splines, CF Moto, Hammerhead, Chironex, 196S, CF188, 500cc, 600cc, 625cc
  • Secondary Clutch - Driven Pulley, Secondary Sheave, 23 Splines, CF Moto, Hammerhead, Chironex, 196S, CF188, 500cc, 600cc, 625cc
  • Secondary Clutch - Driven Pulley, Secondary Sheave, 23 Splines, CF Moto, Hammerhead, Chironex, 196S, CF188, 500cc, 600cc, 625cc
  • Secondary Clutch - Driven Pulley, Secondary Sheave, 23 Splines, CF Moto, Hammerhead, Chironex, 196S, CF188, 500cc, 600cc, 625cc
  • Secondary Clutch - Driven Pulley, Secondary Sheave, 23 Splines, CF Moto, Hammerhead, Chironex, 196S, CF188, 500cc, 600cc, 625cc
Product Number:
30A4030
Availability:
In Stock
Price:
$229.99 CAD


  Description

This driven clutch pulley / secondary clutch sheave is typically found in the Clutch & CVT / CVT section of several part manuals. Commonly used for but not limited to 196S / CF188 / 500cc, 600cc, and 625cc engines. It is most popularly known for its use in CF Moto 196S-B / CF500 AllRoad 500 / CF500 AllRoad 500 / CF500 Atlas / CF500 CF188 / CF500 CF188-A / CF500 CF188-B / CF500 CF188-C / CF500 CForce X5 ATV / CF500 XL ONE / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-5B X500 / CF500-5C / CF500-A CForce X5 / Cf500-D CForce 500 / CF600 196S-B(X6) / CF600 196S-C / CF600-3 ZForce Z6 SSV / CF600-5 Rancher 600 UForce U6 / CF600-6 ZForce Z6-EX SSV / CF625-2 / CF625-2A/ CF625-3 ZForce Z6 SSV / CF625-6 ZForce Z6-EX SSV / CF625-B CForce 625 / CF625-B X600 / CF625-C 196S-B(X6) / CF625-C Terralander 625 X6 / CF625L / CF625L Long EFI / CF625S Short EFI / CForce 500 ONE / Terracross 625 4X4 / X6 EFI / Z6 EFI / CF500-2A Long / CF500-A Short / CF500-A Basic & CF500-A / CF500 Edition / Terralander 500 CForce 500 / Terralander 625 CForce 500, Chironex Komodo 500 / Spartan 500 / Spartan 600 EFI / Spartan 600 XT EFI, Diamo Adventure, Explorer Atlas 500/ Atlas 500 2x4 COMPACT /Atlas 500 4X4 XL / Atlas 500 4x4 EDITION / Bazooka 625 4X4 / Everest 500 4X4 XL / Everest 500L / Grison 625 4X4 Deluxe / Grumbler 500, GOES 520 UTX / 520/520 Max / G520 (QUAD) / G525 / G525 MAX / G625i / G625i MAX / G625i UTX, Hammerhead Titan 500 UTV (Off-Road), Journeyman Gladiator RX530 / Gladiator UTV 530 / Gladiator UTV630 EFI / Gladiator X5 / X5-A Valex / Gladiator X6 / X6-A / Gladiator Z6, Powermax Chase 500 & 500 XL, and Quadzilla 500ES 4x4 / RL 500 / RS6 LWB / RS6 SWB / Terrain 500 / 500ES SWB / 500ES LWB / 500ES Terrain, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions:

  • Outer Diameter of the Clutch: 226mm (“8.90”)
  • Total Height: 134mm (5.28”)
  • Outer Diameter of the Shaft Collar: 30mm (1.18”)
  • Inner Diameter of the Shaft Collar: 25mm (0.98”)
  • Number of Splines / Teeth: 23

Includes Part Numbers:

  • 0180-052006 / CF188-052006 "NUT"
  • 0180-052004 / CF188-052004 "SECONDARY SPRING SOCKET"
  • 0180-052003 / CF188-052003 "PRESSURE SPRING"
  • 0180-052002 / CF188-052002 "SPACER"
  • 0180-052203 / CF188-052203 "OIL SEAL 50x58x4"
  • 0180-052204 / CF188-052204 "O-RING 56.5x1.9"
  • 0180-052200 / CF188-052200 "SECONDARY LOOSE PULLEY ASSY."
  • 0180-052005 / CF188-052005 "GUIDE PIN"
  • 0180-052001 / CF188-052001 "GUIDE RING"
  • 0180-052100 / CF188-052100 "SECONDARY TIGHT PULLEY ASSY."

Manufacturer Part Numbers:

  • CF Moto Part Numbers: 0180-052000, CF188-052000 “SECONDARY SHEAVE” or “DRIVEN PULLEY”
  • GOES Part Number: 0180-052000 “SECONDARY SHEAVE”
  • Diamo Part Number: 08-038-4105 “SECONDARY SHEAVE”
  • Explorer Part Number: CF188-052000 “SECONDARY SHEAVE”
  • Chironex Part Number: CF188-052000 “SECONDARY SHEAVE”
  • Hammerhead Part Number: CF188-052000 “SECONDARY SHEAVE”
  • Powermax Part Number: CF188-052000 “SECONDARY SHEAVE”
  • ATV Sweden Part Number: CF500M-11-5 “SECONDARY SHEAVE”
  • Quadzilla Part Number: 0180-052000 “DRIVEN PULLEY” or “SECONDARY TIGHT PULLEY FULL ASSEMBLY”
  • Journeyman Part Number: 0180-052000 “SECONDARY SHEAVE”

Associated Parts:

  • 30A3530 Clutch
  • 30A3630 Variator Clutch
  • 30A4130 Clutch Drum
