Axle HubsAxles & CV JointsBattery Straps and HooksBody Kit / Plastic SetCrash Plates & Skid PlatesFendersFolding Hooks, Clips & LatchesFoot Rest - Foot PegFork CupsFork GuardsFrames & ComponentsKick StandsMirrorsPedals & Arms - Bike, ScooterPedals - Gas, Brake, ClutchRacks, Baskets & CarriersReflectorsSeat BeltsSeats & Seat PostsSteering Column ClipsSteering Knuckles & AssembliesSteering LocksSteering WheelsSway Bars & Stabilizer BarsSwing Arms, Rocker Arms & ComponentsTow Balls/AssembliesWheel HubsWiper Blades, Arms & MotorsWheel Hub - Rear, 50cc to 300cc, 23 Spline
Description

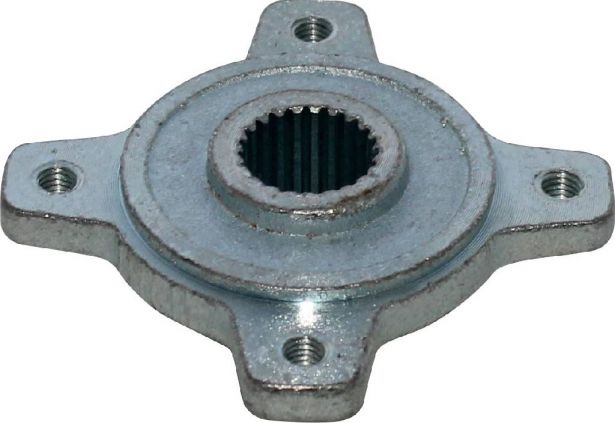

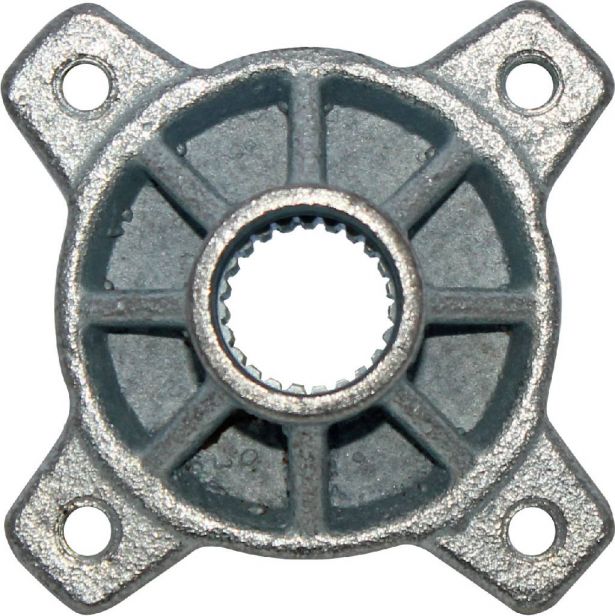

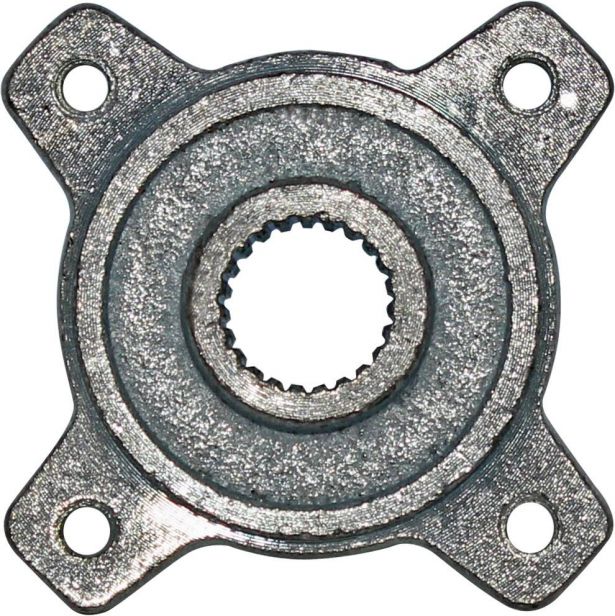

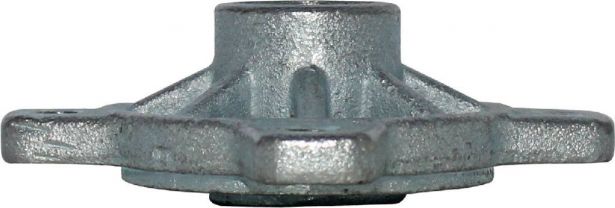

This axle hub is commonly used for a wide range of powersport and mobility machines including ATVs, dirt bikes, scooters, buggies and gokarts. Popularly applies to the Fuxin 110cc and 125cc gokarts.
Common Fuxin model names consist of variations of "Fuxin 110cc Buggy", "Fuxin 110cc Go Kart", "Fuxin GK110", "Fuxin 125cc Buggy", "Fuxin 125cc Go Kart" and "Fuxin GK125". Common listed Fuxin axle hub part number is GK110-3-07 and listed description is "rear wheel hub".
Fits with many Axles, including 70A4615
Approximate dimensions:
- Total Outside Diameter: 107.9mm
- Total Length: 35.2mm
- Bolt Stud Spacing (centre-centre): 63mm
- Bolt Stud Spacing (centre-centre diagonal): 87mm
- Bolt Stud Hole: M8
- Axle Shaft Diameter: 24.1mm
Manufacturer PN: GK110-3-07
Specifications
| Product Specifications | ||
|---|---|---|
| Inner Diameter (ID) | 22.7 mm | |
| Mounting Hole (centre-centre diagonal) | 88 mm | |
| Number of Splines | 23 | |
Categories
Suggested Machines
This part is not guaranteed to work with these machines. See our FAQ for more details.
FUXIN |
