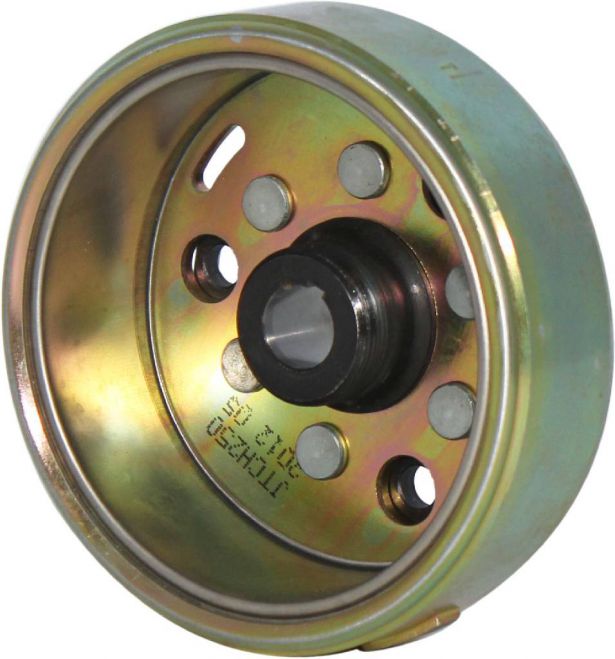

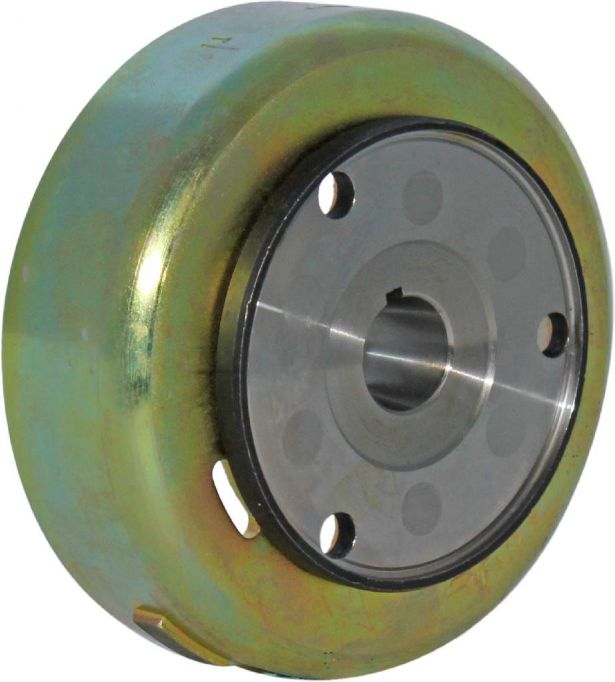

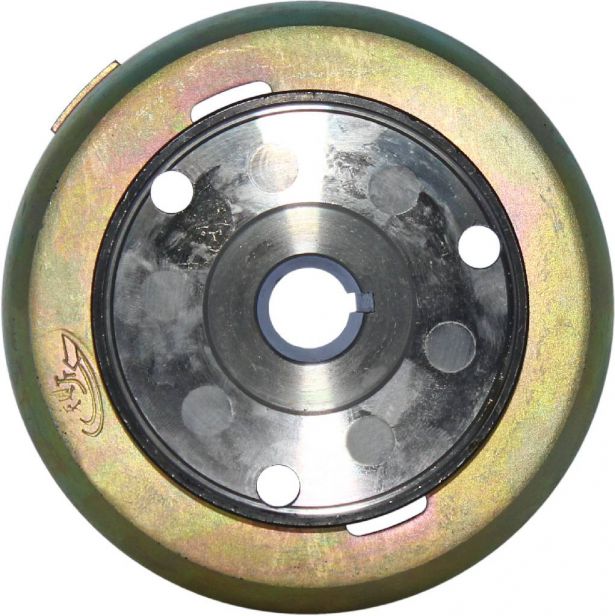

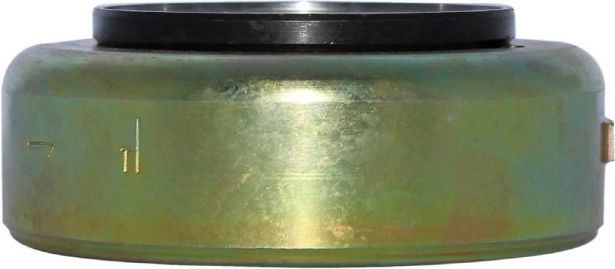

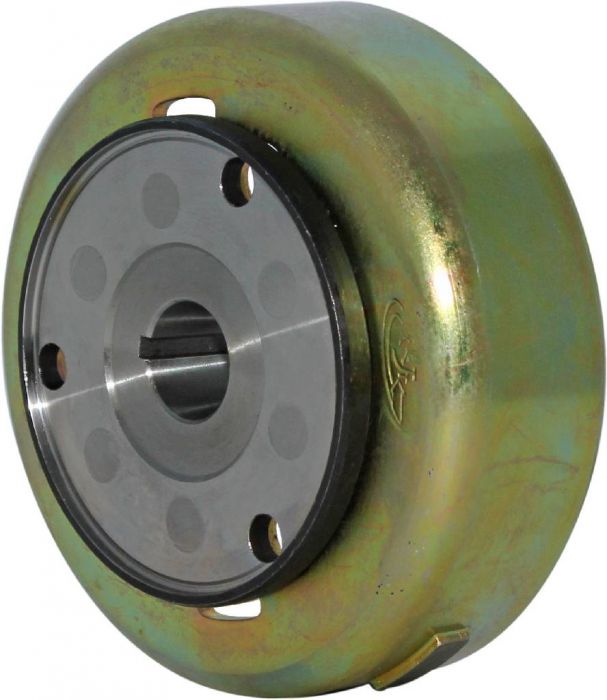

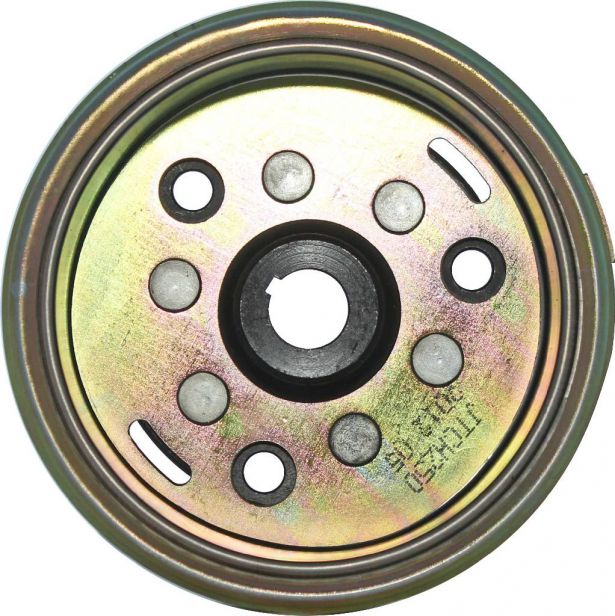

Magneto Cylinder - Flywheel, Honda, CF Moto, Hammerhead, 172MM, 250cc

This magnetor cylinder / stator housing / flywheel rotor is typically found in the Flywheels / Magnetor Assy / Crankshaft Assy & Piston / Magneto Comp. / Magneto / Stator And Flwheel / Electrical Start Propeller / Driver Plate Assy / Generator section of several part manuals. Commonly used for but not limited to water cooled 172MM / CF250 / CN250 / 250cc engines. It is most popularly known for its use in Helix / Fusion / Spazio CN250 Scooter, CF Moto V3 / V5 / CF250 172MM / CF250 172MM-A / CF250 172MM-B / CF250 172MM-C / CF250T-5A, Baja Reaction 250 / BR250 / Dune 250 / DN250, Diamo Wolverine XF250-2A-2AR, Hammerhead SS250 / Twister UM250IIR, JM Star 250, Jonway 250 / YY250 Scooter / YY250T, Joyner 250 / Sand Viper 250cc / Viper JNSZ250DN / Viper 250 (SZ250DI) / Dirt Devil 250 (SZ250DS), Kinroad 250cc XT250GK-2 / XT250 GK-7, Lance Powersports Duke Touring 250 / Vintage 150cc, NST, QLink Legacy 250 / Commuter 250, Roketa Bali 250 / GK-06 (KTX-250 WJF) / GK-13 (KTX-250W)(L5G) / GK-19 (KTB-250W)(L5C) / MC-13 / MC-54 / MC-68A, SL250-2 / SLGK-250-2A / XF250-2A Buggy / XF2502AR Buggy, Tank Sports Touring DE (TK250T-2) 250 4T, Tao Tao, Lince 250cc, BMS, Yerf Dog, DMC Racing, Tomerlin Crossfire 250 , Carter Talon/ Brothers, and American Sportsworks, as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions:

• Inner Diameter: 104.4mm (4.11")
• Outer Diameter: 128mm (5.04")
• Overall Height: 49.8mm (1.96")
• Center Hole Mount (Tapered): 21.5/17mm (0.85"/0.67")
• Mounting Holes (Center - Center): 55mm (2.17")
• Mounting Holes: 8.6mm (0.34")

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0110-031000, 172MM-031000 “ROTOR COMP.”
• Joyner Sand Viper 250cc Part Number: 172MM-031000 “FREE-WHEELING
• Joyner Dirt Devil 250cc Part Numbers: 172MM-031000, SZ15100007 “ROTOR COMP.” or “FLYWHEEL ASSY”
• Hammerhead Part Number: 172MM-031000 “FLYWHEEL”
• QLink Part Number: 172MM-031000 “ROTOR COMP.”
• Baja Reaction 250cc Part Number: BR250-394 “FLYWHEEL”
• Baja Dune 250cc Part Number: DN250-559 “FLYWHEEL”
• Kinroad Part Number: 31110-SCC0-0000, “FLYWHEEL COMP.”
• OEM and Jonway 250cc Part Number: YYSLL2501301 “GENERATOR ASSY”
• SunL and Diamo Part Number: XF172MM-1051100 “FLYWHEEL COMP.”

Associated Parts:

• 30A9425 Stator Pick Up / Flywheel Pick-Up Sensor
• 30A9381 Stator (Magneto Coil)
