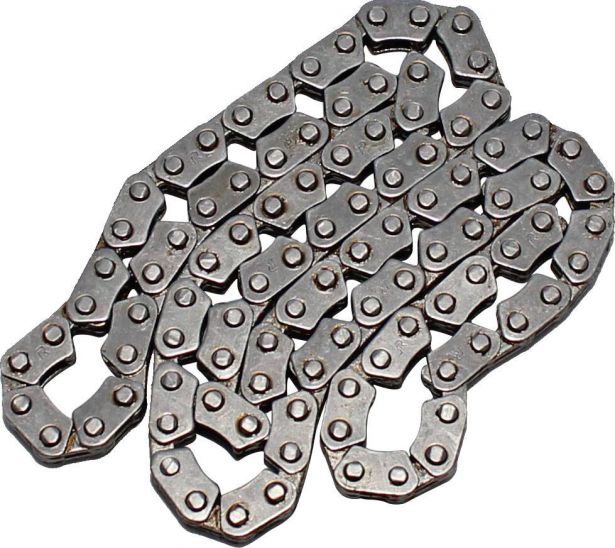

Timing Chain - 49 links, Honda, CF Moto, Hammerhead, Baja, 172MM, 250cc

This 49-link / 98-pin camshaft timing chain is typically found in the Timing Chain / Camshaft Chain / Head Comp., Cylinder / Valve Tranny Assy (2) / Valve Train Assy / Right Crankcase Comp. section of several part manuals. Commonly used for but not limited to 4-stroked water cooled 172MM / CF250 / CN250 / 250cc engines. It is most popularly known for its use in Helix / Fusion / Spazio CN250 / Elite CH250, CF Moto V3 / V5 / CF250 172MM / CF250 172MM-A / CF250 172MM-B / CF250 172MM-C / CF250T-5A / CF250T-5, Baja Reaction 250 / BR250 / Dune 250 / DN250, Diamo Wolverine XF250-2A-2AR, Hammerhead SS250 / Twister UM250IIR / GTS250 / GT250, Jonway 250cc, Joyner 250 / Sand Viper 250cc / Viper JNSZ250DN / Viper 250 (SZ250DI) / Dirt Devil 250 (SZ250DS), Kinroad 250cc XT250GK-2 / XT250 GK-7, QLink Legacy 250 / Commuter 250, SunL SL250-2 / SLGK-250-2A / XF250-2A Buggy / XF2502AR Buggy, Blade XTX 250, Gio Bikes GT250, Roketa 250, American Sportsworks, and Old TJ Powersports, as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimension:

• Length: ~63.5cm (25”)
• Number of Links: 49
• Number of Pins: 98

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0110-022200, 172MM-022200 “TIMING CHAIN”
• QLink Part Number: 172MM-022200 “TIMING CHAIN” or “CHAIN, CAMSHAFT DRIVE”
• Joyner Dirt Devil 250cc Part Numbers: 172MM-022200, SZ02050007 “CHAIN, CAMSHAFT DRIVER” or “CHAIN”
• Joyner Viper 250cc Part Number: 172MM-022200 “CHAIN UNIT”
• Hammerhead Part Number: 172MM-022200 “TIME CHAIN”
• Baja Reaction 250 (2-seater model) Part Number: BR250-388 “CHAIN, TIMING”
• Baja Dune 250 Part Number: DN250-513 “TIMING CHAIN”
• Kinroad Part Number: 14401-SCC0-0000 “CHAIN CAM”
• SunL 250cc Part Number: XF172MM-1005400 “TIMING DRIVER CHAIN”
• Generic OEM and Jonway 250cc Part Number: YYSLL2500610 “TIMING CHAIN,CAM”
