Gasket Set - Head & Base Gasket Set, Honda, CF Moto, Hammerhead, Baja, Chironex, 172MM, 250cc

This head gasket is typically found in CYLINDER HEAD ASSY / HEAD COMP, CYLINDER / CYLINDER COVER ASSY sections in several part manuals. Commonly used for but not limited to 250cc engines. It is most popularly known for its use in Honda Helix / Spazio / Fusion CN250, CF Moto 172MM / 172MM-A / 172MM-B / 172MM-F / 172MM-C / V3 / V5 / CF250T-5A, Baja Reaction 250 / BR250 / Dune 250 / DN250, Hammerhead 250ss / GT250 / GTS250 / Twister UM250IIR, Tank Sports Touring DE (TK250T-2) 250, Lance Powersports Duke Touring 250, Roketa Bali 250, Joyner 250 / Sand Viper 250cc / Viper JNSZ250DN / Viper 250 (SZ250DI) / Dirt Devil 250 (SZ250DS) / Dirt Devil (SZ250DL), SunL SL250-2 / XF250-2A / XF250-2AR / SLGK-250-2A, Jonway Master 250cc, Diamo Wolverine XF250-2A-2AR, Quadzilla XRV250, QLink Legacy 250 / Sapero 250 / Commuter 250, Kinroad 250cc XT250GK-2 / XT250GK-7, NST, BMS, Blades XTX 250, and Gio Bikes 250GT as well as many other brands of ATVs, dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions:

• Bore Size: 73mm (2.87”)
• Bottom Mount Hole (centre to centre): 70mm (2.76”)
• Top Mount Hole (centre to centre): 70mm (2.76”)
• Side Mount Hole Left (centre to centre): 70mm (2.76”)
• Side Mount Hole Right(centre to centre): 70mm (2.76”)

Manufacturer Part Numbers:

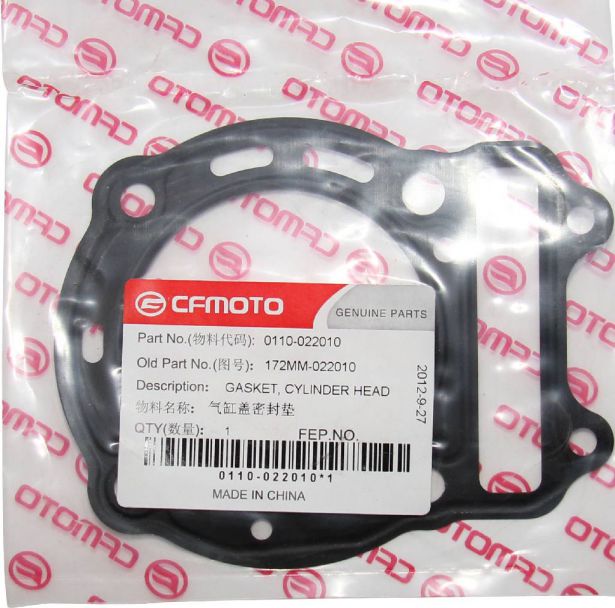

• CF Moto Part Numbers: 172MM-022010, 0110-022010 “GASKET, CYLINDER HEAD”
• Hammerhead Part Number: 172mm-022010 “CYLINDER COVER SEAL”
• BMS Part Number: BN172MM0000001
• GOES Part Number: BN172MM0000001 “GASKET CYLINDER HEAD”
• CHIRONEX Part Number: BN172MM0000001 “GASKET CYLINDER HEAD”
• TNG Part Number: BN172MM0000001 “GASKET, CYLINDER HEAD”
• Joyner 250cc Part Number: 172MM-022010 “CYLINDER HEAD SEAL WASHER” or “GASKET, CYLINDER HEAD” or “SEAL WASNER.CYLINDER HEAD”, SZ02011004 “GASKET, CYLINDER HEAD”
• Baja Reaction 250 (2-seater model) Part Number: BR250-343 “GASKET, CYLINDER HEAD”
• Baja Dune 250 Part Number: DN250-465 “GASKET CYLINDER HEAD”
• Kinroad 250cc models Part Number: 12251-SCC0-0000 “GASKET CYLINDER HEAD”
• SunL Part Number: XF172MM-1001010 “GASKET, CYLINDER HEAD COVER”
• Diamo Part Number: XF172MM-1001010 “GASKET, CYLINDER HEAD COVER”
• QLink Part Number: 172MM-022010 “GASKET, CYLINDER HEAD”
