Description

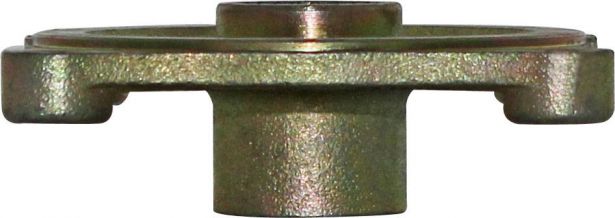

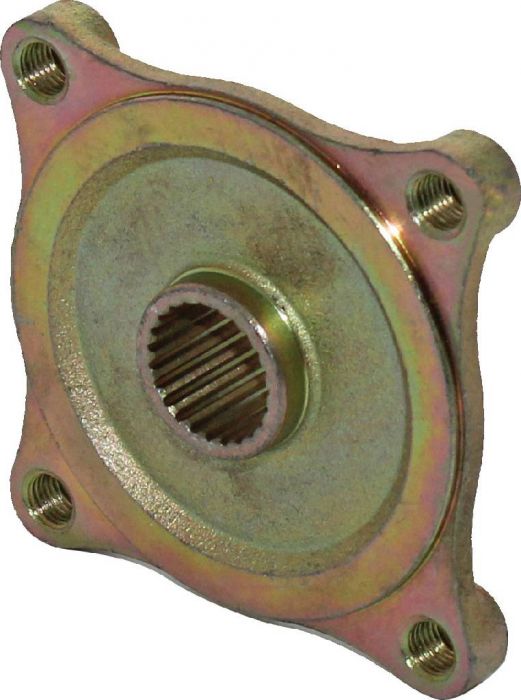

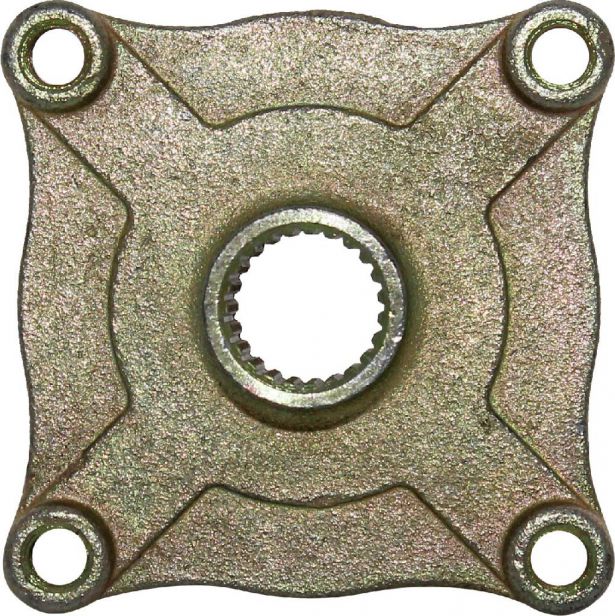

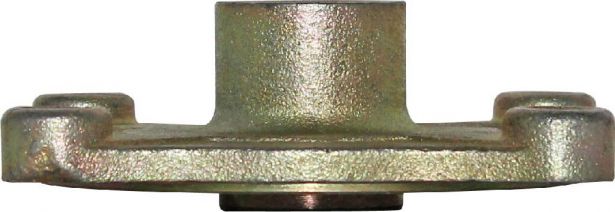

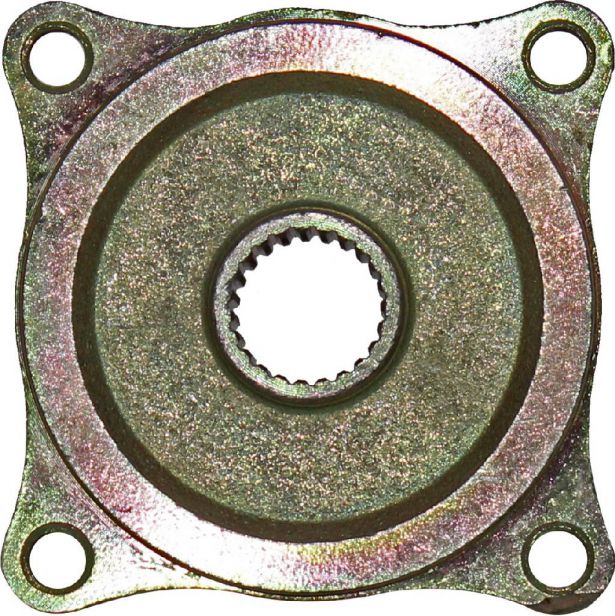

- 23 tooth axle hub most commonly used for (but not limited to) 50cc to 300cc ATVs.
- Total Length: 34mm
- Bolt Hole: M8
- Bolt Mount Across (center to center): 78.6mm
- Bolt Mount Diagonal(center to center): 107.6mm
- Axle Shaft Diameter: 23.8mm
Specifications
| Product Specifications | ||
|---|---|---|
| Inner Diameter (ID) | 22.7 mm | |
| Mounting Hole (centre-centre diagonal) | 107.6 mm | |
| Number of Splines | 23 | |
