Description

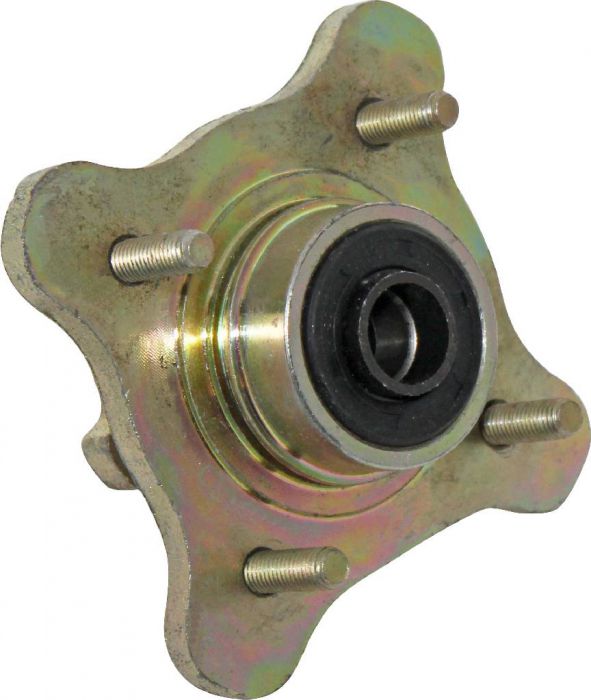

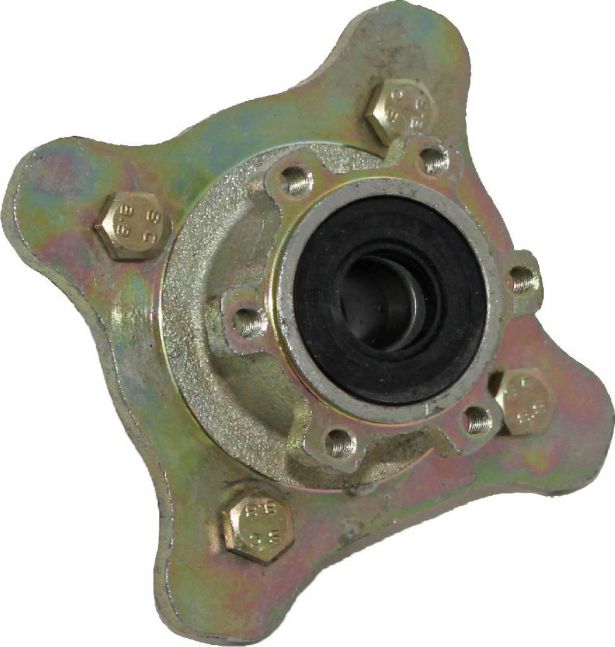

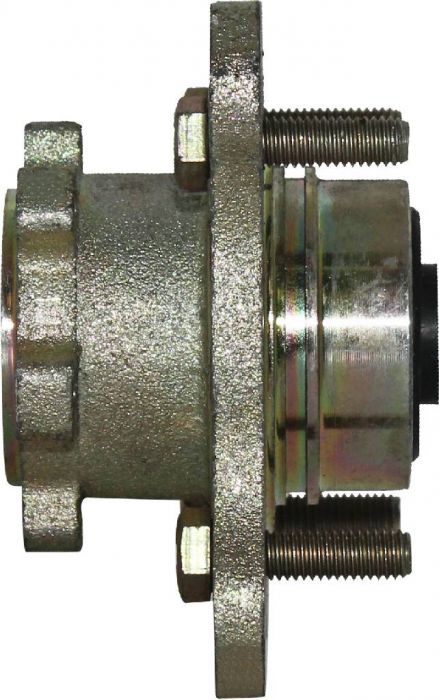

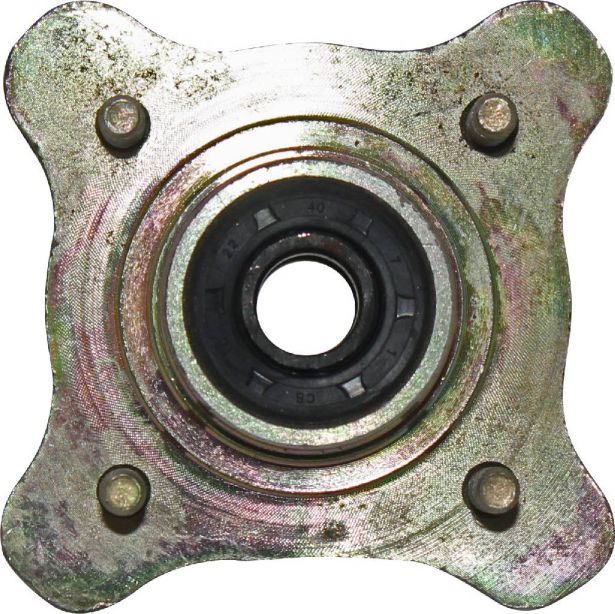

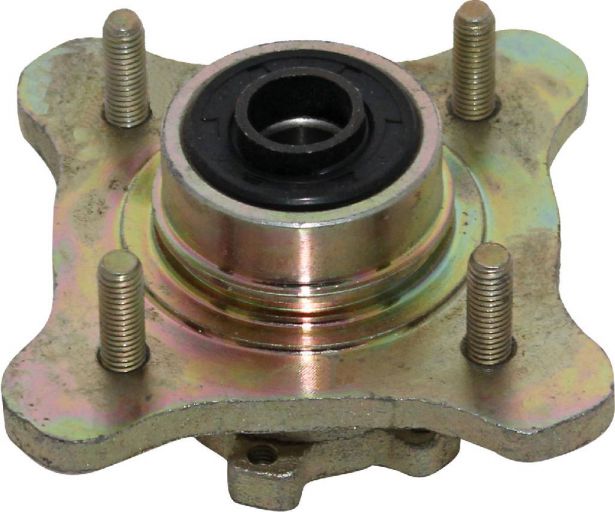

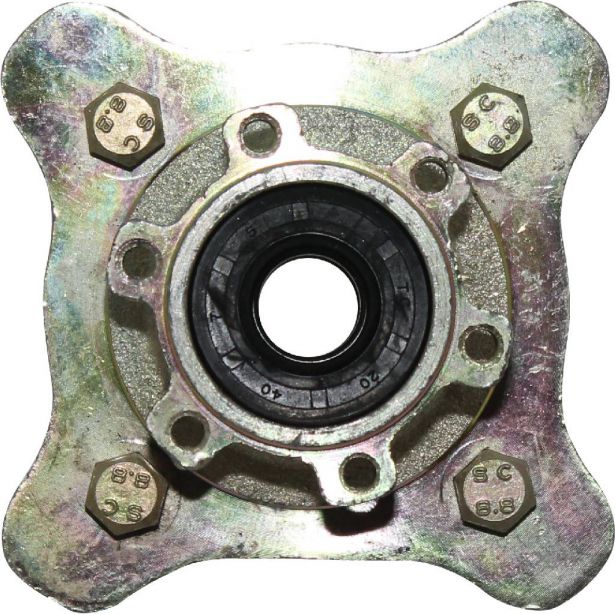

- Front steering axle hub most commonly used for (but not limited to) 50cc to 300cc ATVs. Approximate dimensions:
- Total Length: 62.9mm
- Bolt Stud Spacing (centre-centre): 62mm
- Bolt Stud Spacing (centre-centre diagonal): 88mm
- Bolt Stud: M8
- Rotor Mounting Holes: M6
- Rotor Mounting Hole Spacing (across): 57mm (centre to centre)
- Rotor Mounting Hole Spacing (side by side): 30mm (centre to centre)
- 70A4225 Steering Knuckle
- 90A2020 Rotor
Associated Parts:
