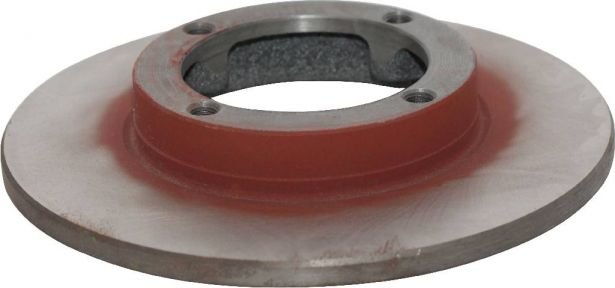

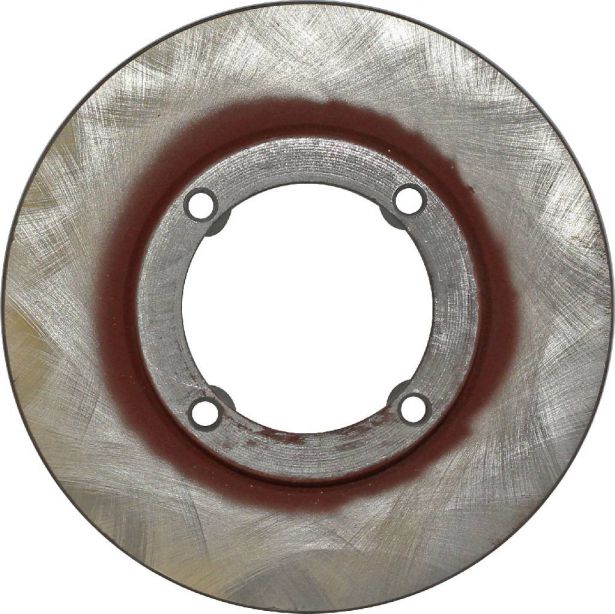

Brake Rotor - 4 Bolt 215mm 86mm Brake Disc, XY1100, Chironex 1000cc, 1100cc

Brake rotor / Brake disc. Commonly (but not exclusively) used for 600cc, 800cc, 1000cc and 1100cc engines. Applies to many brands and displacements of ATVs, UTVs and buggies. Popularly used in the Chironex Komodo 1000cc 1100cc dune buggy and Xingyang 1100cc dune buggy as well as many other clones, rebrands and similar displacement machines.

Common Chironex model name is primarily listed as "Chironex Komodo 1000 EFI", "Chironex Komodo 1100 EFI", "Chironex 1000cc Komodo Dune Buggy" and "Chironex 1100cc Komodo Dune Buggy". Common listed Chironex Komodo brake rotor / brake disc part number is F0803010 and listed as "FRONT BRAKE DISC" in their parts lists. Also applies to some variations of Chironex Alpha 1000cc UTVs.

Common Xingyang model name is primarily listed as "Komodo 1100 EFI", "Xingyang 1100cc EFI UTV", "Xingyang 1000cc EFI Dune Buggy" and "Xingyang 1100cc EFI Dune Buggy". Common listed XY brake rotor / brake disc part number is F0803010 and listed as "FRONT BRAKE DISC" in their parts lists. Also applies to some variations of their 1000cc UTVs.

Common Gio (Gio Motors / Giovanni) model name is primarily listed as "Gio Vyper 1000 EFI", "Gio Vyper 1100 EFI", "Gio 1000cc Vyper Dune Buggy" and "Gio 1100cc Vyper Dune Buggy". Common listed Gio brake rotor / brake disc part number is F0803010 and listed as "FRONT BRAKE DISC" in their parts lists. Also applies to some variations of Gio 1000cc and 1100cc products.

Approximate dimensions:

• Outer Diameter: 215mm
• Centre Hole: 85.8mm
• Thickness: 10.2mm
• Total Thickness: 33mm
• Mounting Holes: 8.9mm
• Mounting Hole Spacing (across): 102mm (center to center)
• Mounting Hole Spacing (side by side): 73mm (center to center)

Manufacturer Part Number:

• Manufacturer PN: F0803010
