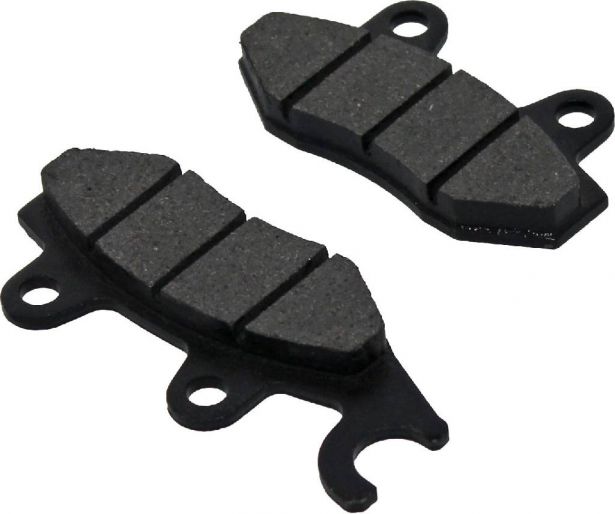

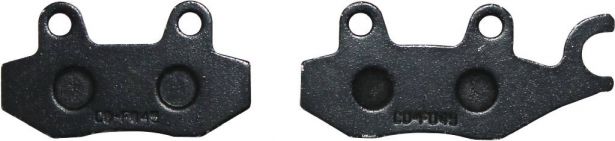

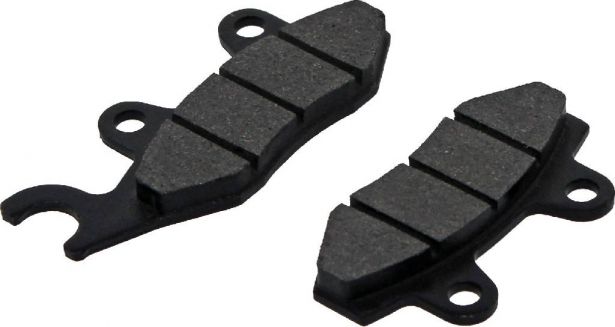

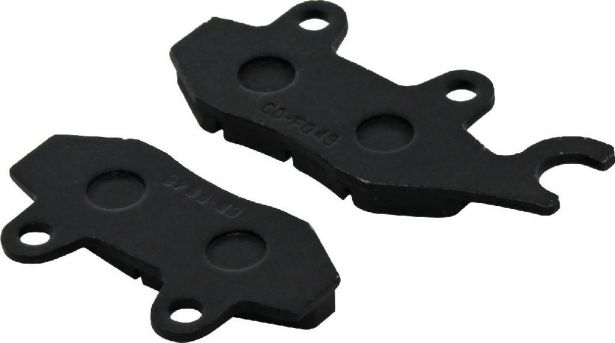

Brake Pads - UTV, Odes, 800cc, Front

These brake pads are commonly used for a wide range of ATVs and UTVs. Most popularly applies to the front brakes on Odes and Kangdi (Kandi) 800cc UTVs.

Common Odes model names consist of variations of "Odes 800cc UTV", "Odes 4x4 UTV" etc. Common listed Odes front brake pad part number is 09-0601006 and listed description is "Front brake pads".

Common Kandi (Kangdi) model names consist of variations of "Kandi 800", "Kangdi 800", "Kandi 800cc 4x4 UTV", "Kangdi 800cc 4x4 UTV" etc. Common listed Kandi front brake pad part number is 09-0601006 and listed description is "Front brake pads".

• Manufacturer PN: 09-0601006
• 44204-115-0000 Inner Pad
• 44318-115-0000 Outer Pad

Approximate Dimensions:

Large Pad:

• Total Length: 96.3mm
• Total Width: 42.1mm
• Alignment Holes: 6.8mm
• Alignment Hole Spacing: 40mm (center to center)

Small Pad:

• Total Length: 77mm
• Total Width: 42mm
• Alignment Holes: 6.7mm
• Alignment Hole Spacing: 40mm (center to center)
