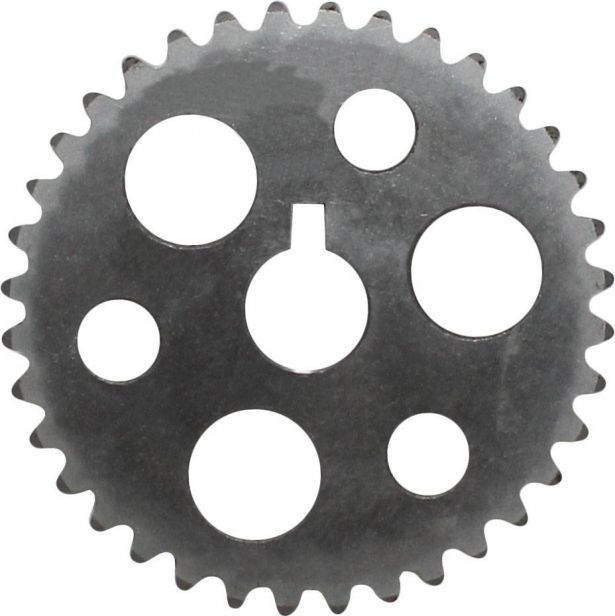

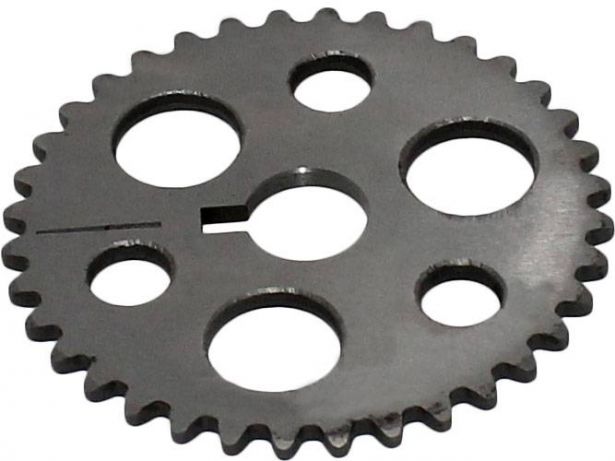

Camshaft Sprocket - Cam Gear, 36 Tooth, 250cc, 260cc, 300cc
Description
This 36 tooth camshaft gear applies to (and is not limited to) 150cc to 400cc engines. Most commonly used for 260cc and 300cc ATVs, dirt bikes, scooters, buggies and other motorized vehicles from a wide range of manufacturers.
Common Xingyue model names consist of variations of "Xingyue ST260 ATV", "Xingyue 260cc ATV", "XY ST260 ATV", "XY 260cc ATV" etc. Common listed Xingyue cam gear part number is 127004000010 and formal description as "DRIVEN GEAR CHAIN CAM".
Approximate Dimensions:
- Outside Diameter: 70.7mm
- Centre Hole Diameter: 13.8mm
- Mounting Hole (centre-centre): 33mm
- Bolt Hole: 5.2mm
- Thickness: 2.7mm
Manufacturer Part Number:
- Xingyue: 127004000010
Specifications
| Product Specifications | ||
|---|---|---|
| Bolt Hole | 5.2 mm | |
| Centre Hole Diameter | 13.8 mm | |
| Mounting Hole (centre-centre) | 33 mm | |
| Outside Diameter | 70.7 mm | |
| Thickness | 2.7 mm | |
| Manufacturer Part Numbers | ||
| Xingyue | 127004000010 | |
