Description

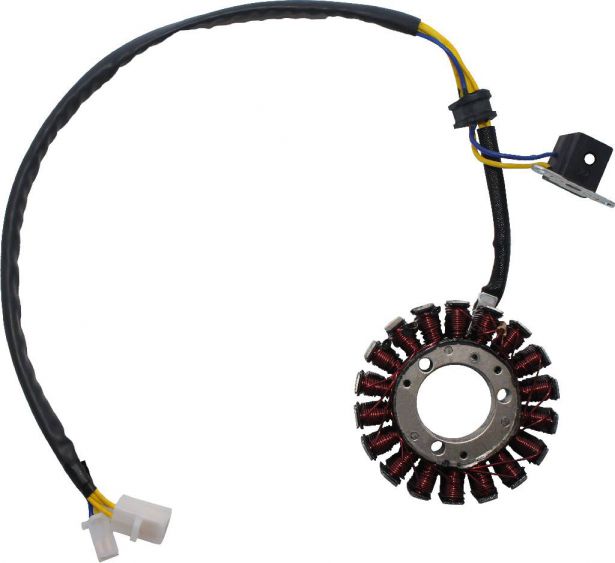

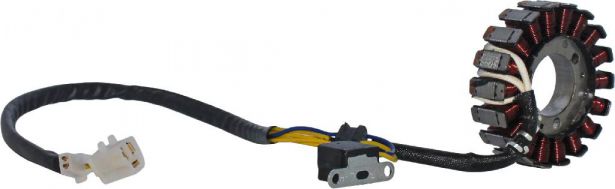

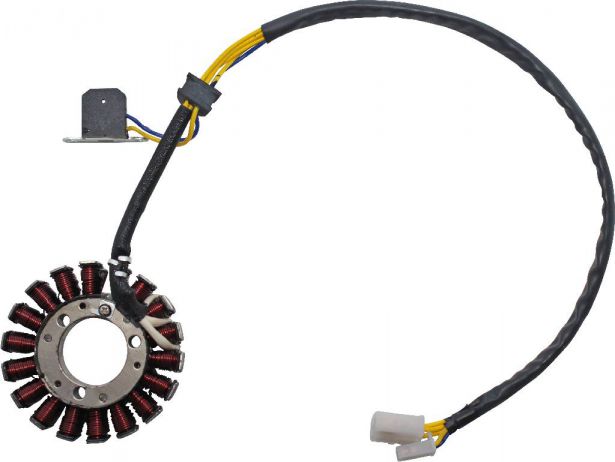

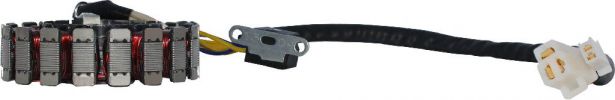

This stator / magneto coil applies to (and is not limited to) 150cc to 400cc engines. Most commonly used for 260cc and 300cc ATVs, dirt bikes, scooters, buggies and other motorized vehicles from a wide range of manufacturers.
Common Xingyue model names consist of variations of "Xingyue ST260 ATV", "Xingyue 260cc ATV", "XY ST260 ATV", "XY 260cc ATV" etc. Common listed Xingyue stator / magneto coil part number is 127004030010 and formal description is "MAGNETO COIL". Approximate dimensions:
- Outside Diameter: 103mm
- Centre Hole Diameter: 41mm
- Mounting Hole (centre-centre): 38.5mm
- Bolt Hole: 6mm
- Harness Length: 55cm
- Pickup Wire Length: 6cm
- Pickup Hole (centre-centre): 35mm
- Xingyue: 127004030010
Manufacturer Part Numbers:
Specifications
| Manufacturer Part Numbers | ||
|---|---|---|
| Xingyue | 127004030010 | |
Categories
These categories serve as labels for sorting products. See our FAQ for more details.
Parts |
Electrical |
Suggested Machines
This part is not guaranteed to work with these machines. See our FAQ for more details.
Xingyue (GS Moon) |
