Battery Management Systems (BMS)CapacitorsCDIs and ECUsChargersCigarette LightersCircuit BreakersControl Switches & PanelsControllersConvertersDiodesElectric Motors, Actuators & AssembliesFlashers & BuzzersFuses & Fuse BoxesHandle Bar & Brake SwitchesHorns and Horn buttonsIgnition CoilsInstrument Clusters & DisplaysKey Switches / Igntition SwitchesMagneto CylindersMedia Players and SpeakersPlugs, Outlets & CablesRectifiers / Voltage RegulatorsRelays / Starter RelaysRemote Alarms & StartersSafety Tethers & Kill CordsSensorsStarter/Carburetor WiresStartersStators / Magneto CoilsWiring Harnesses & AssembliesController - 48V, 350W, 17A, 60 or 120 Degree
Description

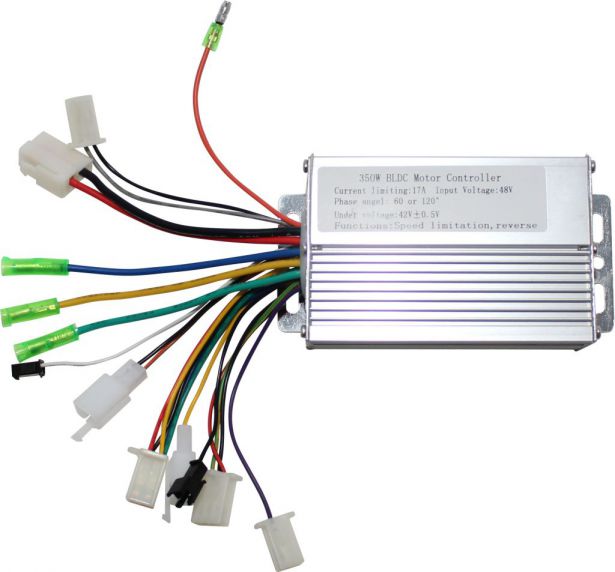

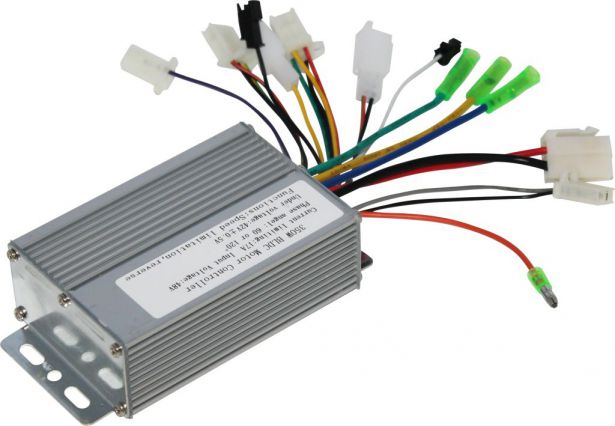

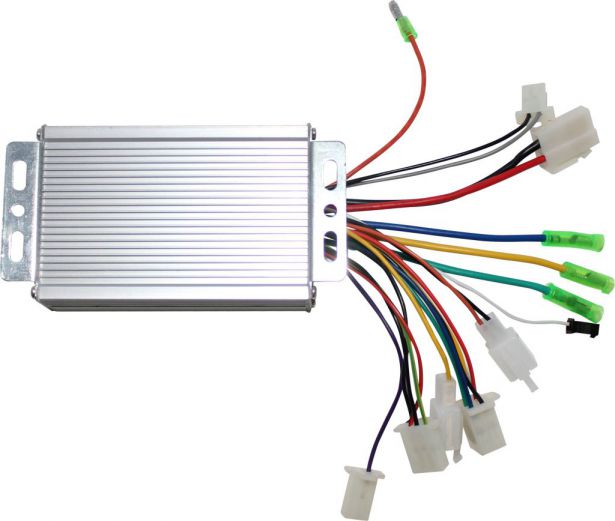

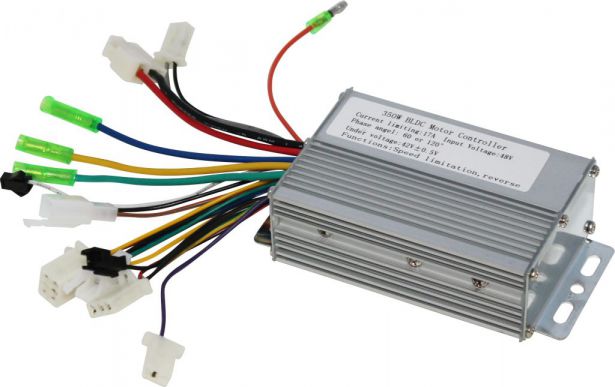

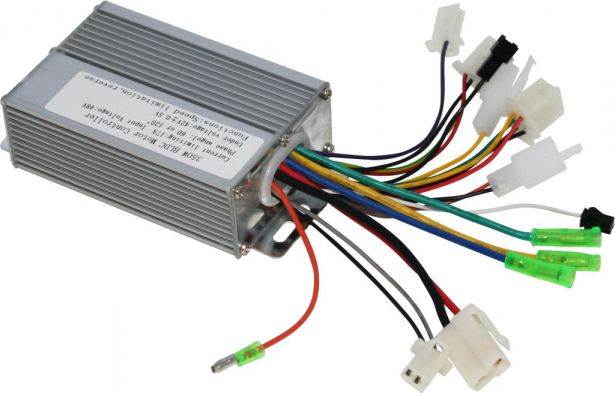

- This is a 48V, 17A controller. These types of controllers are commonly (though not exclusively) used for E-bikes, electric scooters and mobility scooters. Most commonly known as the primary controller unit for an array of mobility scooters, like the Gio (Giovanni) MS3 Mobility Scooter or similar variations.
- Input Voltage: 48V
- Wattage: 350W
- Current Limiting: 17A
- Phase Angle: 60 or 120
- Under Voltage Protection: 42V±0.5V
- Case Dimensions: 105mm x 70mm x 35mm
- Functions: Speed Limitation, Reverse

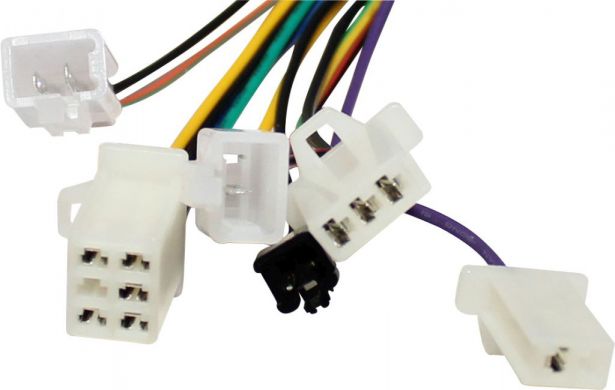

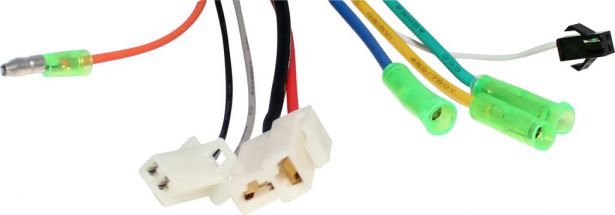

Specifications: - Power: Large Red & Black Wires With Connector
- E-Lock: Small Orange Wire With Green/Silver Connector
- High Level Brake: Small Yellow Wire with Connector
- Low Level Brake: 2 Wire Orange/Green & Black Wire with Connector
- Speed Shifting: 3 Wire Yellow, Green & Black with Connector
- Soft Studying: 2 Wires Grey & Black Connector
- Motor Phases: Green, Blue & Yellow with Green Connectors (individual)
- Throttle: 3 Wire Yellow/Green, Red/Black and Black Wires With Connectors
- Ignition: Orange Wire
- Motor Hall Sensor: 5 wire Yellow, Blue, Green, Red & Black Wires with Connector
- Ground Wire: 2 Wire Blue and Black connector
- Meter: Purple Wire with Connector
Specifications
| Product Specifications | ||
|---|---|---|
| Case Dimensions | 105mm x 70mm x 35mm | |
| Current Limiting | 17 A | |
| Functions | Speed Limitation, Reverse | |
| Input Voltage | 48 V | |
| Phase Angle | 60 or 120 | |
| Under Voltage Protection | 42V±0.5 V | |
| Wattage | 350 W | |
