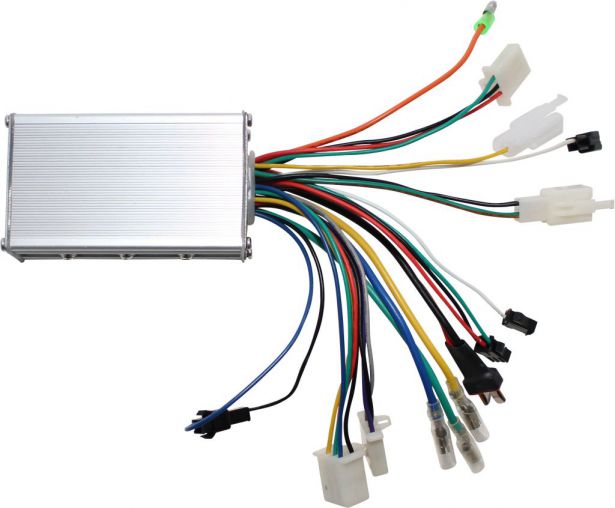

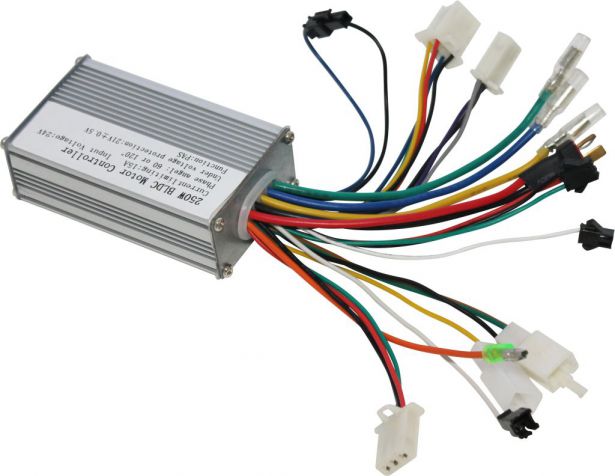

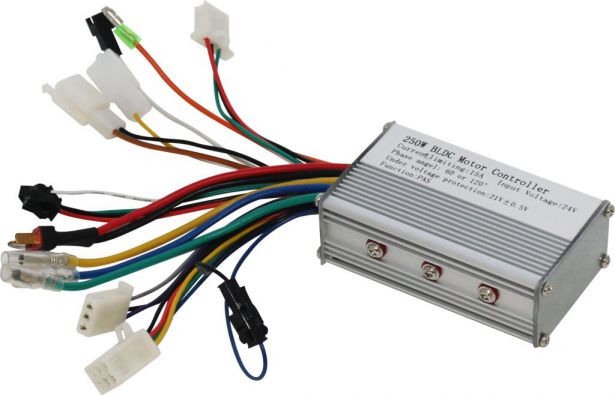

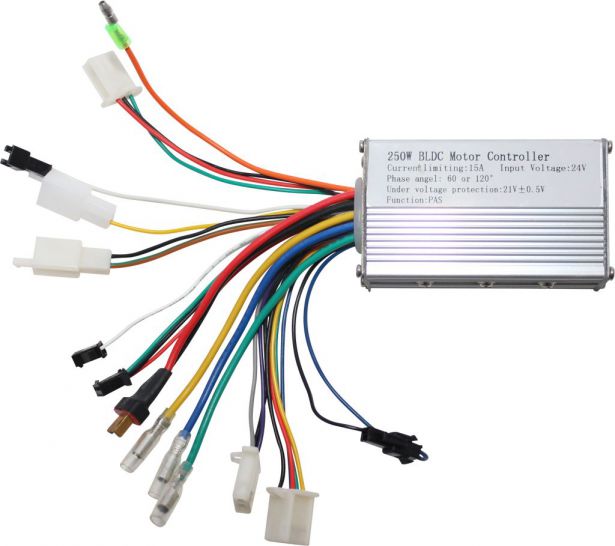

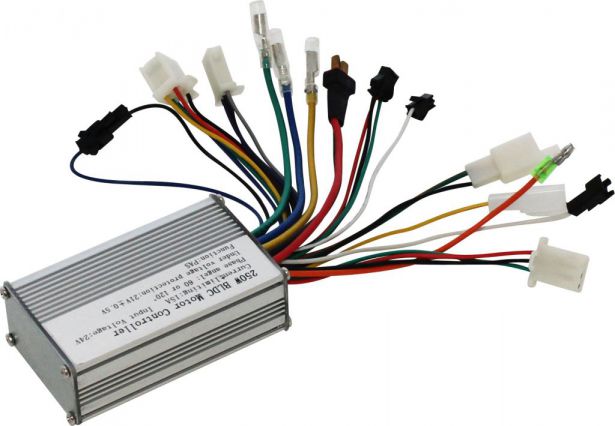

Battery Management Systems (BMS)CapacitorsCDIs and ECUsChargersCigarette LightersCircuit BreakersControl Switches & PanelsControllersConvertersDiodesElectric Motors, Actuators & AssembliesFlashers & BuzzersFuses & Fuse BoxesHandle Bar & Brake SwitchesHorns and Horn buttonsIgnition CoilsInstrument Clusters & DisplaysKey Switches / Igntition SwitchesMagneto CylindersMedia Players and SpeakersPlugs, Outlets & CablesRectifiers / Voltage RegulatorsRelays / Starter RelaysRemote Alarms & StartersSafety Tethers & Kill CordsSensorsStarter/Carburetor WiresStartersStators / Magneto CoilsWiring Harnesses & AssembliesController - 24V, 250W, 15A, 60 or 120 Degree
Description
- This is a 24V, 15A controller. These types of controllers are commonly (though not exclusively) used for E-bikes, electric scooters and electric mobility scooters with hall configuration.
- Input Voltage: 24V
- Wattage: 250W
- Current Limiting: 15A
- Phase Angle: 60 or 120
- Under Voltage Protection: 21V±0.5V
- Case Dimensions: 90mm x53mm x 30mm
- Matching Motor: DC Brushless
- Funtion: PAS
Specifications:
Specifications
| Product Specifications | ||
|---|---|---|
| Case Dimensions | 90mm x53mm x 30mm | |
| Current Limiting | 15 A | |
| Funtion | PAS | |
| Input Voltage | 24 V | |
| Matching Motor | DC Brushless | |
| Phase Angle | 60 or 120 | |
| Under Voltage Protection | 21V±0.5 V | |
| Wattage | 250 W | |
