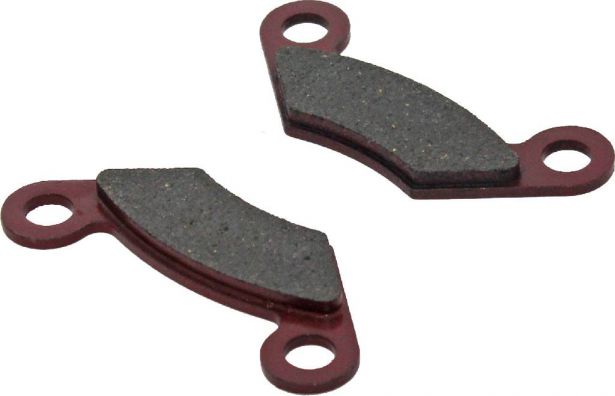

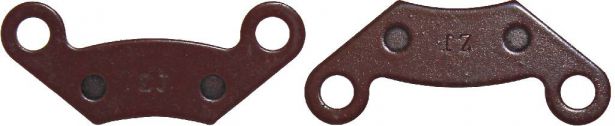

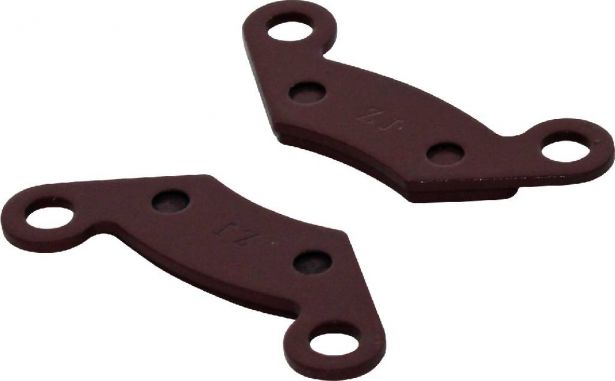

Brake Pads - 500cc, 550cc (2pcs)
Brake pads, heavy construction. These brake pads will far outlast the generic reproductions. Most commonly used for (but not limited to) 500cc and 550cc EFI engines such as the Chironex Bandito 550cc EFI ATV, GIO Rock Liner 550cc EFI ATV, Buyang 550cc EFI ATV as well as many other clones, rebrands and similar displacement machines.
Common Chironex model name is primarily listed as "Chironex 550cc Bandito", "Chironex 550 Bandito EFI ATV" and "Chironex XT 550 EFI". Common listed Chironex brake pad part number is 126.96.36.19970 and listed as "BRAKE FRICTIONAL PLATE" in their parts lists. Also applies to some variations of Chironex Komodo 500 machines.
Common Gio (giovanni aka Gio Motors) model name is primarily listed as "Gio 550cc Rock Liner", "Gio 550 Rock Liner EFI ATV" and "Gio 550 EFI 2-up".
Common Buyang model name is primarily listed as "Buyang 550cc Bandito", "Buyang 550 EFI ATV", "Buyang N550 EFI ATV", "Buyang 550D", "Buyang FA-K550 ATV", "Feishen 550 ATV" and "Feishen FA-K550, FA-N550". Common listed Buyang N550 brake pad part number is 188.8.131.5270 and listed as "BRAKE FRICTIONAL PLATE" in their parts lists.
- Manufacturer PN: 184.108.40.20670
- Total Length: 97mm
- Total Width: 40.4mm
- Alignment Holes: 10.3mm
- Alignment Hole Spacing: 75mm (center to center)
|Alignment Hole Diameter||10.3 mm|
|Alignment Hole Spacing||75mm (center to center)|
|Total Length||9.7 cm|
|Total Width||40.4 mm|
