Product Number:
70A4555
Availability:
In Stock
Price:
$329.99 CAD


  Description

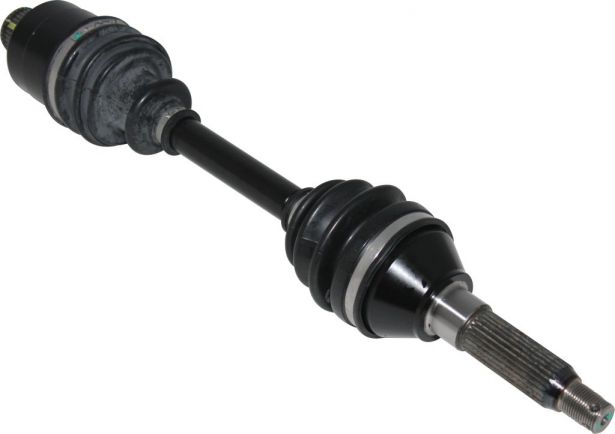

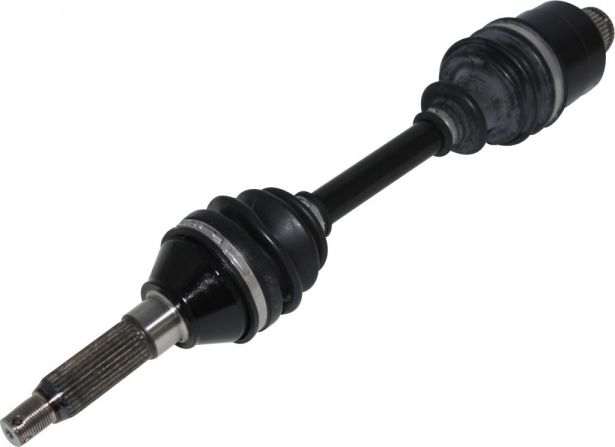

CV joint axle for (but not limited to) 150cc to 600cc ATVs. Manufacturer part number 3.1.09.0023 (sometimes also referred to as 3.1.09.0020). Applies primarily to (but not limited to) Buyang 300cc FA-H300, Gio Bear 300cc, Daymak Grunt 300cc, Midwest 300cc, ZMC Titan 300cc, Chironex 300cc Bandito, Asun 300cc Bandito as well as the 550cc 4x4 ATV from the same manufacturer and may apply to other similar variations of 300cc 4x4 ATVs from companies like Linhai, Liangzi, Kangdi and many more. This machine has been produced since the early 2000's and applies to the 2x4, 4x4 and 4x4 IRS (Independent Rear Suspension) models. Also commonly used for Linhai 250cc and 260cc models as well as some other 250cc, 260cc and 300cc models - JCL Buyang and Xingyue 250cc, 260cc and 300cc ATVs as well as several scooters.
  • Manufacturer PN: 3.1.09.0023
  • Manufacturer PN: 3.1.09.0020
  • Total Length: 51cm
  • Drive Shaft Length: 10cm
  • Drive Shaft Diameter: 23.3mm
    Transaxle Side (Inboard Side):
  • Housing Diameter: 69mm
  • Housing Length: 55mm
  • Spline Diameter: 34.3mm
  • Spline Length: 33.5mm
  • Splines: 34
    Outboard Side:
  • Spline Diameter: 26.5mm
  • Spline Length: 68mm
  • Splines: 24
  • Castle Nut: M20
Axle - CV Joint, 150cc to 600cc, ATV, 300cc, 550cc, 2x4, 4x4 and 4x4 IRS, Buyang, Feishen
Axle - CV Joint, 150cc to 600cc, ATV, 300cc, 550cc, 2x4, 4x4 and 4x4 IRS, Buyang, Feishen
Axle - CV Joint, 150cc to 600cc, ATV, 300cc, 550cc, 2x4, 4x4 and 4x4 IRS, Buyang, Feishen
Axle - CV Joint, 150cc to 600cc, ATV, 300cc, 550cc, 2x4, 4x4 and 4x4 IRS, Buyang, Feishen
Axle - CV Joint, 150cc to 600cc, ATV, 300cc, 550cc, 2x4, 4x4 and 4x4 IRS, Buyang, Feishen

These categories serve as labels for sorting products. See our FAQ for more details.

Parts

Body

This part is not guaranteed to work with these machines. See our FAQ for more details.

Asun

Buyang (Feishen)

Chironex

Daymak

Linhai

Xingyue (GS Moon)

ZMC
