Product Number:
30A9555
Availability:
In Stock
Price:
$399.99 CAD


  Description

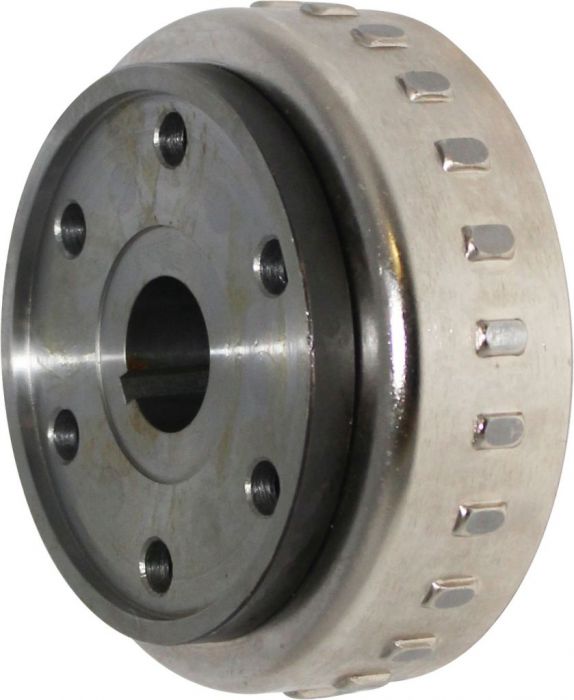

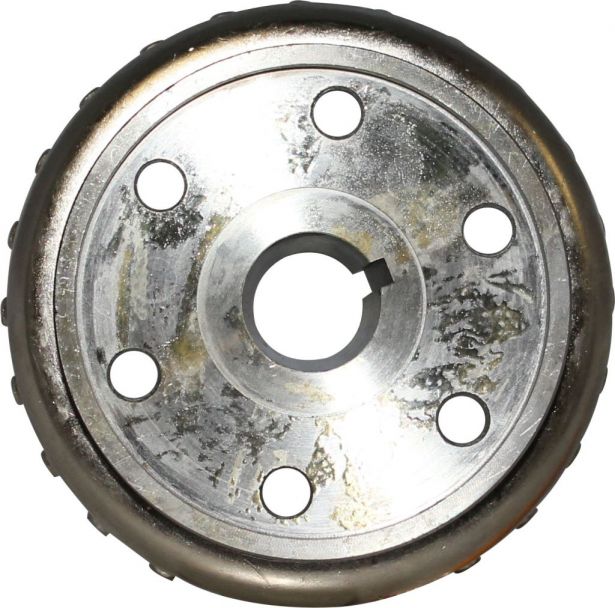

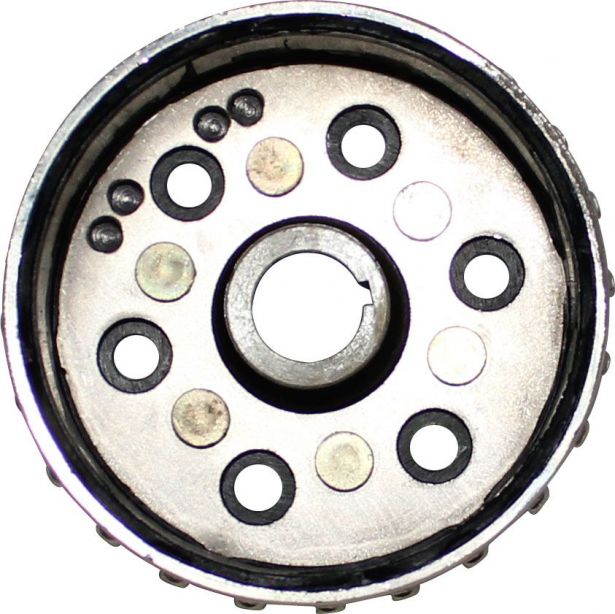

Magneto cylinder aka stator housing for 500cc, 550cc EFI (Electronic Fuel Injected) ATVs. Most commonly used for (but not limited to) Chironex Bandito 550cc EFI ATV, GIO Rock Liner 550cc EFI ATV, Buyang 550cc EFI ATV as well as many other clones, rebrands and similar displacement machines.

Common Chironex model name is primarily listed as "Chironex 550cc Bandito", "Chironex 550 Bandito EFI ATV" and "Chironex XT 550 EFI". Common listed Chironex Bandito magneto cylinder part number is 2.1.14.0580 and listed as "STATOR ASSY" in their parts lists. Also applies to some variations of Chironex Komodo 500 machines.

Common Gio (giovanni aka Gio Motors) model name is primarily listed as "Gio 550cc Rock Liner", "Gio 550 Rock Liner EFI ATV" and "Gio 550 EFI 2-up".

Common Buyang model name is primarily listed as "Buyang 550cc Bandito", "Buyang 550 EFI ATV", "Buyang N550 EFI ATV", "Buyang 550D" and "Buyang FA-K550 ATV". Common listed Buyang N550 magneto cylinder part number is 2.1.14.0580 and is listed as "FLYWHEEL ASSY" in their parts lists.

  • Manufacturer PN: 2.1.14.0580
  • Inner Diameter (ID): 105.5mm
  • Outer Diameter (OD): 119.2mm
  • Overall Height: 46.3mm
  • Center Hole Mount (Tapered): 26.7/20mm
  • Mounting Holes (center - center) (Side by Side): 75mm
  • Mounting Holes (center - center) (Across): 35mm
  • Mounting Holes: 9mm
