Magneto Cylinder - 150cc to 400cc, ATV, 300cc, 2x4, 4x4 and 4x4 IRS, Buyang, Feishen

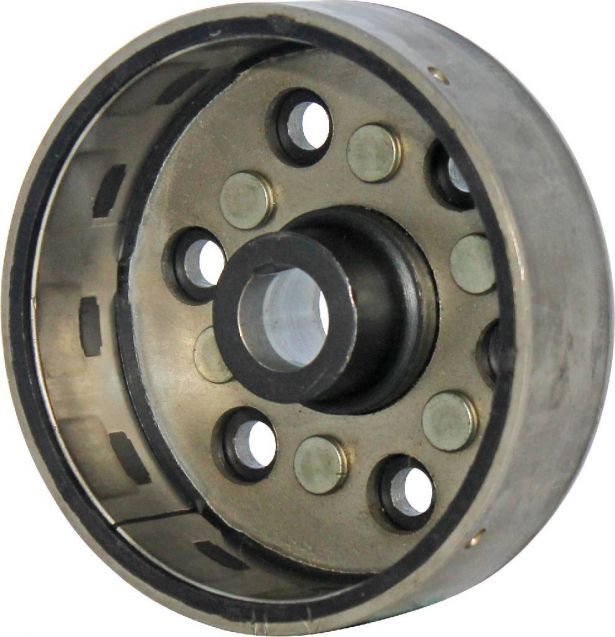

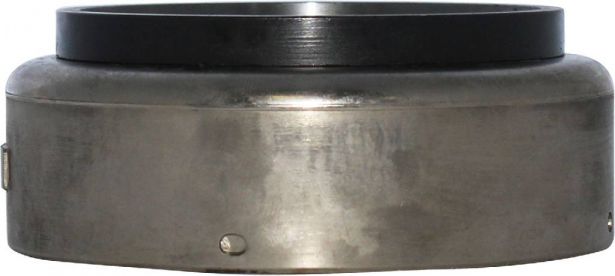

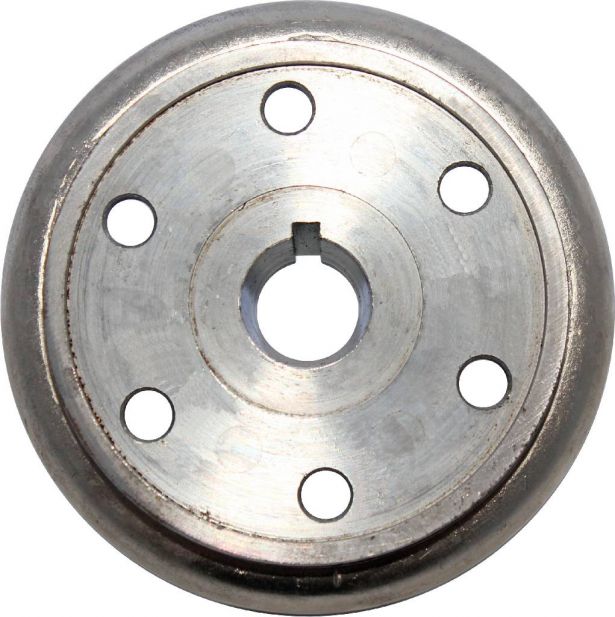

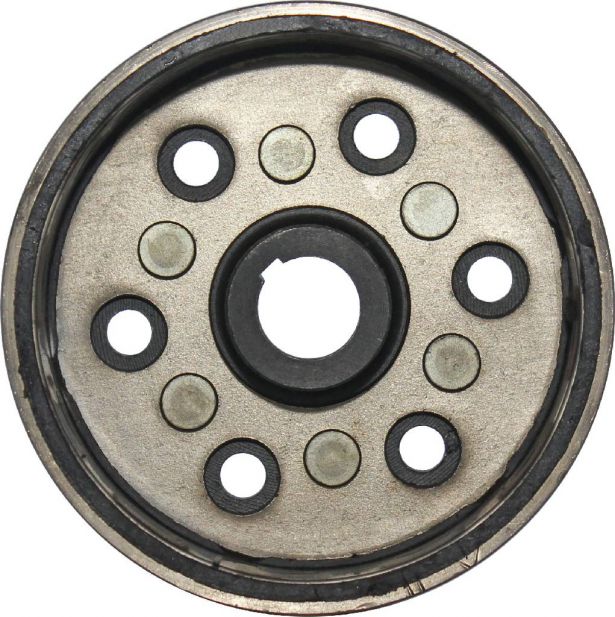

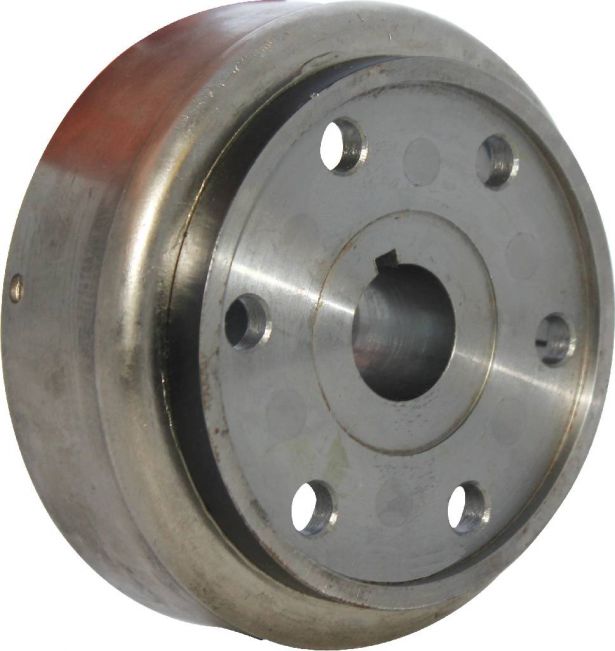

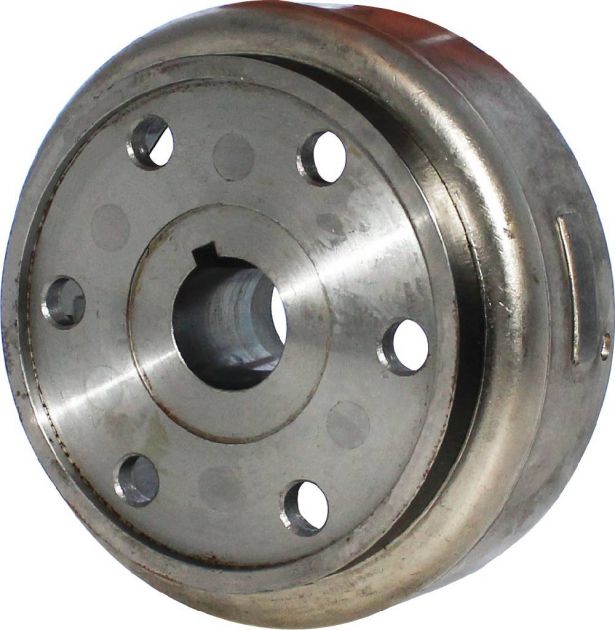

Magneto cylinder / stator housing for (but not limited to) 300cc to 400cc ATVs, dirt bikes, scooters, buggies and other powersports products. Manufacturer part number 2.1.01.2020. Applies primarily to (but not limited to) Buyang 300cc 4x4 ATV, Gio Bear 300cc, Daymak Grunt 300cc, Midwest 300cc, ZMC Titan 300cc, Chironex 300cc Bandito, Asun 300cc Bandito and may apply to other similar variations of 300cc 4x4 ATVs from companies like Linhai, Liangzi, Kangdi and many more. This machine has been produced since the early 2000's and applies to the 2x4, 4x4 and 4x4 IRS (Independent Rear Suspension) models. Also commonly used for Linhai 250cc and 260cc models as well as some other 250cc, 260cc and 300cc models - JCL Buyang and Xingyue 250cc, 260cc and 300cc ATVs as well as several scooters.

Common Buyang model name is primarily listed as "Buyang 300cc ATV", "Buyang FA300 ATV", "Feishen FA-H300, FA-D300-4WD, FA-D300-2WD", and generally "Feishen 300cc ATV". Common listed Buyang FA-H300 magneto cylinder / stator housing part number is 2.1.01.2020 and listed as "ROTOR ASSY" in their parts lists.

• Manufacture PN: 2.1.01.2020

• Inner Diameter (ID): 105.4mm
• Outer Diameter (OD): 119.2mm
• Overall Height: 46.6mm
• Center Hole Mount (Tapered): 24.6/20mm
• Mounting Holes (center - center) (Side by Side): 75mm
• Mounting Holes (center - center) (Across): 35mm
• Mounting Holes: 9mm
