Clutch - Driven Pulley with Clutch Bell, Honda, 125cc, 19 Spline
Description

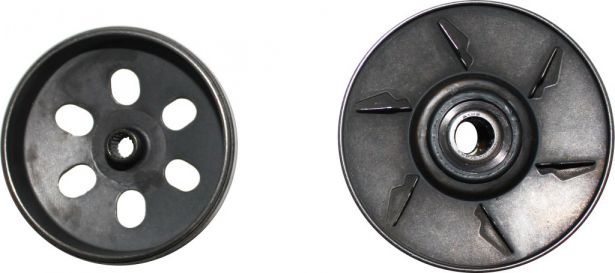

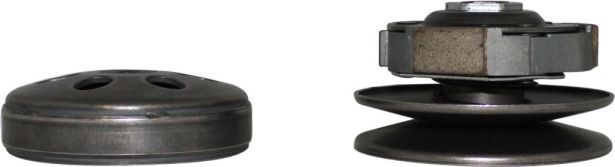

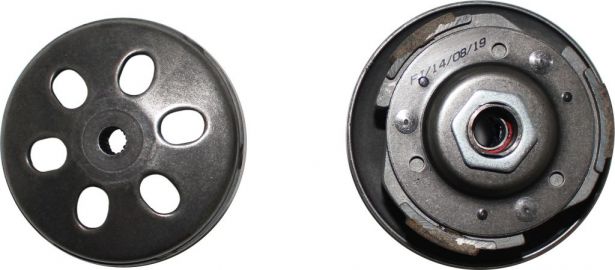

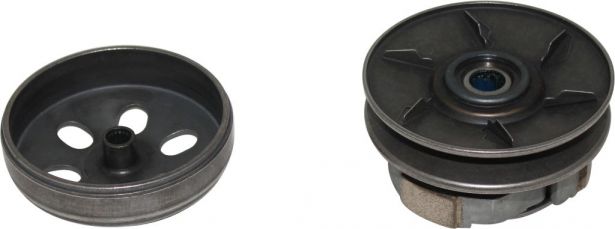

- Complete rear pulley clutch assembly, bell, torque driver and plate applies to (but is not limited to) Honda 125 (belt drive) air cooled ATV engines.
- Outside Diameter: 136.3mm
- Inside Diameter: 124.8mm
- Centre Hole Diameter: 14.7mm
- Thickness: 42mm
Approximate Dimensions Clutch Bell: - Outside Diameter: 142mm
- Bearing: HK202918RS
Approximate Dimensions Torque Convertor Plates: - Total Height: 85.9mm
Approximate Dimensions:
