Product Number:
90D5115
Availability:
In Stock
Price:
$44.99 CAD


  Description

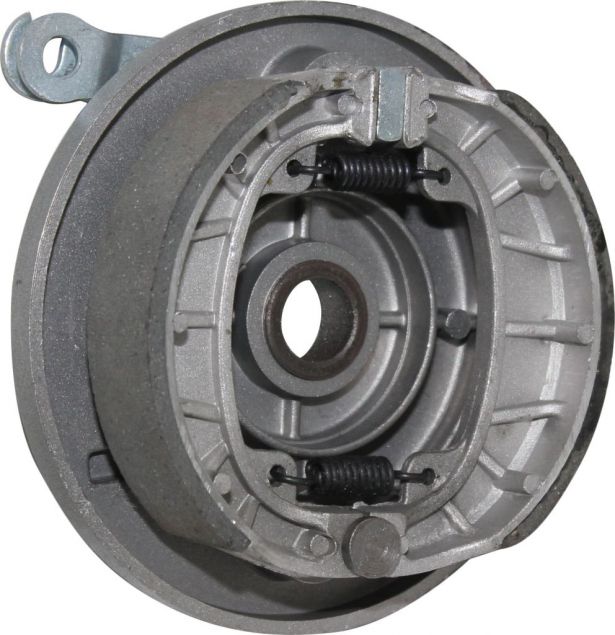

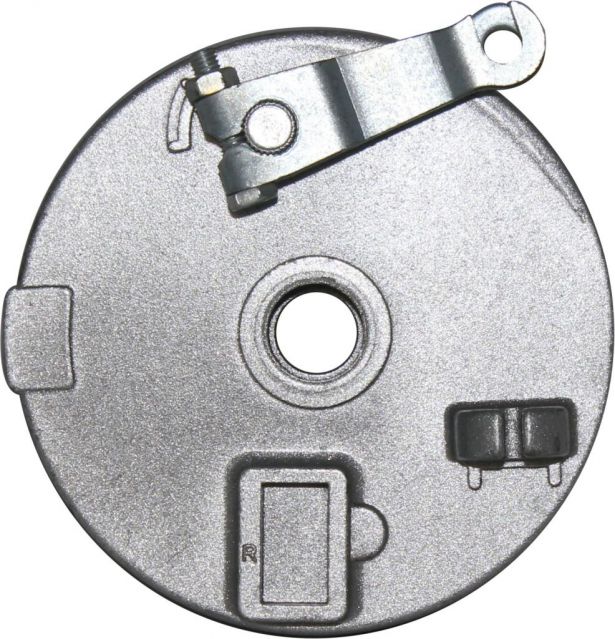

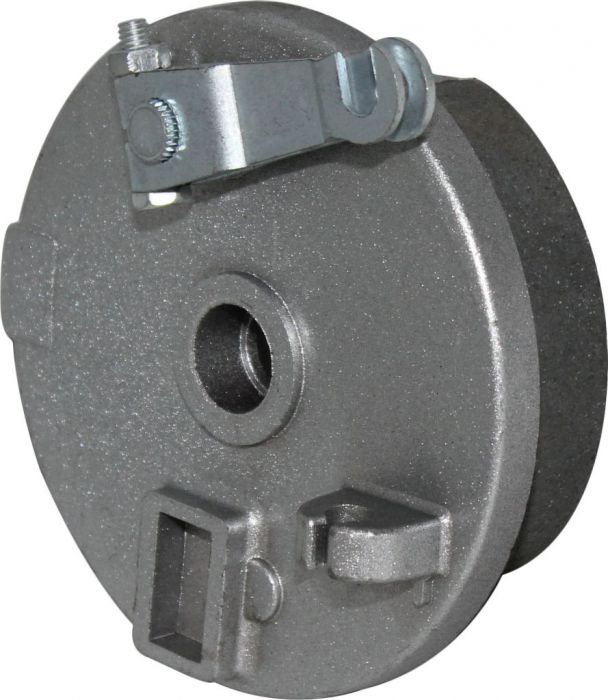

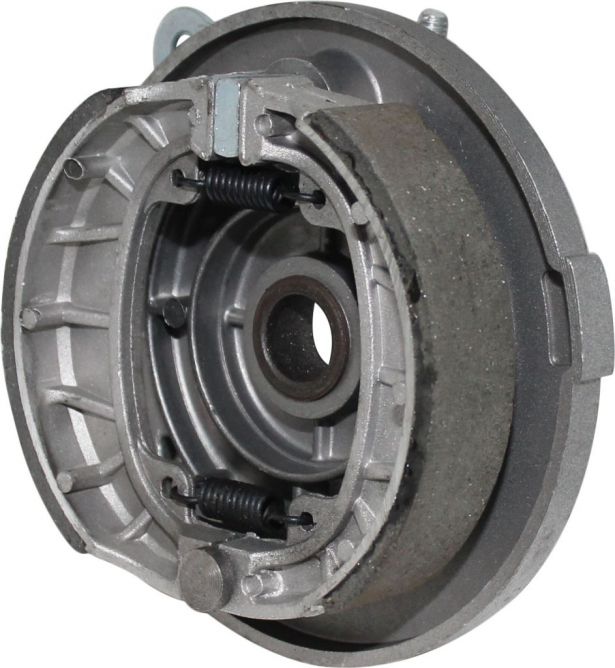

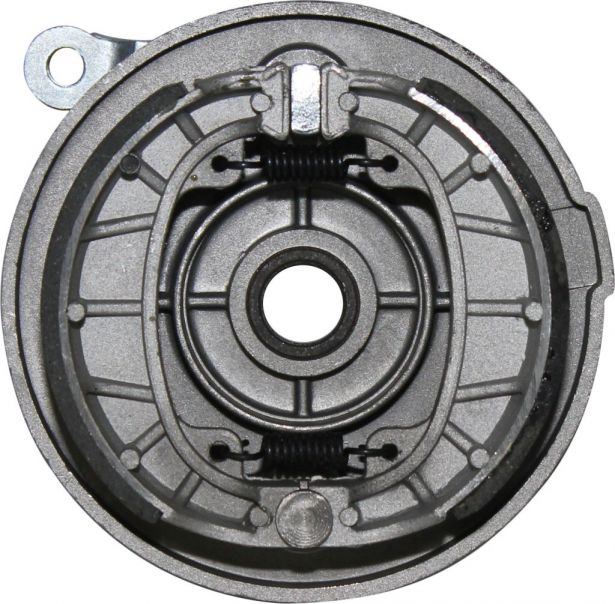

Drum Brake Backing plate. Most commonly (but not exclusively) applies to 50cc to 250cc ATV's. This assembly includes the backing plate, brake shoes, actuator cam, spring and lever. This assembly works with brake shoe 90A5010.
  • Mount: Right
  • Center Mount: 19.97/17.97mm
  • Outer Dimensions: 127.7mm
  • Armature Cable Mount (ACM): 8mm
    Associated Parts:
  • 90D5010 Brake Shoe
