Description

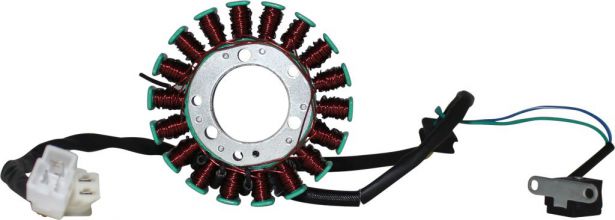

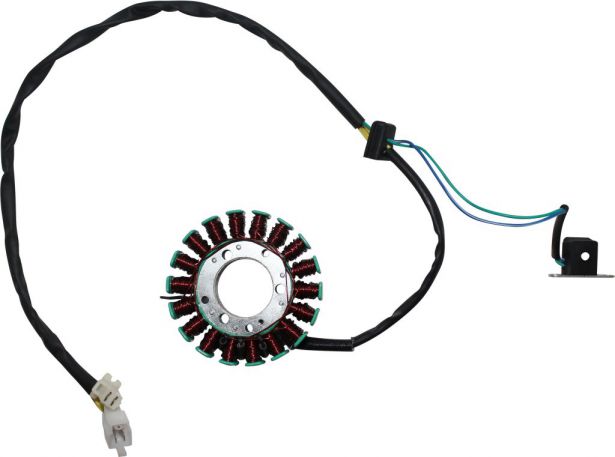

- Stator / Magneto Coil - 18G. This coil works on (but not limited to) the 250cc ATV's. Stator has one 2 wire male plug and one 3 wire female plug. Approximate dimensions:
- Outside Diameter: 102mm
- Centre Hole Diameter: 38mm
- Mounting Hole (centre-centre): 41.6mm
- Bolt Hole: 6.4mm
- Harness Length: 77cm
- Pickup Wire Length: 21cm
- Pickup Hole (centre-centre): 35mm
