Description

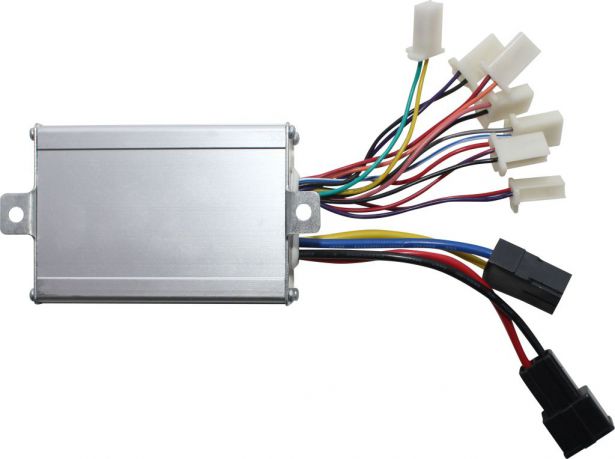

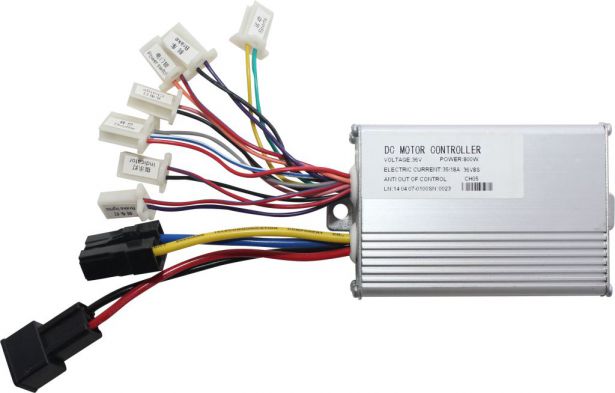

- This is a 36V, 18A, brush / brushed controller. Voltage: 36V, Power: 500W, Electric Current 35/18A. Case dimensions are 9.3cm x 6.5cm x 3.1cm (LxWxH). These types of controllers are commonly (though not exclusively) used for electric scooters, mobility scooters, dirt bikes, ATVs and other electric powersports or personal transportation products.
Specifications
| Product Specifications | ||
|---|---|---|
| Case Dimensions | 93mm x 65mm x 31mm | |
| Current Limiting | 18 A | |
| Electric Current | 35/18 A | |
| Input Voltage | 36 V | |
| Wattage | 800 W | |

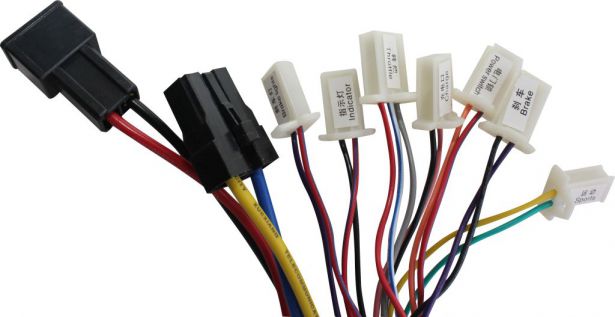

| Wiring | ||
| Brake | BLACK, PURPLE | |
| Brake Lights | RED/BLUE, PURPLE | |
| Charge | PINK, BLACK | |
| Indicator | RED/BLUE, BLACK | |
| Power Switch | RED/BLUE, PEACH | |
| Sports | YELLOW, GREEN | |
| Throttle | WHITE/BLUE, GREY, RED | |
| Other 1 | RED, BLACK | |
| Other 2 | BLUE, YELLOW | |
