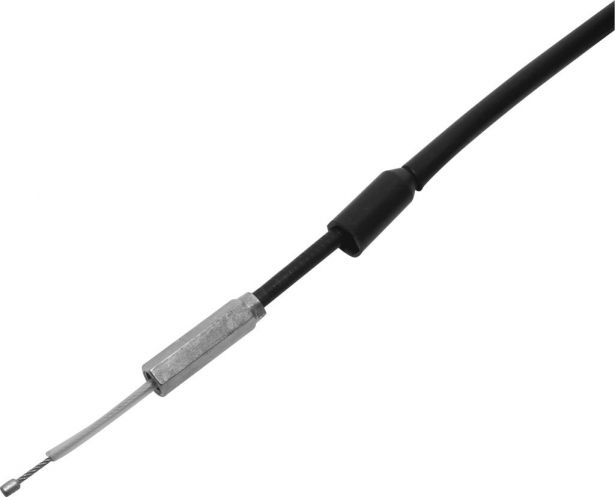

Brake CablesChoke CablesClutch CablesDifferential CablesGear Shift CablesSpeedometer CablesThrottle CablesTrunk & Latch CablesThrottle Cable - CF Moto, CF188, 500cc
Description
This throttle cable is typically found in the Handlebar (2) section of several part manuals. Commonly used for but not limited to 4-stroked water cooled CF188 / 500cc engines. It is most popularly known for its use in CF Moto C500 ATV / CF500 Atlas / CF500 CF188 / CF500 CF188-B / CF500 CForce X5 / CF500 XL ONE / CF500-5 Rancher / CF500-5A / CF500-5B X500 / CF500-5C / CF500-A CForce X5 / CF500-D CForce 500 / CForce 500 ONE / CForce 520 / Terrain 500 / CF500-2A Long / CF500-A Short / Terralander 500 CForce 500 / Terrain 500, GOES 520 MAX / 520 / 525 / 525 MAX, Explorer Atlas / Atlas 500 2x4 COMPACT / Everest 500 4X4 XL / Atlas 500 4X4 XL / Atlas 500 4x4 EDITION, Powermax Chase 500, Diamo Adventure 500 ATV, Quadzilla Terrain 500, Journeyman Gladiator RX530 / Gladiator RX510 / Gladiator X5 / X5-A Valex, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.
Approximate Dimensions:
- Total Core Wire Length: 950mm (37.40”)
- Sheath Length (inline adj. at min.): 835mm (32.87”)

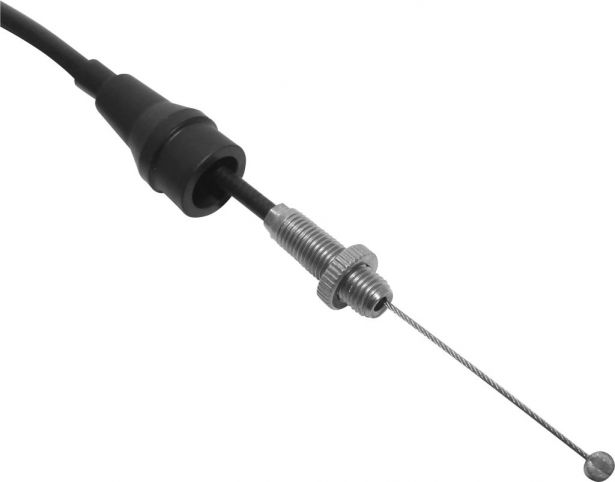

- Thread Type: M10
- Cable Travel Length: 75mm (2.95”)
- Cable Stops: 5.9mm (0.23”), 2.9mm (0.11”)
Manufacturer Part Numbers:
- CF Moto Part Numbers: 9010-100510, 901-10.05.10 “THROTTLE CABLE”
- GOES Part Number: 9010-100510 “THROTTLE CABLE”
- Explorer Part Number: 901-10.05.10 “THROTTLE CABLE”
- Powermax Part Number: 901-10.05.10 “THROTTLE CABLE”
- Diamo Part Number: 08-038-0419 “THROTTLE CABLE”
- Journeyman Part Number: 9010-100510 “THROTTLE CABLE”
Specifications
Product Specifications | ||
---|---|---|
Cable Stops | 5.9mm, 2.9mm | |
Cable Travel Length | 7.5 cm | |
Sheath Length | 83.5cm (inline adj. at min.) cm | |
Thread Type | M10 | |
Total Core Wire Length | 95 cm |
