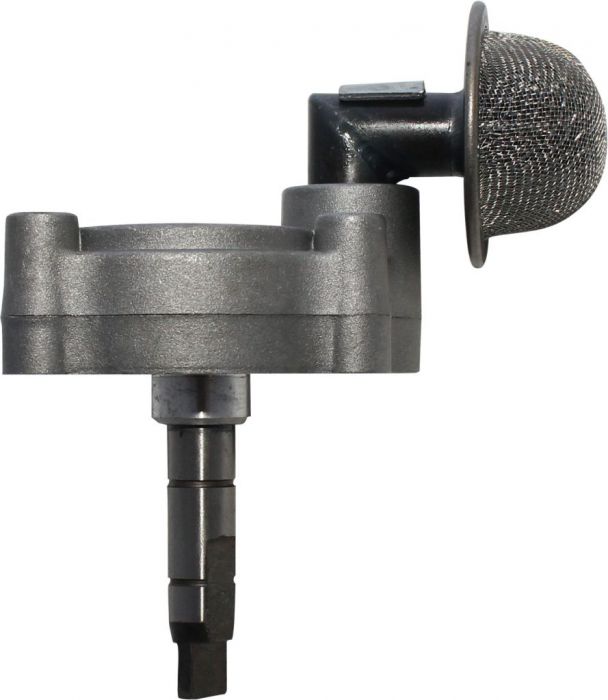

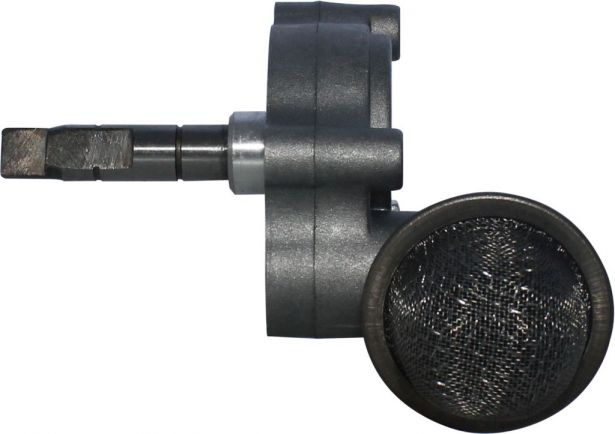

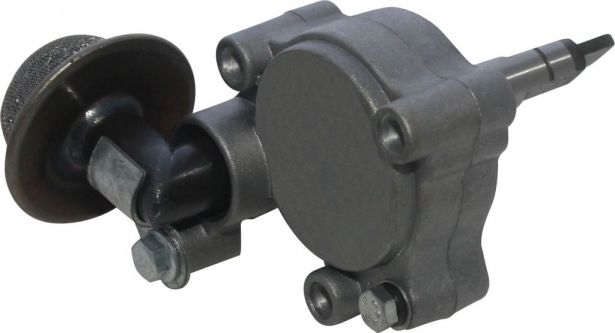

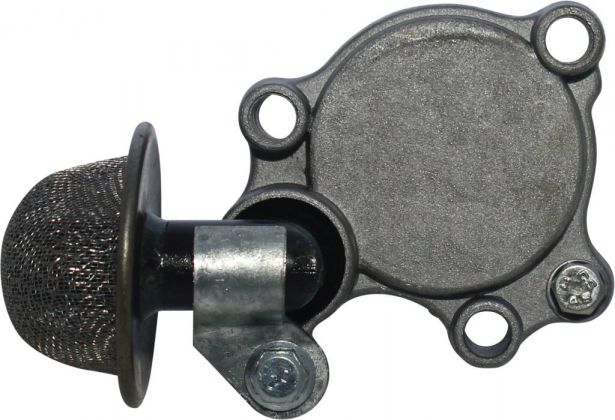

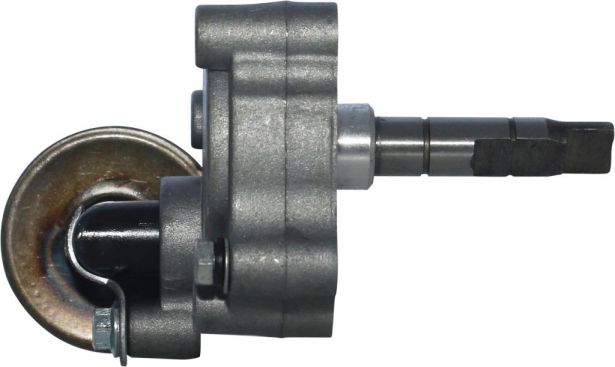

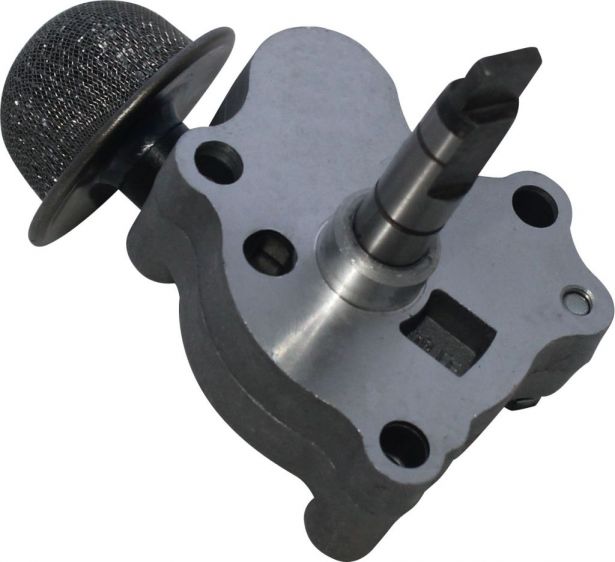

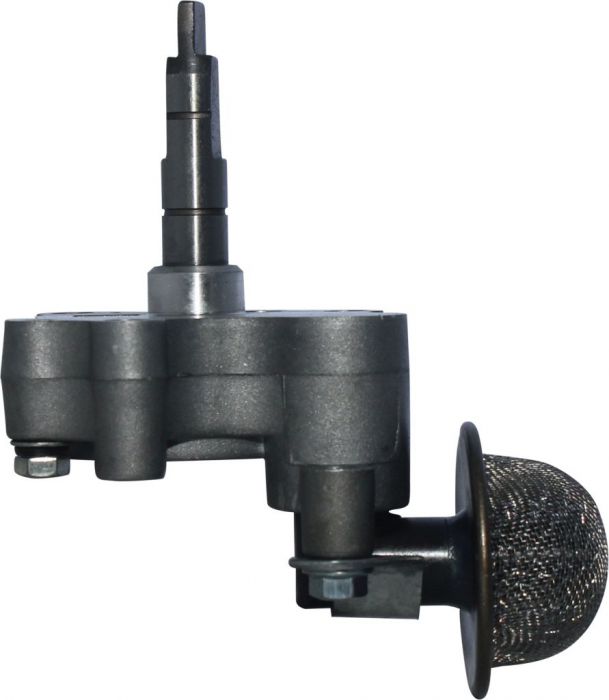

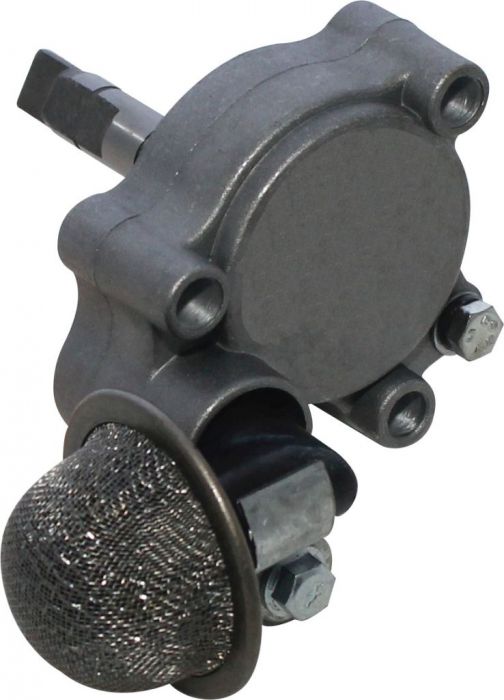

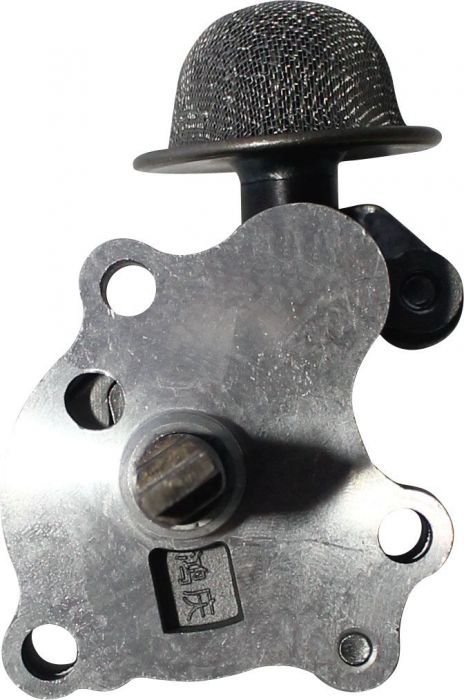

Oil Pump - CF Moto, Linhai, Hammerhead, Chironex, CF188, 196S, 400cc, 500cc, 600cc, 625cc, 800cc

This genuine oil pump is typically found in the Oil Pump section of several part manuals. Commonly used for but not limited to 4-stroked water cooled CF188 / 196S / 400cc, 500cc, 600cc, and 625cc engines. It is most popularly known for its use in CF Moto 500cc CF500 UTV (Rancher) / CF400AU-L CForce 450L / CF500 ATV / CF500 AllRoad 500 / CF500 Atlas /CF500 CF188 / CF500 CF188-A / CF500 CF188-B / CF500 CForce X5 / CF500 XL ONE / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-5 Rancher / CF500-5A / CF500-A CForce X5 / CF500AU-6L CForce 550 / CF500AU-6L X550 / CF500AU-6L X550 EPS / CF600 196S-B(X6) / CF600 196S-C / CF600-5 Rancher 600 UForce U6 / CF625-2 / CF625-2A / CF625-3 ZForce Z6 SSV Side-by-Side / CF625-6 ZForce Z6-EX SSV / CF625-B X600 / CF625-C 196S-B(X6) / CF625-C Terralander 625 X6 / CF625L / CF625L Long EFI / CF625S Short EFI / CF800-2 CForce 800 X8 /CF800-3 UForce U8 / NF 500 / Terracross 625 4X4 / X6 EFI / Z6 EFi / ZForce 800 EU167 / Terralander 500 CForce 500 / Rancher 500 UForce 500 / Terralander 625 CForce 600 / CF500-2A Long / CF500-A Short, GOES 520 /520 MAX / 625UTS / G520 Quad / G525 / G525 MAX / G625i / G625i MAX / G625i UTX, Hammerhead Titan 500 UTV (Off-Road), Journeyman Gladiator RX510 / Gladiator UTV 530 / Gladiator UTV630 EFI / Gladiator X5 / X5 EFI / Gladiator X6 / X6 EFI / Gladiator Z6, Linhai 500D / M550 EFI / M550L Europe EFI, Powermax Chase 500, Quadzilla RS6 Terrain / RS6 LWB / RS6 SWB / Terrain 500 / Z6 4x4, Chironex Komodo 500 / Spartan 500 / Spartan 600 EFI, Diamo Adventure 500 ATV, Explorer Atlas 500 / Atlas 500 2x4 COMPACT / Atlas 500 4X4 XL /Atlas 500 4x4 EDITION / Bazooka 625 4X4 /Everest 500 4X4 XL / Grison 625 4X4 Deluxe / Grumbler 500, XY Xingyang and XY Powersports XY500-S, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. Also applies to many Chinook ATV models.

Includes Part Numbers:

• CF188-070004, 0180-070004-0090 “Bolt M6X40”
• CF188-071001, 0180-071001 “Shaft, Oil Pump”
• CF188-071002, 0180-071002 “Rotor Cover”
• CF188-071005, 0180-071005 “Outer Rotor,Oil Pump”
• CF188-071006, 0180-071006 “Inner Rotor,Oil Pump”
• CF188-071003, 0180-071003 “Dowel Pin”
• CF188-071007, 0180-071007 “Straight Pin”
• CF188-071004, 0180-071004 “Oil Pump Housing”
• GB/T822/M5x20, 30129-050020420 “Screw M5X20”
• CF188-072000, 0180-072000 “Oil Strainer”
• 172MM-090008, 0110-090008-0030 “Bolt M6X14”
• CF188-071008, 0180-071008 “O-Ring 14X2.5”

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0180-071000, CF188-071000 “OIL PUMP” or “OIL PUMP SUB ASSY”
• GOES Part Number: 0180-071000 “OIL PUMP”
• Chironex Part Number: CF188-071000 “OIL PUMP”
• Powermax Part Number: CF188-071000 “OIL PUMP”
• Explorer Part Number: CF188-071000 “OIL PUMP”
• Hammerhead Part Number: CF188-071000 “OIL PUMP”
• Diamo Part Number: 08-038-460B “OIL PUMP”
• Quadzilla Part Number: 0180-071000 “OIL PUMP SUB ASSY” or “OIL PUMP”
• ATV Sweden Part Number: CF500M-15-B “OIL PUMP”
• Journeyman Part Number: 0180-071000 “OIL PUMP”
