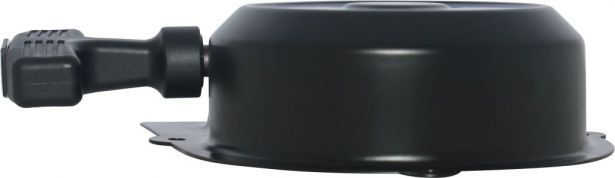

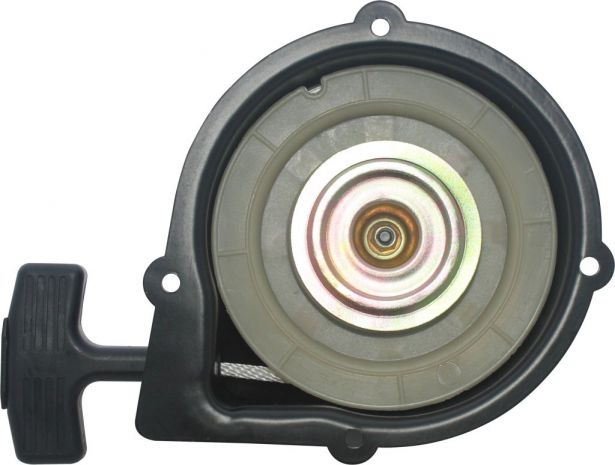

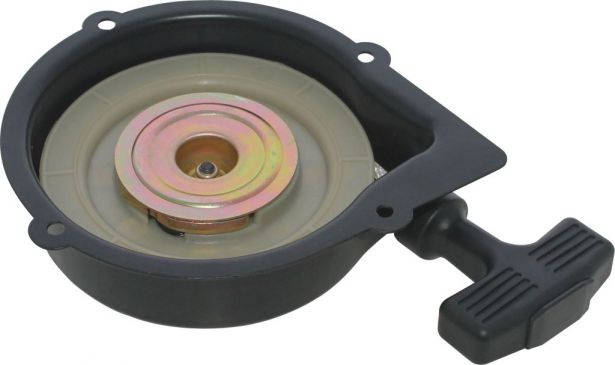

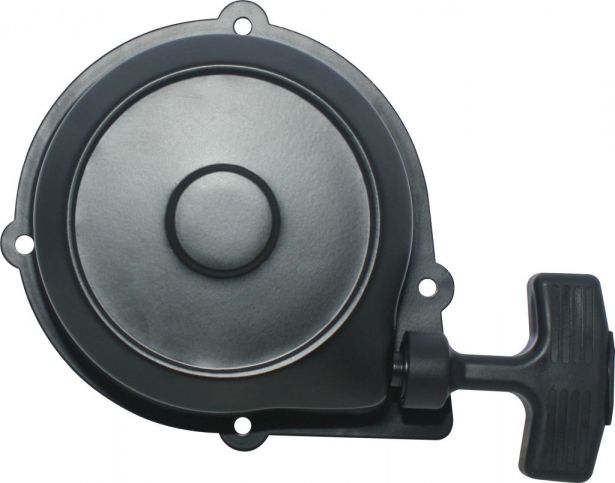

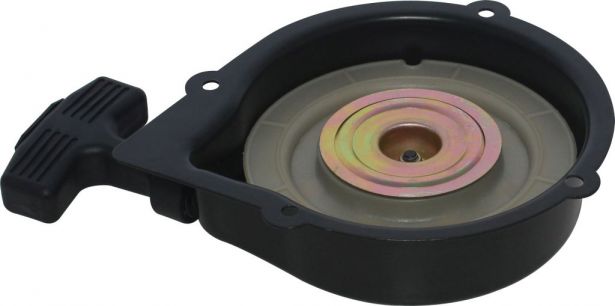

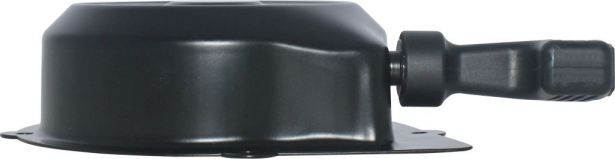

Pull Start - Recoil, 4 Bolts, Metal, CF Moto, XY Xingyang, Hammerhead, Chironex, 500cc, 600cc, 625cc

This genuine CF Moto Metal Pull Start (pull starter / recoil starter) is typically found in the Recoil Starter section of several part manuals. Commonly used for but not limited to 191R / 196S / CF188 / 500cc, 600cc, and 625cc engines. It is most popularly known for its use in CF Moto CF500 / CF500 Atlas / CF500 CF188 / CF500 CF188-B / CF500 CForce X5 / CF500 XL ONE / CF500-2 CForce X5 / CF500-2A CForce X5 / CF500-5 Rancher / CF500-5B X500 / CF500-5C / CF500-A CForce X5 / CF500-D CForce 500 / CF550 191R-X550 / CF600 196S-B(X6) / CF625-2 / CF625-2A / CF625-B CForce 625 / CF625-B X600 / CF625-C 196S-B(X6) / CF625-C Terralander 625 X6 / CForce 500 ONE / CForce 550 / Terracross 625 4X4 / X550 EPS / Terralander 500 CForce 500 / Terralander 625 CForce 600, Chironex Komodo 500 / Spartan 500 / Spartan EFI, Diamo Adventure 500 ATV, Explorer Atlas 500 / Atlas 500 2x4 COMPACT / Atlas 500 4X4 XL / Atlas 500 4x4 EDITION / Everest 500 4X4 XL / Grison 625 4X4 Deluxe, GOES 520 MAX / 520 UTX, Hammerhead Titan 500 UTV (Off-Road), Journeyman Gladiator RX510 / Gladiator X5 / X5-A Valex / Gladiator X520 / Gladiator X550 / Gladiator X6 / X6-A EFI, Powermax Chase 500, Quadzilla Terrain 500 / CForce 550 Terrain 550 EPS, WT Motors WT625 Siberian / Ricambi WT500 / WT500 Alaska / WT500 Alaska Quad /WT500 Ram, XY Powersports 500cc / 600cc, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

Approximate Dimensions:

• Diameter: 160mm (6.30”)
• Width: 55mm (2.17”)
• Mounting Holes: 155mm (6.10”) centre to centre across
• Mounting Holes Diameter: 6.7mm (0.26”)
• Number of Bolts: 4

Includes Part Numbers:

• CF188-092300, 0180-092300 “HANDLE”
• CF188-092201, 0180-092201 “ROPE”
• CF188-092220, 0180-092220 “STARTER HOUSING”
• CF188-092202, 0180-092202 “COIL SPRING”
• CF188-092210, 0180-092210 “SHEAVE DRUM”
• CF188-092205, 0180-092205 “SPRING CLAMP”
• CF188-092204, 0180-092204 “PAWL SPRING”
• CF188-092203, 0180-092203 “PAWL”
• CF188-092206, 0180-092206 “FRICTION PLATE”
• GB/T6187.1/M6, 30204-060810 “NUT M6-Zn.D”

Manufacturer Part Numbers:

• CF Moto Part Numbers: 0180-092200, CF188-092200 “RECOIL STARTER”
• GOES Part Number: 0180-092200 “RECOIL STARTER”
• Chironex Part Number: CF188-092200 “RECOIL STARTER”
• Hammerhead Part Number: CF188-092200 “RECOIL STARTER”
• Powermax Part Number: CF188-092200 “RECOIL STARTER”
• Diamo Part Number: 08-038-490A “RECOIL STARTER”
• WT Motors Part Number: QN5001134K “RECOIL STARTER”
• Explorer Part Number: CF188-092200 “RECOIL STARTER”
• GOES Part Number: CF188-092200 “RECOIL STARTER”
• Journeyman Part Number: 0180-092200 “RECOIL STARTER”
• Quadzilla Part Number: 0180-092200 “RECOIL STARTER SUB ASSY”
