Brake Line - Rear, XY500UE, XY600UE, Chironex

Brake Line - Rear, XY500UE, XY600UE, Chironex
  • Brake Line - Rear, XY500UE, XY600UE, Chironex
  • Brake Line - Rear, XY500UE, XY600UE, Chironex
  • Brake Line - Rear, XY500UE, XY600UE, Chironex
Product Number:
90A6502
Availability:
In Stock
Price:
$69.99 CAD


  Description

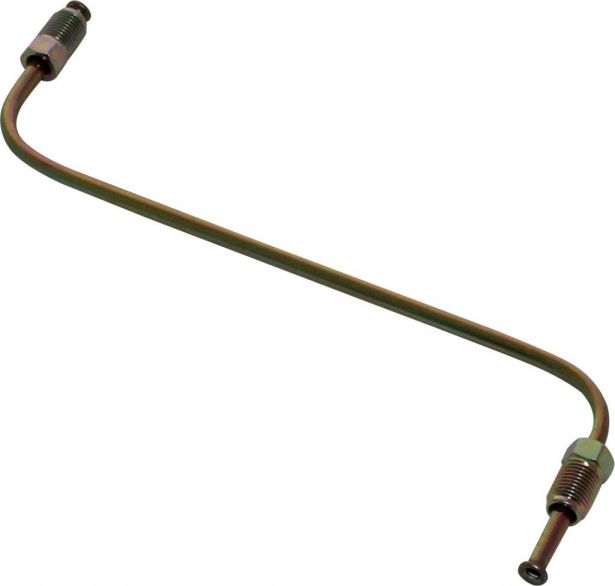

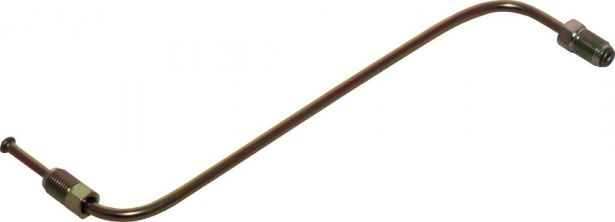

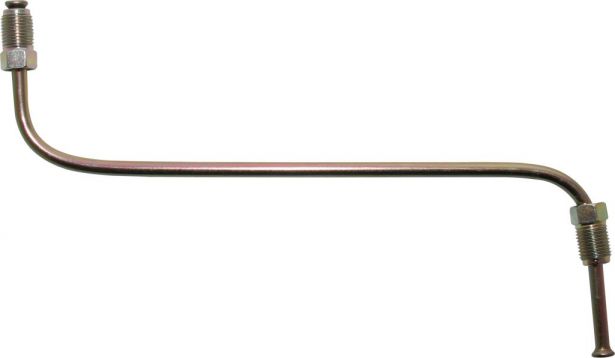

Rear brake line. This brake line is made from corrosion resistant steel and is commonly applicable for many big brand and lesser brand name machines from all over the world. Common format for UTVs in the 500cc to 1000cc plus range.

This particular model was primarily stocked as direct replacement rear brake line for Xinyang UTV models XY500UE, XY600UE, Chironex Spartan UTV Models "Spartan 500cc" and "Spartan 600cc".

Most commonly used for (but not limited to) Chironex Spartan 500cc UTVs (4x4/2x4 and similar variations), Chironex Spartan 600cc UTVs (4x4/2x4 and similar variations), CF Moto 500cc and 600cc UTVs (4x4/2x4 and similar variations), Xinyang 500cc XY500UE, Xinyang 600cc XY600UE ATVs and UTVs (4x4/2x4 and similar variations).

Common Chironex model name is primarily listed as "Chironex 500cc or 600cc Spartan XUV or UTV", Common listed Chironex Spartan rear brake line part number is 59514-5000 and is listed as "COPPER OIL TUBE, BRAKE" in their parts lists.

Common Xinyang model names consist of variations of "XY500UE" and "XY600UE", as well as a range of less formal names such as "Xinyang 500cc or 600cc UTV", "Xinyang 500cc or 600cc XUV", "Xinyang 500cc or 600cc ATV", "Xinyang 500cc/600cc 4x4/2x4" etc. Common listed Xinyang XY rear brake line part number is 59514-5000 and is listed as "COPPER OIL TUBE, BRAKE" in their parts lists.

Brake line has an approximate length of 26.5cm with a 4.8mm diameter.

Brake Line - Rear, XY500UE, XY600UE, Chironex
Brake Line - Rear, XY500UE, XY600UE, Chironex
Brake Line - Rear, XY500UE, XY600UE, Chironex

These categories serve as labels for sorting products. See our FAQ for more details.

Parts

Machine Type

Brakes

This part is not guaranteed to work with these machines. See our FAQ for more details.

Chironex

XY Xingyang & XY Powersports
