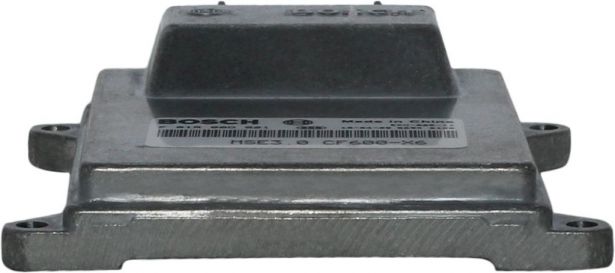

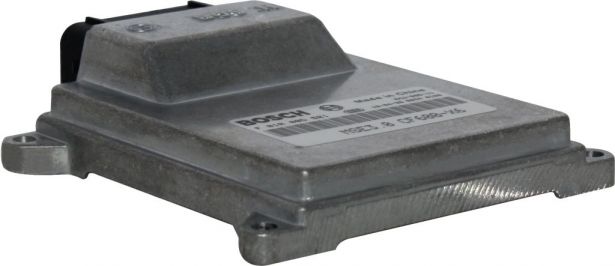

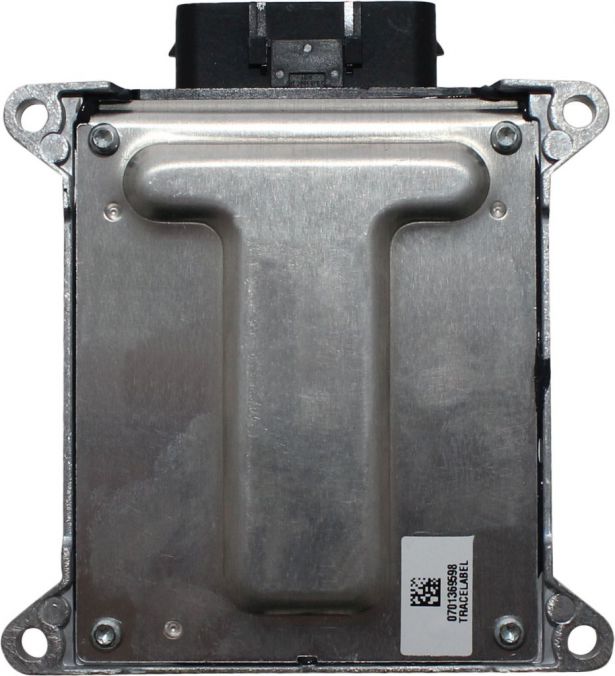

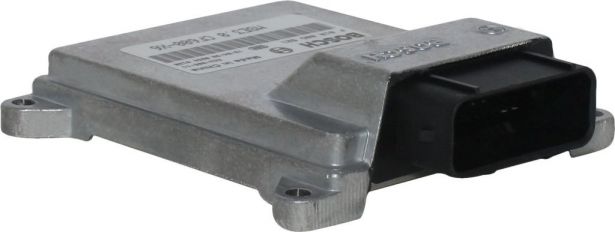

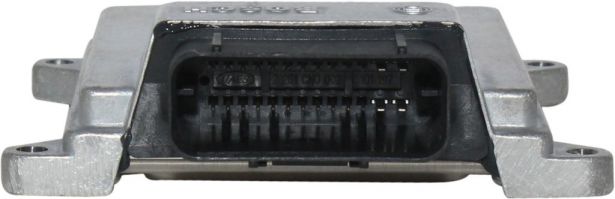

ECU - Controller, CF Moto, Bosch, Xingyang, Chironex, 196S, 600cc, 625cc

This ECU controller is typically found in the Electric System / EFI Systems / Electric Assy / Seat Assy / Denso Assembly KL500-B-170000 KL600-B-170000 section of several part manuals. Commonly used for but not limited to 196S / 600cc and 625cc engines. It is most popularly known for its use in CF Moto CF600-C / CF625-2 / CF625-2A / CF625-B / CF625-C 196S-B(X6) / CF625-C Terralander 625 X6, Chironex Spartan 600, GOES 625 UTS, XY Xingyang & XY Powersports XY500UE / XY600UE, Explorer Grison 625 4X4 Deluxe, Quadzilla RS6 Terrain / RS6 LWB / RS6 SWB, and Journeyman Gladiator X6 / X6-A EFI, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

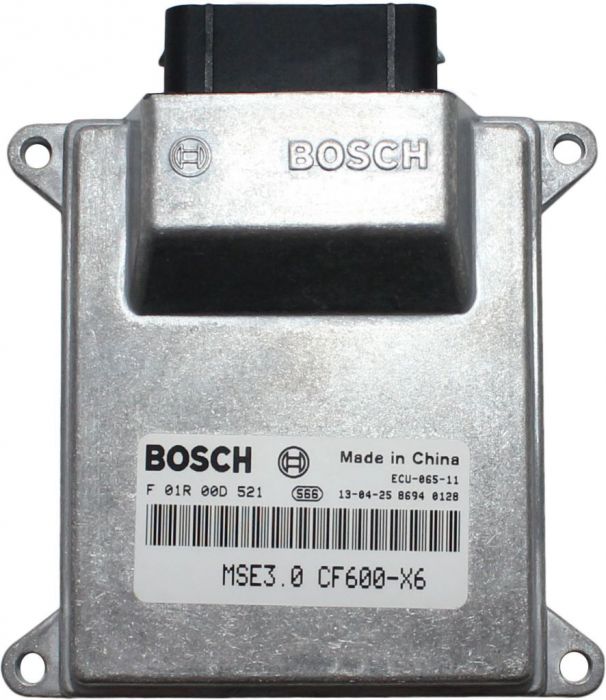

Bosch is an affiliate company listed in reference to the component’s module. Primary Bosch ECU controller (Specification: MSE3.0) part numbers are ECU-065-11 and F 01R 00D 521 with this batch generation stamp 13-04-25 8694 0128 (although a full range of batch stamps exist for this part).

Manufacturer Part Numbers:

• CF Moto Part Numbers: 060B-174000, 196S-B-174000 "ECU"
• Chironex Part Number: 196S-B-174000 "ECU"
• XY Xingyang & XY Powersports Part Number: 32900-6400 "ECU"
• GOES Part Number: 060B-174000 "ECU"
• Bosch Part Numbers: ECU-065-11, F 01R 00D 521
• Journeyman Part Number: 060B-174000 "ECU"
• Quadzilla Part Number: 060B-174000 "ECU"
• Explorer Part Number: 060B-174000 "ECU"
