ECU - Controller, CF Moto, Bosch, XY Xingyang, Chironex, CF188, 500cc, 625cc

This ECU controller / inboard computer is typically found in the Electric System / EFI Systems / Seat Assy / Denso Assembly KL500-B-170000 KL600-B-170000 section of several part manuals. Commonly used for but not limited to CF188 / 500cc, 600cc, 625cc engines. It is most popularly known for its use in CF Moto CF500 CF188 / CF500 CF188-B / CF500-5 Rancher / CF500-5A / CF500-5B X500 / CF500-5C / CF625-2A / CF625-3 ZForce Z6 / CF625-B CForce 625 / CF625-B X600, Chironex Spartan 500cc / Spartan 600 EFI / Spartan 600 XT EFI, Journeyman Gladiator X5 / X5-A Valex, Quadzilla RS6 LWB / RS6 LWB CF625-B / RS6 SWB / RS6 SWB CF625-B / RS6 Terrain / RS6 Terrain CF625-B / RS6 Terrain CF625-C, XY Xingyang & XY Powersports 500cc / XY500UE / XY600UE, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

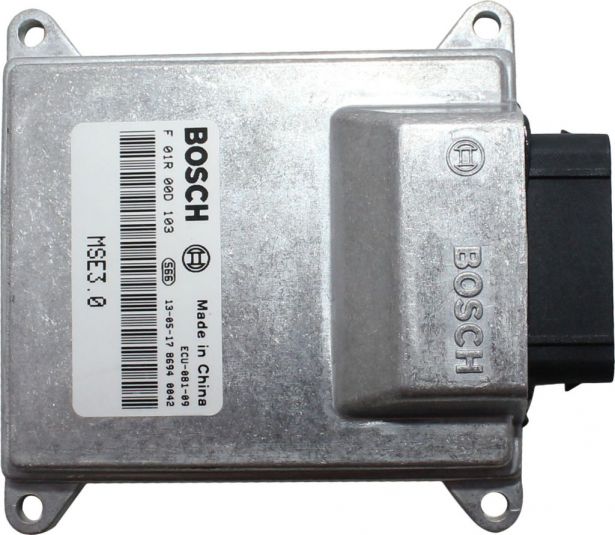

Bosch is an affiliate company listed in reference to the component’s module. Primary Bosch ECU controller (Specification: MSE3.0) part numbers are ECU-081-09 and F 01R 00D 103 with the batch generation in the photo stamped 13-05-17 8694 0042 (although a full range of batch stamps exist for this part).

Manufacturer Part Numbers:

• CF Moto Part Numbers: 018B-174000,CF188-B-174000 “ECU"
• Chironex Part Number: 32900-5400 "ECU CONTROL"
• Bosch Part Numbers: ECU-081-09, F 01R 00D 103
• XY Xingyang & XY Powersports Part Number: 32900-5400 "ECU"
• Journeyman Part Number: 018B-174000 "ECU"
• Quadzilla Part Number: 018B-174000 "ECU"
• Alternate / Modernized Part Number: 018B-174000-10000
