Ignition Coil - High Voltage Coil, Bosch, CF Moto, XY Xingyang, Chironex, 191R, 196S, CF188, 400cc, 500cc, 600cc, 625cc, 1000cc

This high voltage / ignition coil is typically found in the EFI Systems / Electrical System (EFI) / Seat Assy section of several part manuals. Commonly used for but not limited to 196S / CF188 / 191R / 400cc, 500cc, 600cc, 625cc, and 1000cc engines. It is most popularly known for its use in CF Moto 191R / 196S-B / 196S-B(X6) / CF500 CF188 / CF500 CF188-B / 625L / CF1000 UTR-3 / CF1000ATR CForce 1000 ATV / CF1000AU CForce 1000 ATV / CF1000UTR-2 ZForce Z1000-EX SSV / CF150-3A CF150NK / CF400ATR-2L CForce 450L / CF400ATR-L / CF400AU CForce 450 X400 / CF400AU-A CForce 450S ATV / CF400AU-B CForce 450L ATV / CF400AU-L CForce 450L ATV / CF450 ONE Euro 2 ATV / CF450L Long EFI / CF500-5A / CF500-5B X500 / CF500-5C / CF500ATR / CF500ATR-2L CForce 550 / CF500ATR-2S CForce 550 / CF500ATR-3 CForce 550 / CF500ATR-A CForce 550 / CF500AU-6L CForce 550 / CF500AU-6L X550 / CF500AU-6L X550 EPS / CF500AU-7A CForce 550 / CF500AU-7C CForce 550 / CF500AU-7L CForce 550 / CF500AU-7S X500 / CF500AU-7S CForce 520 EPS / CF500AU-7S CForce 550 / CF500AU-B / CF500US ZForce 550 Z5 / CF500US-EX ZForce 550 Z5-EX / CF500UTR ZForce 550 Z5 / CF500UTR-2 UForce 550 EPS / CF500UTR-2 UForce U500 U5 UTR / CF500UU UForce U550 U5 / CF600 196S-B(X6) / CF600-3 ZForce Z6 / CF600-5 UForce U6 / CF600-6 ZForce Z6-EX / CF600ATR-L / CF600ATR-L CForce 600 X6 ATV / CF600ATR-LT 3b / CF600AU-3L / CF600AU-L / CF600AU-L CForce EPS / CF625-2 / CF625-2A / CF625-3 ZForce Z6 SSV Side-by-Side / CF625-6 ZForce Z6-EX / CF625-B CForce 625 / CF625-B X600 / CF625-C 196S-B(X6) / CF625-C Terralander 625 X6 / CF625L Long EFI / CF625S Short EFI / CForce 1000 DLX EPS LOF / CForce 1000 EPS (X10 EPS) / CForce 450 L7E / CForce 450 ONE EPS / CForce 450 ONE Euro 2 / CForce 450 XL EPS / CForce 450 XL Euro 2 / CForce 450 XL Euro 4 / CForce 520L ATV / CForce 520S / CForce 520S Red Line LOF / CForce 550 / CForce 550 DLX EPS LOF Adventure Edition / CForce 600 EPS LOF Anniversary Edition / CForce 820 XL DLX EPS LOF Sunshine Edition / Terracross 625 4X4 / UForce 1000 EPS (U10-EPS) / UForce 550 DLX EU167 / X5 HO EPS / Z10 EPS / Z6 EFI / ZForce 1000 EPS LOF, Chironex Spartan 500 EFI / Spartan 600 XT EFI, Access Motor AMX 6.46 ATV / AMX 8.57 ATV, Explorer Bazooka 625 4X4 / Grison 625 4X4 Deluxe, GIO Viper, GOES 625UTS / 625i X6 Max / 725i Magnum / Cobalt 550i / Cobalt 550i MAX / G625i / G625i MAX / 625i UTX / Iron 450i / Iron 450i MAX, Bronco ATVs, ATV Sweden, Journeyman Gladiator X1000 / Gladiator X1000 Euro4 / Gladiator X1000 T3b / Gladiator X450 / Gladiator X5 / X5-A Valex ATV / Gladiator X520 / Gladiator X550 / Gladiator X6 / X6-A EFI / Gladiator X600 / Gladiator X600 Euro4 / Gladiator X600 T3b / Gladiator Z6 / Gladiator UTV630, Triton Defcon 700, XY Xingyang & XY Powersports X500UE / XY600UE, Xiali N3+ / OBD 3GA2, A+ / Xiali 376, Geely Auto (Geely Automotive), Chery A1 Hatchback Type (1082ccv SQR472 engine) as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

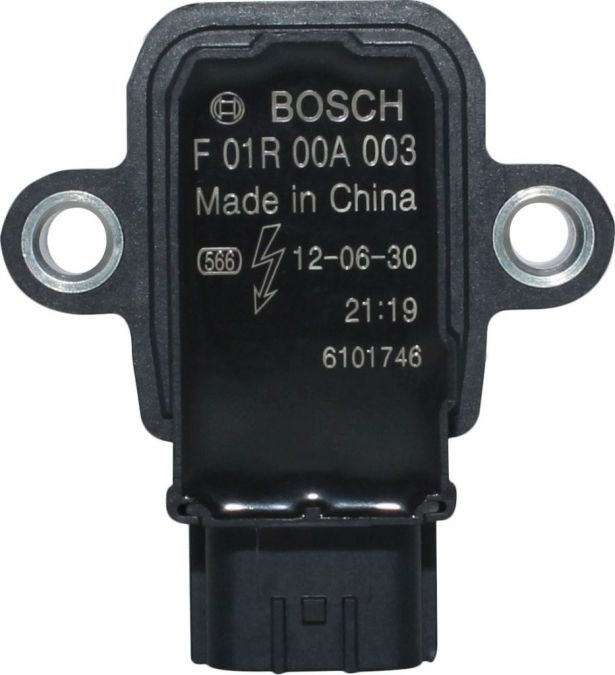

Bosch is an affiliate company listed in reference to the component’s module. Primary Bosch high voltage ignition coil part number is F 01R 00A 003 with this batch generation stamp 13-04-13 6100636 (although a full range of batch stamps exist for this part).

Manufacturer Part Numbers:

• CF Moto Part Numbers: 018B-178000, CF188-B-178000 “IGNITION COIL”
• Bosch Part Number: F 01R 00A 003, F01R00A003
• Chironex Part Number: 33400-5400 “HIGH VOLTAGE COIL”
• XY Xingyang & XY Powersports Part Number: 33400-5400 “HIGH VOLTAGE COIL”
• GOES Part Number: 018B-178000 “IGNITION COIL”
• Quadzilla Part Number: 018B-178000 “IGNITION COIL”
• Journeyman Part Number: 018B-178000 “IGNITION COIL”
• Bronco Part Number: AT-01681
• ATV Sweden Part Number: X7M-27-09 “IGNITION COIL”
