Product Number:
90A2080
Availability:
Out of Stock
Price:
$199.99 CAD


  Description

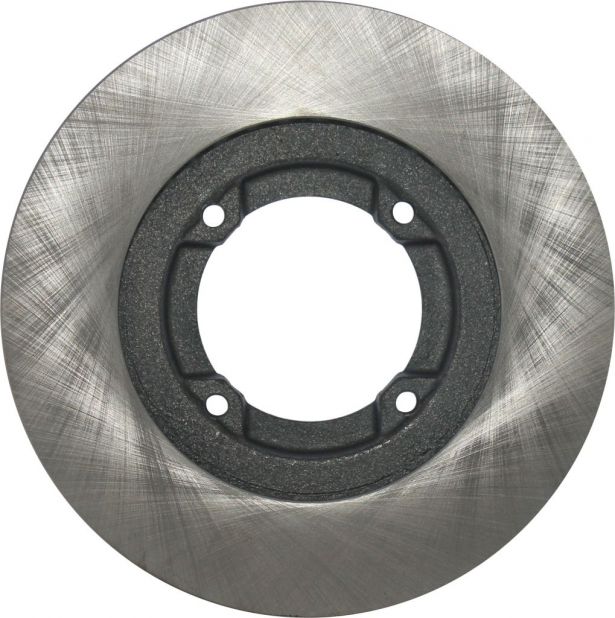

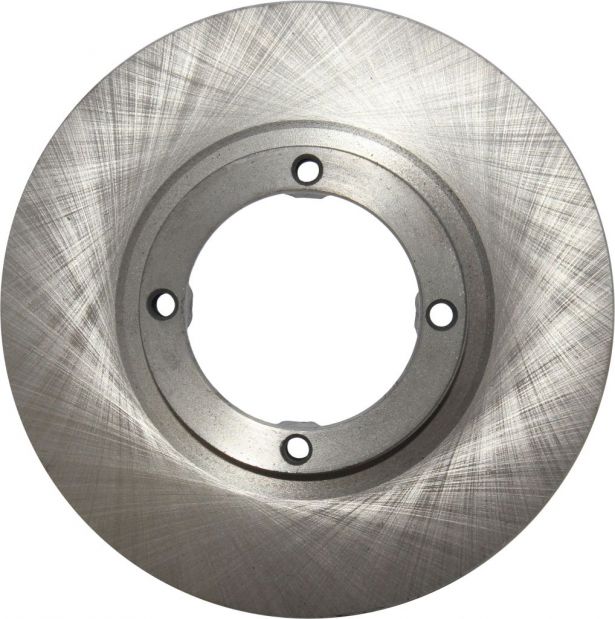

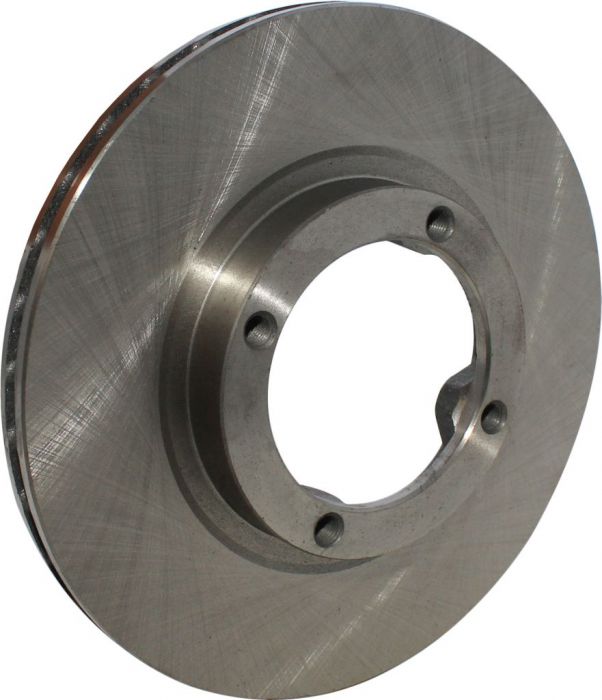

This rear disc brake rotor is made from hardened, corrosion resistant steel. This disc brake is most commonly used for (but not limited to) Chironex Spartan 500cc and 600cc UTVs (4x4/2x4 and similar variations), Xinyang 500cc to 600cc ATVs and UTVs (4x4/2x4 and similar variations).

Common Chironex model name is primarily listed as "Chironex 500cc Spartan XUV or UTV" and "Chironex 600cc Spartan XUV or UTV". Common listed Chironex Spartan rear brake rotor / rear brake disc part number is 69211-5000 and listed in the parts manuals as "REAR BRAKE DISC".

Common Xinyang model names consist of variations of "XY500UE" and "XY600UE", as well as a range of less formal names such as "Xinyang 500cc / 600cc UTV", "Xinyang 500cc / 600cc XUV", "Xinyang 500cc / 600cc ATV", "Xinyang 500cc / 600cc 4x4/2x4" etc. Common listed Xinyang XY brake rotor part number is 69211-5000 and listed in the parts manuals as "REAR BRAKE DISC".

Approximate dimensions:
  • Outer Diameter: 230mm
  • Centre Hole: 85mm
  • Thickness: 16mm
  • Total Thickness: 35mm
  • Mounting Holes: 10mm
  • Mounting Hole Spacing (across): 102mm (centre to centre)
  • Mounting Hole Spacing (side by side): 73mm (centre to centre)
Brake Rotor - 4 Bolt 230mm 85mm Brake Disc, Rear, XY500UE, XY600UE, Chironex
Brake Rotor - 4 Bolt 230mm 85mm Brake Disc, Rear, XY500UE, XY600UE, Chironex
Brake Rotor - 4 Bolt 230mm 85mm Brake Disc, Rear, XY500UE, XY600UE, Chironex
Brake Rotor - 4 Bolt 230mm 85mm Brake Disc, Rear, XY500UE, XY600UE, Chironex
Product Specifications
Centre Hole 85 mm
Mounting Hole Spacing (across) 102mm (centre to centre)
Mounting Hole Spacing (side by side) 73mm (centre to centre)
Mounting Holes 10
Outer Diameter 230 mm
Thickness 16 mm
Total Thickness 35 mm
