Sprocket - Rear, 428 Chain, 36 Tooth
Description

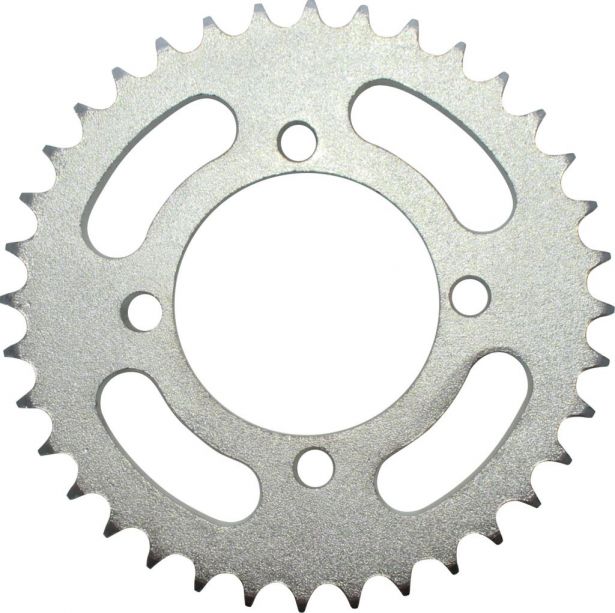

- This 36 tooth rear sprocket is made from hardened, corrosion resistant steel. Commonly (though not exclusively) used for 50cc to 500cc dirt bikes, ATVs, go karts and buggies. Approximate dimensions:
- Outside Diameter: 150mm
- Centre Hole Diameter: 64.1mm
- Mounting Hole (centre-centre): 56mm
- Mounting Hole (centre-centre diagonal): 80mm
- Bolt Hole: 8.8mm
- Thickness: 6.9mm
Specifications
| Product Specifications | ||
|---|---|---|
| Bolt Hole | 8.8 mm | |
| Centre Hole Diameter | 64.1 mm | |
| Mounting Hole (centre-centre diagonal) | 80 mm | |
| Mounting Hole (centre-centre) | 56 mm | |
| Outside Diameter | 150 mm | |
| Thickness | 6.9 mm | |
