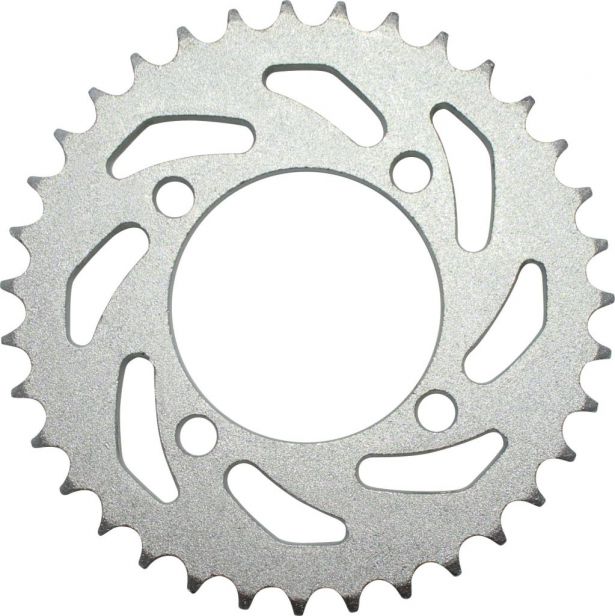

Sprocket - Rear, 428 Chain, 35 Tooth
Description
- This 35 tooth, 428 chain rear sprocket is made from hardened, corrosion resistant steel. Commonly (though not exclusively) used for 50cc to 500cc dirt bikes, ATVs, go karts and buggies. Approximate dimensions:
- Outside Diameter: 146mm
- Centre Hole Diameter: 64mm
- Mounting Hole (centre-centre): 56mm
- Mounting Hole (centre-centre diagonal): 80mm
- Bolt Hole: 8.6mm
- Thickness: 7.2mm
Specifications
Product Specifications | ||
---|---|---|
Bolt Hole | 8.6 mm | |
Centre Hole Diameter | 64 mm | |
Mounting Hole (centre-centre diagonal) | 80 mm | |
Mounting Hole (centre-centre) | 56 mm | |
Outside Diameter | 146 mm | |
Thickness | 7.2 mm |
