Sprocket - Rear, 420 Chain, 30 Tooth

Sprocket - Rear, 420 Chain, 30 Tooth
  • Sprocket - Rear, 420 Chain, 30 Tooth
  • Sprocket - Rear, 420 Chain, 30 Tooth
Product Number:
20A1020
Availability:
Out of Stock
Price:
$34.99 CAD


  Description

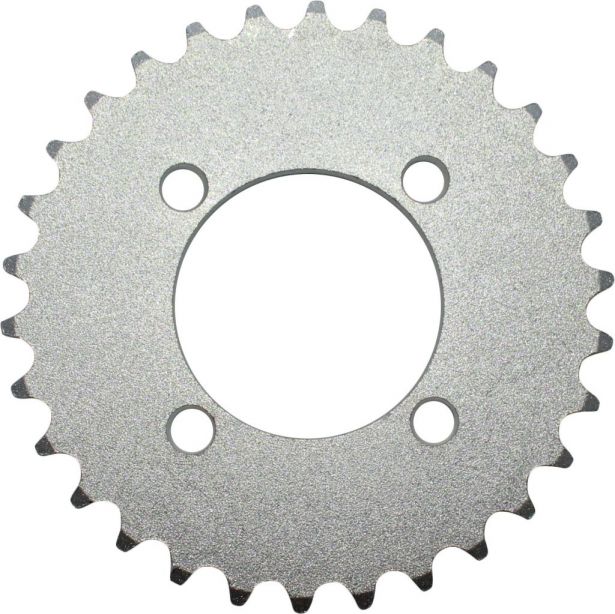

This 30 tooth rear sprocket is made from hardened, corrosion resistant steel. Commonly (though not exclusively) used for 50cc to 500cc dirt bikes, ATVs, go karts and buggies. Approximate dimensions:
  • Outside Diameter: 126mm
  • Centre Hole Diameter: 54mm
  • Mounting Hole (centre-centre): 50mm
  • Mounting Hole (centre-centre diagonal): 70mm
  • Bolt Hole: 8.6mm
  • Thickness: 5.9mm
Sprocket - Rear, 420 Chain, 30 Tooth
Sprocket - Rear, 420 Chain, 30 Tooth
Product Specifications
Bolt Hole 8.6 mm
Centre Hole Diameter 54 mm
Mounting Hole (centre-centre diagonal) 70 mm
Mounting Hole (centre-centre) 50 mm
Outside Diameter 126 mm
Thickness 5.9 mm
